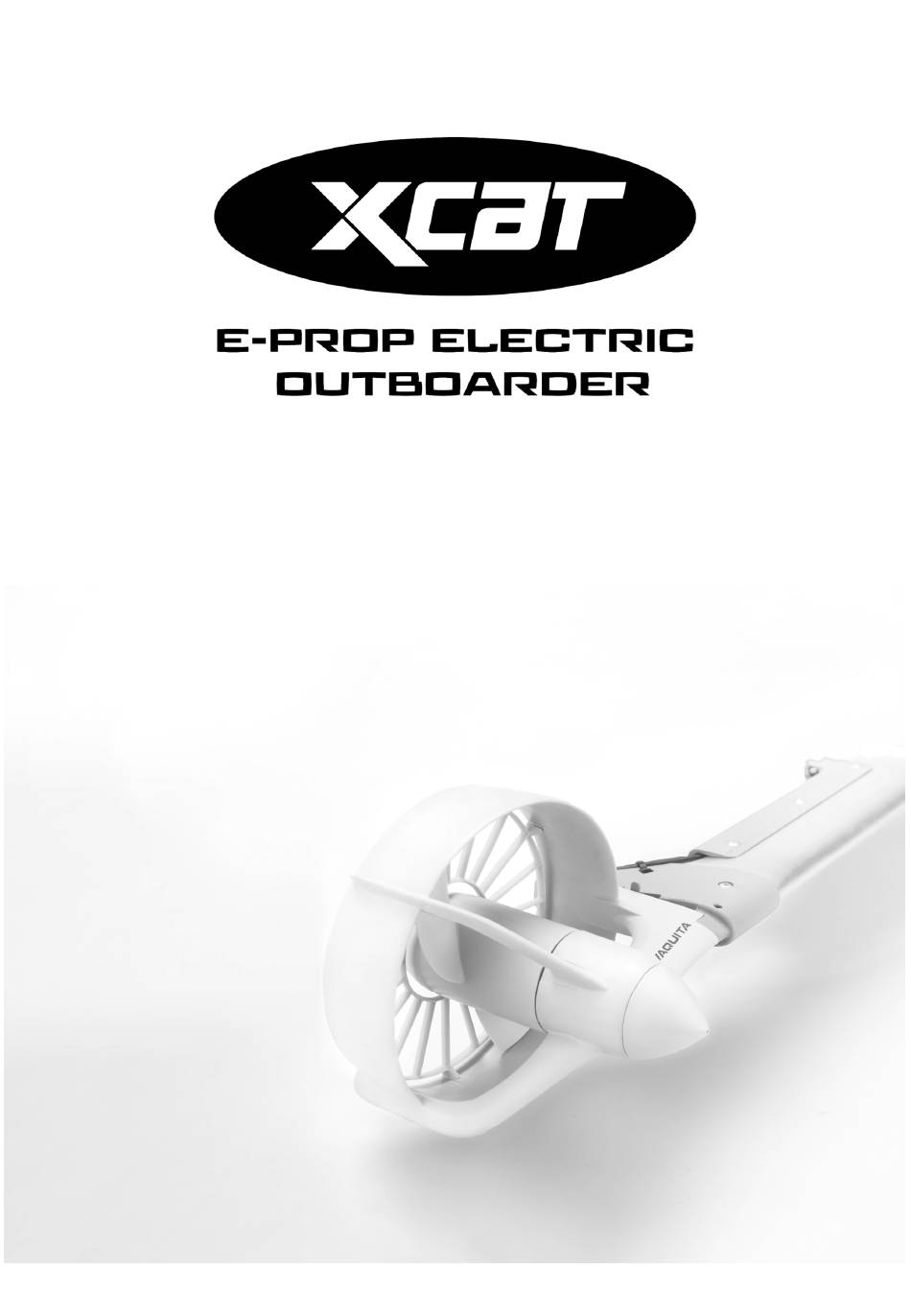

USER MANUAL

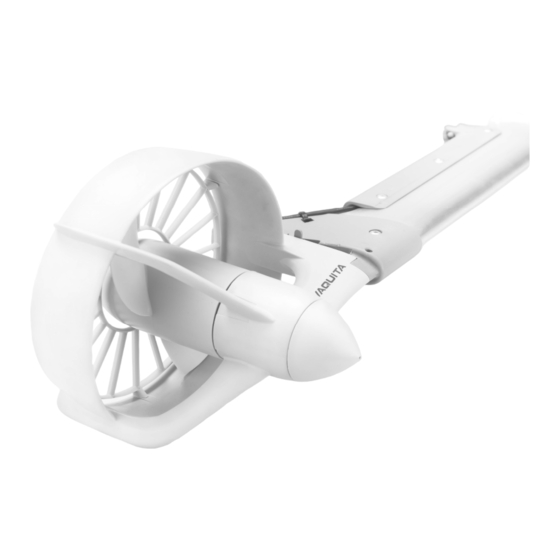

XCAT eProp Outboarder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eProp and is the answer not in the manual?

Questions and answers

Summary of Contents for XCAT eProp

  • Page 1 USER MANUAL XCAT eProp Outboarder...
  • Page 2 Acknowledgements Thank you for choosing to purchase the eProp outboarder. In addition to the sail, the XCAT sailing catamaran can be powered by the RowMotion® rowing system, the RowVista® forward rowing system or the eProp outboarder. If you have any questions, suggestions or problems, please do not hesitate to contact us.
  • Page 3 2 and Figure 3 indicate the position of serial numbers for VAQUITA Remote Control and VAQUITA Motor. The above three parts have different serial numbers. Please record all the three serial numbers for access to maintenance or other after-sale services. Page 3 User Manual XCAT eProp Edition: 02-2023...

  • Page 4: Table Of Contents

    Installation ....................13 3.1. Fixing eProp Battery ................ 13 3.1.1. Connecting battery, holder and remote control ......13 3.1.2. Sliding the battery unit onto the XCAT ........... 14 3.2. Installing the eProp outboarder on the XCAT ......... 15 3.3. Connecting Battery to Motor ............15 3.4.
  • Page 5 4.6. Pairing Remote Control with Battery ..........29 Detaching eProp-Motor ................. 30 Transport and Storage ................30 6.1. Transport ..................30 6.2. Storage .................... 31 Routine Maintenance ................31 Page 5 User Manual XCAT eProp Edition: 02-2023...

  • Page 6: Important Safety Instructions

    Check the status and function of VAQUITA before use and make sure all components are in good condition. • Make sure the VAQUITA Motor is securely mounted on the XCAT before operation. • Make sure the remote control works well by wireless connection.
  • Page 7 First, rinse the motor thoroughly with fresh water. The motor must then be run at low speed in a container of fresh water to prevent salt deposits on the moving parts of the drive. Salt incrustations can cause damage to the motor! Page 7 User Manual XCAT eProp Edition: 02-2023...

  • Page 8: Product Overview

    2. Product Overview XCAT eProp outboard is an electric propulsion kit for the XCAT sailing catamaran. The product mainly consists of the bracket with the motor, VAQUITA battery and VAQUITA remote control. This small but powerful propulsion system can run at full speed for more than an hour and supports you perfectly, whether in a lull in the wind or as a support during a tack.
  • Page 9 Battery bag 1 piece Outboarder bag 1 piece eProp User Manual, VAQUITA User Manual, Quick Start, 1 set Warranty Card, Quality Certificate & Lanyard Save the original package for transport and storage. Page 9 User Manual XCAT eProp Edition: 02-2023...

  • Page 10: Parts And Diagrams

    2.2. Parts and Diagrams Rope Handle Rope Cleat Power Cable Locking Pin Hand Knob Motor Module Page 10 User Manual XCAT eProp Edition: 02-2023...

  • Page 11: Technical Data

    Dimension motor incl. bracket 600 mm x 180 mm x 170 mm / 23.6” x 7.1” x 6.7” Propeller diameter 150 mm / 5.9” Propeller pitch 115 mm / 4.5” Maximum rotation speed 1800 rpm Page 11 User Manual XCAT eProp Edition: 02-2023...
  • Page 12 8 km / ca. 70 minutes Full throttle ca. 20 km / ca. 5 hours Battery performance is dependent on many external factors, such as operating environment, temperature, current, wind, etc. Page 12 User Manual XCAT eProp Edition: 02-2023...

  • Page 13: Installation

    3. Installation The XCAT eProp outboard is intended for use on an XCAT sailing catamaran. 3.1. Fixing eProp Battery 3.1.1. Connecting battery, holder and remote control First thread the Velcro strap through the two slots on the side of the battery holder.

  • Page 14: Sliding The Battery Unit Onto The Xcat

    3.1.2. Sliding the battery unit onto the XCAT Slide the battery unit from behind onto the center beam of the XCAT. To do this, the rudder must not yet be mounted on the XCAT. If the rudder is already attached, it must be removed again.

  • Page 15: Installing The Eprop Outboarder On The Xcat

    Use the hand knob to clamp the eProp to the center beam. 3.3. Connecting Battery to Motor After the eProp outboard and the battery are mounted on the XCAT, you can connect the motor to the battery. Insert the plug of the motor cable into the charge/discharge port of the VAQUITA battery and fix the plug.

  • Page 16: Attaching Vaquita Remote Control

    Make sure the band is tightly bound if you wear it or attach it to a paddle to avoid it falling into water. If VAQUITA Remote Control falls into water by accident, a wireless communication failure may occur and VAQUITA Motor will stop rotation at once. Page 16 User Manual XCAT eProp Edition: 02-2023...

  • Page 17: Hole For Locking Pin

    3.5. Hole for locking pin To fix the eProp drive, there is a lateral hole on the center beam as standard, into which the locking pin can engage. This hole may be missing on older XCAT models. To be able to use the eProp on older XCAT models, you can make this hole yourself afterwards.

  • Page 18: Operation

    4.2. Driving operation When driving with the eProp, the XCAT is steered via the rudder. The eProp is only suitable for driving forward. It does not have a reverse gear. To prevent damage, the motor automatically folds up when it encounters an obstacle.

  • Page 19: Swing Up

    If the eProp is no longer in use, you want to land or you discover a possible obstacle in the water, you must swing the eProp outboard up out of the water.

  • Page 20: Using The Battery

    ☆ ☆ ☆ ☆ 0%~20% ● 20%~40% ● ● Discharging 40%~60% ● ● ● 60%~80% ● ● ● ● 80%~100% ● ☆ Note: refers to steady light, refers to flashing light (1Hz). Page 20 User Manual XCAT eProp Edition: 02-2023...
  • Page 21 If error 1 occurs, L0 and L1 flash alternately with L2 and L3. If an error occurs in a non-charging state, the LEDs will display the battery level (for 3s) and the error (for 3s) alternately. Page 21 User Manual XCAT eProp Edition: 02-2023...

  • Page 22: Switching On/Off Vaquita Battery

    Error 4  Error 3  Error 1  Error 2. Error 4 VAQUITA Battery over-temperature may occur during charging. If the error persists, please consult the authorized dealers for help. 4.4.2. Switching On/Off VAQUITA Battery Power Button Page 22 User Manual XCAT eProp Edition: 02-2023...
  • Page 23 If communication breaks (eg. the remote control is turned off), the battery LEDs will flash in pair. When communication resumes, the LEDs will display real-time battery level. Page 23 User Manual XCAT eProp Edition: 02-2023...

  • Page 24: Charging The Battery

    1) Power off the battery, disconnect the battery power cable with the motor. Remove the battery off the XCAT and take it to a dry and safe place. 2) Plug the output cable of VAQUITA Charger into the charge/discharge port of VAQUITA Battery and tighten the connector.

  • Page 25: Use Of Vaquita Remote Control

    Before switching on the remote control, please check to - make sure the throttle is at zero position. - make sure the motor is securely attached to the SUP board or kayak. LED On/Off Button Throttle Zero Position Page 25 User Manual XCAT eProp Edition: 02-2023...
  • Page 26 If the remote control is switched on but without any operation for 30 minutes, it will switch off automatically. Press the on/off button on the VAQUITA remote control to stop the motor immediately in emergency situations. Never get close to the running propeller to avoid injury. Page 26 User Manual XCAT eProp Edition: 02-2023...

  • Page 27: Controlling The Motor

    (throttle not at zero position). Restart after stop: - In normal conditions, just slide the throttle forward to speed up. - For emergency stop, first slide the throttle to zero position then restart. Page 27 User Manual XCAT eProp Edition: 02-2023...

  • Page 28: Replacing Battery For Remote Control

    Screw the battery cover counterclockwise (from ① to ②) to unlock. Step1: Step2: Open the battery cover and replace a new button cell with the "+" side up. Step3: Screw the cell cover clockwise to lock. Cell Cover Button Cell Page 28 User Manual XCAT eProp Edition: 02-2023...

  • Page 29: Pairing Remote Control With Battery

    Press and hold the remote's on/off button for 10s until it issues two beeps (to indicate the remote control has entered pairing mode). Release the button and you'll hear another beep to indicate pairing succeeds. Do not release the button within 10s, otherwise pairing fails. Page 29 User Manual XCAT eProp Edition: 02-2023...

  • Page 30: Detaching Eprop-Motor

    5. Detaching eProp-Motor After using the eProp, follow the steps below to remove the VAQUITA motor from the XCAT. 1) Long press and hold the on/off switch to turn off the battery. 2) Disconnect the connection between the VAQUITA motor and the VAQUITA battery.

  • Page 31: Storage

    Once a fault occurs, deal with the problem in time to avoid any further damage. If necessary, consult the ePropulsion authorized dealer for repair or parts replacement. • Always follow the instructions in this user manual. Page 31 User Manual XCAT eProp Edition: 02-2023...
  • Page 32 Row&Sail GmbH Gewerbezeile 9 4040 Lichtenberg/Linz Austria Tel.: +43 (0) 7239 / 20275 Fax: +43 (0) 7239 / 20275 – 30 office@rowandsail.com www.x-cat.com Copyright © Row&Sail GmbH - 02-2023 Page 32 User Manual XCAT eProp Edition: 02-2023...
