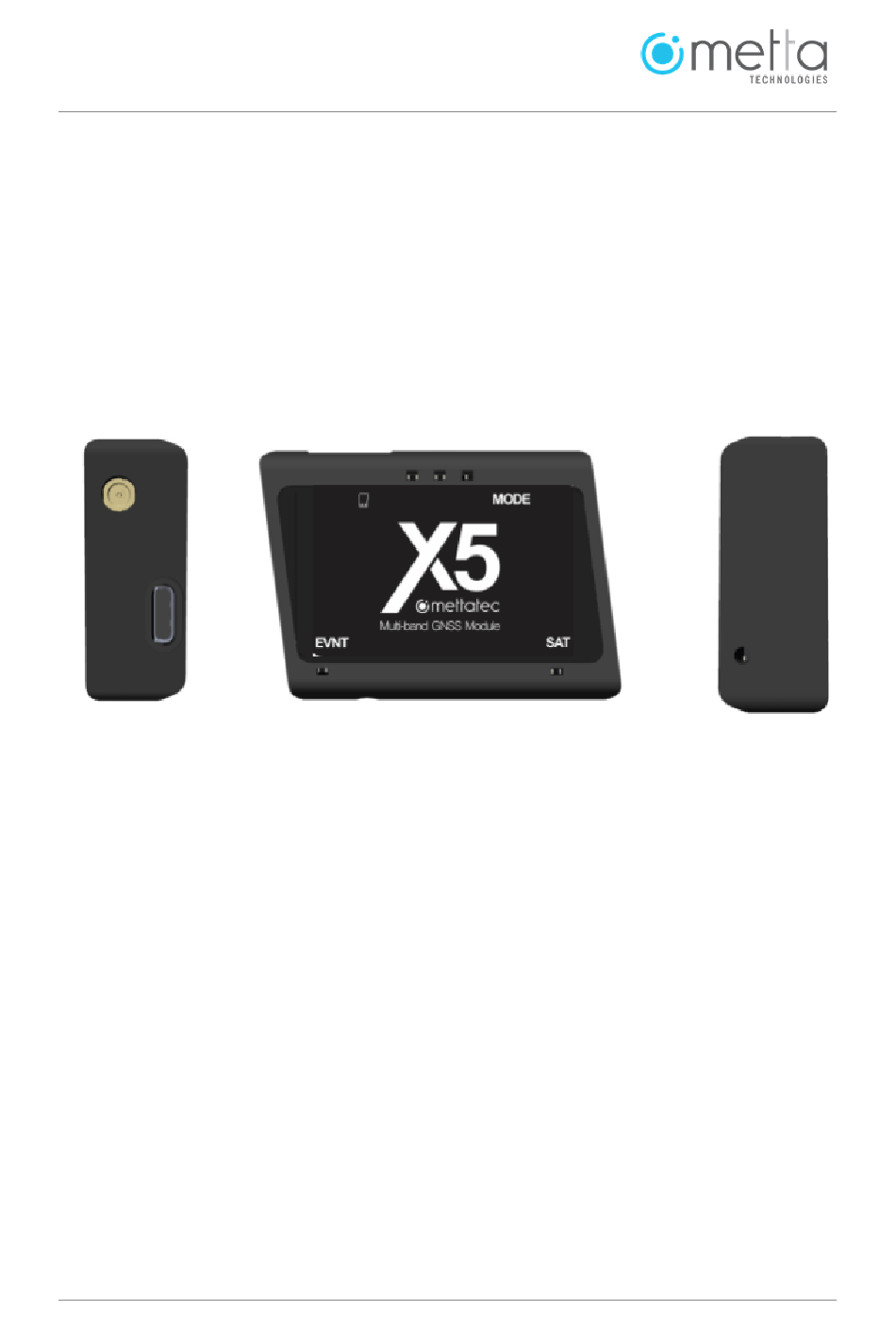

METTA X5 PPK Quick Guide v2.9
X5 GNSS
PPK GNSS Module for AERIAL Mapping
Positioning with Centimeter Accuracy in PPK for Phantom 4 Pro v1/v2 and Advance
with less GCPs.
1. Place the X5 PPK on the left side of the Drone.
2. Put the Light Sensor on the left front motor of the Drone
3. Connect the microUSB cable into the Drone's microSD slot
4. Turn on the Drone
5. Wait for the Red LED to stay solid
6. Execute your Flight Mission
7. Download the UBX file from the microSD card
8. Process Logs and get a file Photos with Geotags
1
Advertisement
Table of Contents
Summary of Contents for METTA X5 GNSS
- Page 1 METTA X5 PPK Quick Guide v2.9 X5 GNSS PPK GNSS Module for AERIAL Mapping Positioning with Centimeter Accuracy in PPK for Phantom 4 Pro v1/v2 and Advance with less GCPs. 1. Place the X5 PPK on the left side of the Drone.
- Page 2 GNSS base station on the ground. Comes with METTA X5 App A user-friendly software for data collection that is available for Android. Supports several coordinate systems. With the METTA X5 App, you can control all the features of X5 GNSS receivers. Ports and LEDs description MicroSD card slot.
- Page 3 ‘exit’ button Can be used only with the Metta X5 App or accessing by using a web browser with the address http://192.168.4.1 METTATEC FIRMWARE DEVELOPMENT This Datasheet is compatible with host Firmware version v2.9 and ZED-F9P v1.12 and v1.32 FIRMWARE UPDATE 1.
