Whalen Bayside CSC3N1C-72-5 Manual

3-in-1 tv console

Hide thumbs

page of 35

/ 35
Bookmarks

Quick Links

Download this manual

商品號:

ITM. /

1653368

CSC3N1C-72-5

美國專利號:

U.S. Patent /

8,622,005

3-in-1

TV Console

三合一電視櫃

Customer Service: 1-877-494-2536 (English, French and Spanish)

Pacific Standard Time: 8:30 am - 4:30 pm, Monday to Friday

(Phone number is not valid in Mexico, toll-free in U.S.A. and Canada only)

Or visit our website www.baysidefurnishings.com

For customer service outside of North America,

please e-mail your request to parts@baysidefurnishings.com

客服電話: 1-877-494-2536

太平洋標準時間: 上午 8:30 – 下午 4:30, 週一至週五

(僅限在美國和加拿大)

或參閱我們的網站 www.baysidefurnishings.com

針對北美以外的客服，把您的需求發電子郵件至

parts@baysidefurnishings.com

IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY

仔細閱讀並保留本說明書以備參考

Date / 日期: 2023-01-12

Rev. / 版本 0001-A

Need help?

Do you have a question about the Bayside CSC3N1C-72-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whalen Bayside CSC3N1C-72-5

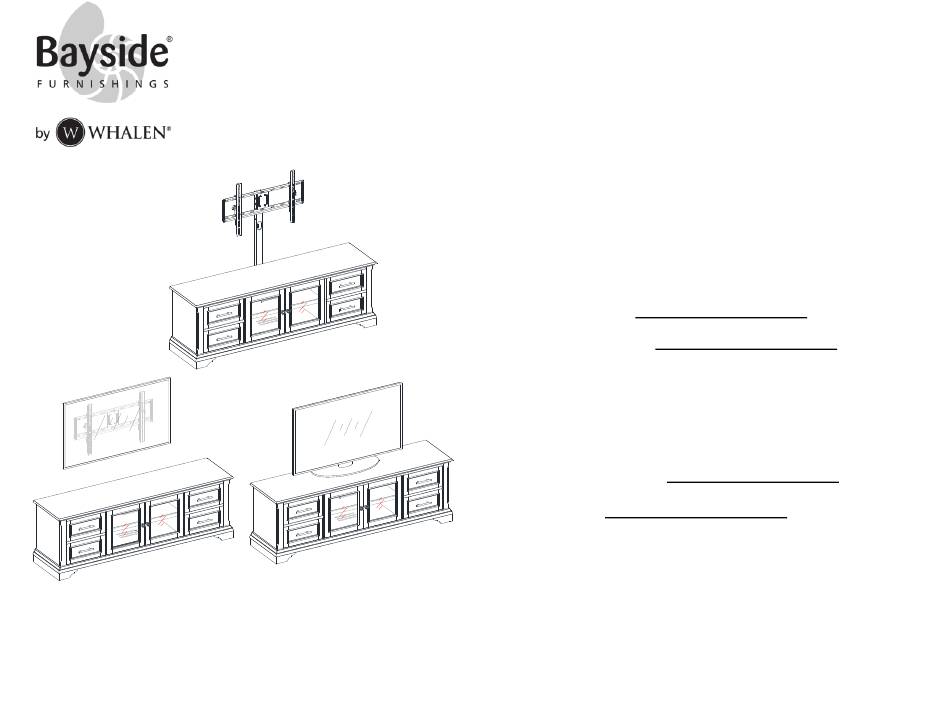

Page 1 商品號: ITM. / 1653368 CSC3N1C-72-5 美國專利號: U.S. Patent / 8,622,005 3-in-1 TV Console 三合一電視櫃 Customer Service: 1-877-494-2536 (English, French and Spanish) Pacific Standard Time: 8:30 am - 4:30 pm, Monday to Friday (Phone number is not valid in Mexico, toll-free in U.S.A. and Canada only) Or visit our website www.baysidefurnishings.com For customer service outside of North America, please e-mail your request to parts@baysidefurnishings.com...
Page 3 G E N E R A L I N F O R M A T I O N / 基本說明  The product is not recommended for outdoor use.  Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. ...
Page 4 承載載重建議 L O A D C A P A C I T I E S / FITS UP TO MOST 208.3 cm / 82 in DIAGONAL FLAT-PANEL TVS MAXIMUM LOAD 61.2 kg / 134.9 lb 適用於...
Page 5 Parts and Hardware List / 部件及五金清單 A × 1 B × 1 C × 1 D × 2 Pre-attached Pre-attached Pre-attached 預裝出貨預裝出貨預裝出貨 E × 2 F × 1 G × 1 H × 1 I × 2 J × 2 K ×...
Page 6 Parts and Hardware List / 部件及五金清單 AA × 4+1 BB × 10+1 CC × 10+1 DD × 28+1 EE × 28+1 FF × 1 GG × 4 HH × 4 II × 4 JJ × 2 KK × 1 LL × 8+1 MM ×...
Page 7 Parts and Hardware List / 部件及五金清單 CCC × 4 DDD × 4 EEE × 4 FFF × 4 GGG × 4 HHH × 4 III × 4 JJJ × 4 LLL × 4 MMM × 4 NNN × 4 OOO × 4 PPP ×...
Page 8 Assembly Instructions / 組裝說明 Parts inside 內含部件...
Page 9 Assembly Instructions / 組裝說明...
Page 10 Assembly Instructions / 組裝說明 The cleats face inward. 連接木朝內...
Page 11 Assembly Instructions / 組裝說明...
Page 12 Assembly Instructions / 組裝說明...
Page 13 Assembly Instructions / 組裝說明 Parts inside 內含部件...
Page 14 Assembly Instructions / 組裝說明 Shelf adjustment 隔板調整 Bottom view / 仰視圖 Wood screw Shelf support 木螺絲隔板托...
Page 15 Assembly Instructions / 組裝說明...
Page 16 Assembly Instructions / 組裝說明 The door inserts are interchangeable. Rubber liner 門芯板可互換橡膠壓條...
Page 17 Assembly Instructions / 組裝說明 Wall 牆 Wooden stud Wall NOTE: The included tipping restraint 木龍骨牆 Long screw hardware must be attached to a 長螺絲 wooden wall stud. Different anchor hardware may be required for different wall types. Please contact your local hardware store for assistance.
Page 18 Assembly Instructions / 組裝說明 The tipping restraints are not Young children can be seriously injured by tipping furniture. earthquake restraints. If you wish to You must install the tipping restraint hardware with the unit add the extra security of earthquake to prevent the unit from tipping, causing any accidents or restraints, they must be purchased and damage.
Page 19 A s s e m b l y I n s t r u c t i o n s f o r F l o a t i n g S w i v e l M o u n t 旋...
Page 20 Assembly Instructions / 組裝說明...
Page 21 Assembly Instructions / 組裝說明 BB DD...
Page 22 Assembly Instructions / 組裝說明 For Television with a Flat Back / 用於背板平直的電視機 Hardware size varies by TV; only use one configuration. 所用到的五金尺寸因電視機而異; 只使用一種五金配置。 AAA / CCC EEE / GGG LLL / MMM NNN / OOO IL / IR BBB / DDD IL / IR FFF / HHH / III / JJJ...
Page 23 Assembly Instructions / 組裝說明 For Television with a Curved or Recessed Back / 用於帶弧形背板或背部有凹槽的電視機 Hardware size varies by TV; only use one configuration. 所用到的五金尺寸因電視機而異; 只使用一種五金配置。 IL / IR IL / IR / III /JJJ IL / IR IL / IR...
Page 24 Assembly Instructions / 組裝說明 I L/ I R I L/ I R...
Page 25 Assembly Instructions / 組裝說明 Turn clockwise to tighten. Turn counter- IL / IR clockwise to loosen. [If unable to tighten by hand, use hex wrench (KK) for extra leverage.] IL / IR 順時針旋轉擰緊。逆時針旋轉擰鬆。 [如果無法用手擰緊，則使用內六角扳手(KK) 來增加力矩。] Tighten until lock bolt hits the underside of the mounting frame.
Page 26 Assembly Instructions / 組裝說明...
Page 27 Assembly Instructions / 組裝說明 Wall 牆 Wooden stud 木龍骨 Wall NOTE: The included tipping restraint 牆 Long screw hardware must be attached to a 長螺絲 wooden wall stud. Different anchor hardware may be required for different Metal bracket 角鐵 wall types. Please contact your local Wall hardware store for assistance.
Page 28 Assembly Instructions / 組裝說明 The tipping restraints are not Young children can be seriously injured by tipping furniture. earthquake restraints. If you wish to You must install the tipping restraint hardware with the unit add the extra security of earthquake to prevent the unit from tipping, causing any accidents or restraints, they must be purchased and damage.
Page 29 Installing the Mounting Frame onto a WOODEN STUD WALL 將井字架安装在帶木龍骨墻上 Wooden stud 木龍骨 40.7 cm 16 in / po 6.4 cm 2.5 in / po 16.6 cm 6.5 in / po...
Page 30 Installing the Mounting Frame onto BRICK, SOLID CONCRETE OR CONCRETE BLOCK WALLS 將井字架安装在磚塊、混凝土或者混凝土砖墻上 Wall 墻 40.7 cm 16 in / po 16.6 cm 6.5 in / po 6.4 cm 2.5 in / po Maximum weight 61.2 kg / 134.9 lb 最大承重量...
Page 31 Assembly Instructions / 組裝說明 IL / IR Back view 背部視圖 IL / IR...
Page 32 Care and Maintenance / 維護與保養  We recommend periodically dusting with a dry microfiber cloth in the direction of the grain.  We recommend using a wood conditioning cleaner that does not contain waxes or silicones (test first in an inconspicuous area). ...
Page 33 Quality Guarantee (Not Valid in Mexico) ® We are confident that you will be delighted with your Bayside Furnishings purchase. Should this product be defective in workmanship, materials or fail under ® normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Bayside Furnishings product is designed to meet your highest expectation.
Page 34 Distributed by: Costco Wholesale Canada Ltd.* Importado por: Costco Wholesale Australia Pty Ltd Costco Wholesale Corporation 415 W. Hunt Club Road Importadora Primex S.A. de C.V. 17-21 Parramatta Road P.O. Box 34535 Ottawa, Ontario Blvd. Magnocentro No. 4 Lidcombe NSW 2141 Seattle, WA 98124-1535 K2E 1C5, Canada San Fernando La Herradura...
