Summary of Contents for PowerMaster PXD Series

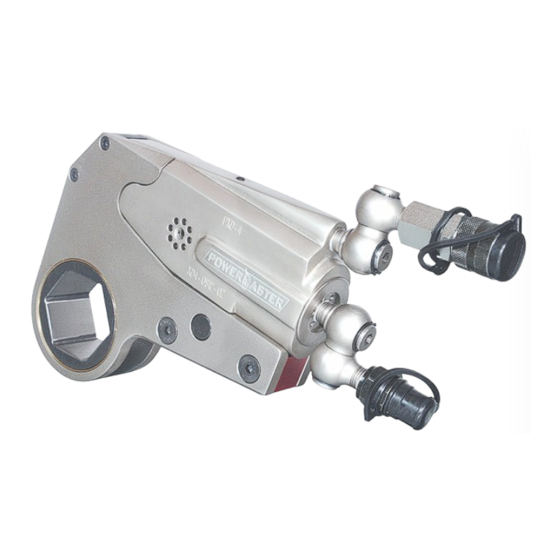

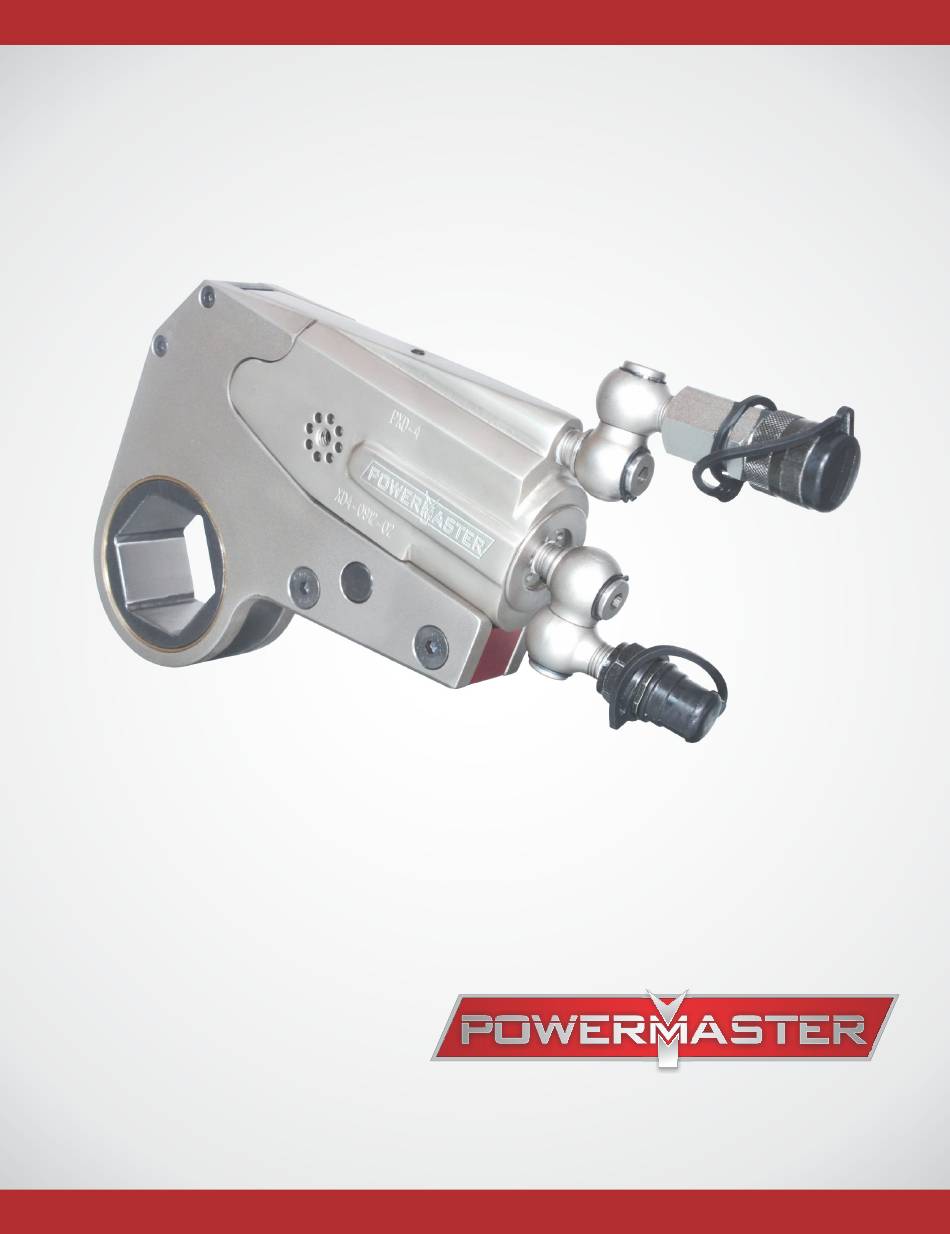

- Page 1 PXD SERIES LOW PROFILE HYDRAULIC TORQUE WRENCHES SOLUTIONS FOR EVERY BOLTING APPLICATION OPERATION MANUAL INTRODUCING THE NEW GENERATION POWER TOOL...
- Page 2 Safety Precautions Thank you for buying the New PXD Tool. This manual is designed to provide you with the basic knowledge required to operate and maintain your bolting equipment. Please read this manual carefully and follow the instructions provided. SAFETY PRECAUTIONS Hydraulic Torque Wrench is a power tool enables the user to more easily accomplish bolting tasks with increased force, accuracy and efficiency.
- Page 3 Warning Safety is one of our primary concerns. By following these few simple precautions you'll be sure to obtain the most beneficial use of wrench system in the safest manner possible. WHILE USING THE TOOL Do not handle pressurised hoses and be sure they are clear of any possible reaction surface during operation. 10,000 psi (700 bar) Test couplers when coupled with hydraulic equipment for pressure test.
-
Page 4: Table Of Contents
Table Of Contents 1 INTRODUCTION 1.1 TECHNICAL SPECIFICATION 1.2 DIMENSIONS 1.3 SECTIONAL VIEW PXD SERIES SQUARE DRIVE HYDRAULIC TORQUE WRENCHES 2 OPERATION 2.1 OPERATING INSTRUCTIONS 2.2 ADJUSTMENTS 2.3 OPERATING THE WRENCH 2.4 LUBRICATION 3 MAINTENANCE 3.1 DISASSEMBLY 3.2 ASSEMBLY 3.3 FAULT FINDING AND TROUBLE SHOOTING 3.4 ACCESSORIES OF PXD SERIES SQUARE DRIVE HYDRAULIC TORQUE WRENCHES... -
Page 5: Introduction
PXD SERIES LOW PROFILE HYDRAULIC TORQUE WRENCHES ROUND CYLINDER PXD Series Low Profile Hydraulic Torque Wrenches Round Cylinder are designed for installing and removing large bolts having minimal wrench clearance. These Hydraulic Torque Wrenches used at windmill, offshore platforms, power plants, steel erection sites and other locations requiring accurate high torque during bolt tightening and also where maximum torque during failure of the bolt. -
Page 6: Operation
2. Operation PXD SERIES LOW PROFILE HYDRAULIC TORQUE WRENCHES 2.1 OPERATING INSTRUCTIONS : 2.1.1 PREPARATION FOR ARRANGING THE TOOL Place the correct size link on the nut making sure that ratchet socket has fully engaged the nut. Make sure the reaction point is firmly touched along a border or with a projecting part against a stationary object such as an adjacent nut, flange, equipment housing, etc. -
Page 7: Adjustments
2.2 SETTING ADJUSTMENTS : 2.2.1 SETTING THE TORQUE For desired torque Refer Table 1 conversion chart supplied for your PXD Series tool model. Read across to the corresponding pressure. This pressure is to be set on the pump. Hydraulic Power Pack is connected to the power supply and turns the pump on. - Page 8 Table 1 - Torque Conversion Chart PXD Series P.S.I. / FT. / lbs Bar / N.M. PXD-1 PXD-2 PXD-4 PXD-8 PXD-16 PXD-32 PXD-45 PXD-1 PXD-2 PXD-4 PXD-8 PXD-16 PXD-32 PXD-45 1/2” 1.3/16” 3/4” 1.7/8” 2.5/8” 4” 2.7/16” 4.11/16” 2.7/16” 4.11/16 1/2”...
-
Page 9: Operating The Wrench
2.3 OPERATING THE WRENCH : The position of the Low Profile Hydraulic Torque Wrench relative to the nut determines whether the action will be for Loosening or Tightening of the nut. Refer figure 4 for Low Profile Hydraulic Torque Wrench Position for Tightening and Loosening application. The power stroke of the Piston Assembly will always turn the Ratchet Hex toward the Shroud. -
Page 10: Lubrication
LUBRICATION : The frequency for the lubrication is dependent on operating conditions The Hydraulic Torque Wrench used in a clean enclosed environment will require less servicing than a tool used open atmosphere and dropped in loose dirt or sand. Synthetic Grease is used for lubrication. -
Page 11: Maintenance
3. Maintenance PXD SERIES LOW PROFILE HYDRAULIC TORQUE WRENCHES Refer figure for PXD-2, 4, 8, 16, 32 and 45 Series Swivel. Refer figure for PXD-1 Series Ratchet Link. Refer figure for PXD-2, 4 and 8 Series Ratchet Link. Refer figure for PXD-16 and 32 Series Ratchet Link. - Page 12 Figure 7 - PXD-1 Series Ratchet Link Figure 8 - PXD – 2, 4 and 8 Series Ratchet Link...
- Page 13 Figure 9 - PXD – 16 and 32 Series Ratchet Link Table 2 – Part Identification of PXD-1, 2, 4, 8, 16 and 32 Series Ratchet Link Qty. PXD-2 PXD-4 PXD-8 PXD-16 PXD-32 DESCRIPTION PXD-1 PART NO PART NO PART NO PART NO PART NO PART NO...
-
Page 14: Assembly
Figure 10 - PXD – 1 Series Cylinder Table 3 – Part Identification of PXD-1 Series Cylinder PXD-1 SR. NO. PART HOUSING PXD1-20-15 PISTON BRASS BUSHING PXD1-20-16 PISTON ROD ASSEMBLY PXD1-20-0B PISTON ROD PXD1-20-18 PISTON CAP PXD1-20-19 VALVE BALL VALVE SPRING WASHER VALVE HOLLOW LOCK SLIDER... - Page 15 Figure 11 - PXD – 2, 4, 8 Series Round Cylinder Figure 12 - PXD – 16 and 32 Series Cylinder Table 4 – Part Identification of PXD-2, 4, 8, 16 and 32 Series Round Cylinder S R. NO. PART PXD-2 PXD-4 PXD-8...
- Page 16 Figure 13 - PXD – 45 Series Cylinder Table 5 – Part Identification of PXD-45 Series Cylinder S R. NO. PART PXD-45 HOUSING PXD45-26-15 PISTON BRASS BUSHING PXD45-26-16 PISTON ROD ASSEMBLY PXD45-26-0B PISTON ROD PXD45-26-18 PISTON CAP PXD45-26-19 VALVE BALL 2140006 VALVE SPRING PXD45-26-21...
- Page 17 3.1 DISASSEMBLY OF WRENCH: 3.1.1 General Instructions Do not disassemble the tool unless until required to replace or repair damaged parts. Take precautionary measure while handling surfaces that will contain hydraulic oil under pressure. Do not disassemble the tool unless until required to replace or repair damaged parts. Take precautionary measure while handling surfaces that will contain hydraulic oil under pressure.
- Page 18 During removal and after the piston shaft is removed; DO NOT hold the round portion of the shaft with any holding device that will damage the surface. To avoid hydraulic oil leak do not allow nicks or scratches to the surface.
- Page 19 For Series PXD-16 and PXD-32 presses the Spacer Roll Pin into the Right Side Plate with one end of the Pin flush with the outer face of the Side Plate. Insert the tab of the Upper Spacer into the slot in the Middle Spacer, and after aligning the holes in both pieces, install them on the Spacer Roll Pin.
- Page 20 Insert the piston, hex end trailing, into the bore of the Housing, and use socket to thread and tighten the piston onto the piston shaft. Install the End Plug Seal in the groove on the hub of the End Cap. Using the End Plug Wrench, thread the assembled End Cap, o-ring end leading, into the piston end of the Housing and tighten it.
- Page 21 Sleeves. in the Housing. stroke 3.4 PXD SERIES ACCESSORIES: Refer Figure 14 CYLINDER LINK EXTENDED REACTION ARM HEX REDUCER INSERTER STACK SOCKET SQUARE DRIVE ADAPTER LOW POINT REACTION ARM Figure 14 - PXD Series Low Profile Hydraulic Torque Wrench...
- Page 22 POWERMASTER ENGINEERS PVT. LTD. 229, Pragati Industrial Estate, 316, N. M. Joshi Marg, Bombay - 400 011. INDIA. Phone: +91.22.4345 3100 Fax: +91.22.2307 3761 Website: www.powermaster.in email: sales@powermaster.in...
