Installation and User Guide

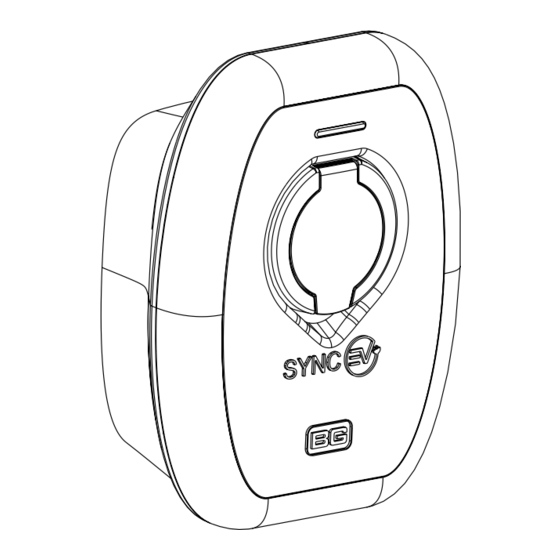

EV Charger
Type 2 socket, 7.4kW
EVS7G, EVS7GG, EVS7GGR
Tools needed:
4mm Hex bit/allen key; PZ 2 screwdriver; suitable drill bit and fixings
BOX CONTENT
• EV charger
• Decorative trim
• Installation template
• Accessories pack containing:
» Power connector
» Cord grip and screws
» M25 gland
» 25mm blanking plug
» Fixing screw caps
» Assembly screws
INTRODUCTION
This guide is intended for use by competent electrical installers to explain basic requirements and options to
be considered when installed a SyncEV BG Charger. The unit is designed for installations inside or outside,
the advanced safety technology we have built into the unit ensures its safe usage. This guide provides
information to assist when installing the EVS7 charger and should not be used with other EV chargers.
EV Charger | 202205.NH
IMPORTANT NOTICE
To commission your charger and register
for the 3 year warranty, please visit:
www.syncev.co.uk/portal/login
or use the QR code.
3 year warranty available as long as charger
installation is registered, otherwise standard
warranty is for a period of 1 year.
3
year
WARRANTY
IDENTIFICATION LABEL
www.syncev.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SyncEV BG EVS7G
Summary of Contents for SyncEV BG EVS7G
- Page 1 This guide is intended for use by competent electrical installers to explain basic requirements and options to be considered when installed a SyncEV BG Charger. The unit is designed for installations inside or outside, the advanced safety technology we have built into the unit ensures its safe usage. This guide provides information to assist when installing the EVS7 charger and should not be used with other EV chargers.
- Page 2 Where certain conditions dictate an earth electrode must be used it shall be independent from the distributors earth system with no direct If Load Balancing is required, we suggest of the SyncEV BG CT clamp, interconnection (the incoming supply SWA protective earth should be EVA120CT1.
- Page 3 Installation and User Guide 110mm Cable entry Use included hole template to drill fixing holes L E N Ensure the supplied caps are fitted over installation Ensure correct polarity when making screws to maintain IP rating incoming power connections Ensure supplied cord grip is fitted on incoming power Ensure connector is fully inserted, then clip cable if using bottom cable entry location.
- Page 4 To meet the BS7671:2018 (18th edition) requirements for testing of an resistance is within acceptable tolerances. electrical installation, the following tests and checks shall be performed by a competent electrical installer before during and after a SyncEV BG (or) charger is installed: •...
- Page 5 Installation and User Guide WI-FI CONNECTION GUIDE This is the installers responsibility and must be done to complete the installation. We recommend the WiFi router is set to only 2.4GHz band during set up to reduce the risk of possible issues during set up. Once set up the router can then be restored to both 2.4GHz and 5GHz bands. Upon powering the Sync EV BG charger, the status indicator light will show Yellow. This indicates that the health of the charging unit is good but there is no connection to the Sync EV Network. The BG EV Charging installer app can be downloaded via the installer portal on www.syncev.co.uk 1.
- Page 6 Installation and User Guide SET UP AND COMMISSIONING SYNC EV APP You will now need to inform your customer to download the SYNC EV Application apps.apple.com/gb/app/sync-ev/id1528884639 play.google.com/store/apps/details?id=syncev.co.uk&hl=en_GB&gl=GB 1. Once downloaded, please register an account, the chargers 2. Scan the QR code within the app to register this EV charger QR code ID and Pin code can be found on the charge point to the customers account.
- Page 7 Installation and User Guide APP FEATURES Live status and charging state of the charger Authentication, to prevent unwanted use of the charge point, or plug and charge modes Schedule Charging Enable Smart Charging with Agile Octopus or Octopus Go Enables you to set start and end times to match your off-peak Agile Octopus (requires compatible tarrif) to optimise your charging electricity tariffs or preference, with optional minimum and maximum schedule based on the current price per kWh, to only chagre when the kWh charge limits.
- Page 8 GUARANTEE SyncEV BG products are guaranteed against faulty materials and workmanship for a period of 3 years from date of delivery: products will be repaired or (at BG Electrical’s discretion) replacements will be supplied or (at BG Electrical’s discretion) a credit note will be issued.
