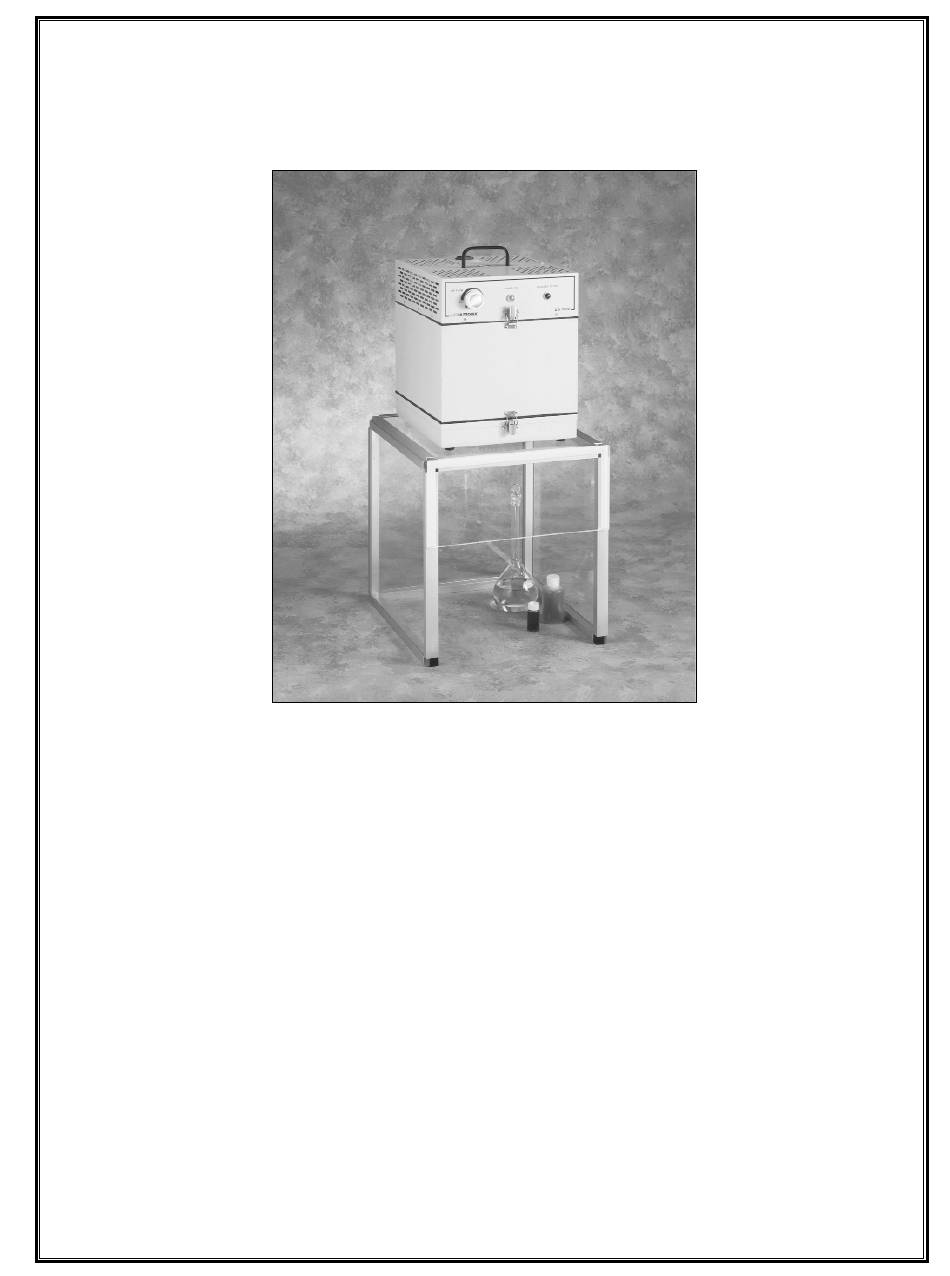

ES-7000 Mini-Containment Hood
Assembly and Installation Instructions
Before assembly please check the contents of your packages
following the enclosed instructions.
The ES 7000 blower unit comprises:
1. Combined blower unit and filter housing
2. Containment Hood
3. AC line cord with medical grade plug
No tools are required for assembly
AIRFILTRONIX
CLEAN AIR FOR INDUSTRY, MEDICINE & RESEARCH
Advertisement
Table of Contents
Related Manuals for AirFiltronix ES-7000
Summary of Contents for AirFiltronix ES-7000
- Page 1 ES-7000 Mini-Containment Hood Assembly and Installation Instructions Before assembly please check the contents of your packages following the enclosed instructions. The ES 7000 blower unit comprises: 1. Combined blower unit and filter housing 2. Containment Hood 3. AC line cord with medical grade plug...
- Page 2 ES-7000 Enclosure Installation Instructions 1. Unpack the enclosure and check for shipping damage. Place on table or portable cart approximately 32-34” high. (see Figure 1). 2. Unpack the ES7000 blower unit. Figure 1 Figure 2 3. Unsnap latches on either side of the blower enclosure ( see figure 2) and lift the blower unit off its base (see figure 3).
- Page 3 Figure 7 Figure 8 4. Tighten down both sides of the compression bar evenly with the wingnuts until the bar bends upward approximately 1/4 inch in the middle (see figure 7). 5. Re-install the motor housing on top of the filter mounting (see figure 8) base and retighten latches on either side of the enclosure (see figure 9).
- Page 4 Safety Procedures There is a risk that internal parts of model ES-7000 blower unit may be contaminated with whatever substance the filter is intend- ed to remove. When replacing filters please follow appropriate guidelines for handling materials the enclosure is being used to con- tain.
