AP25AFS

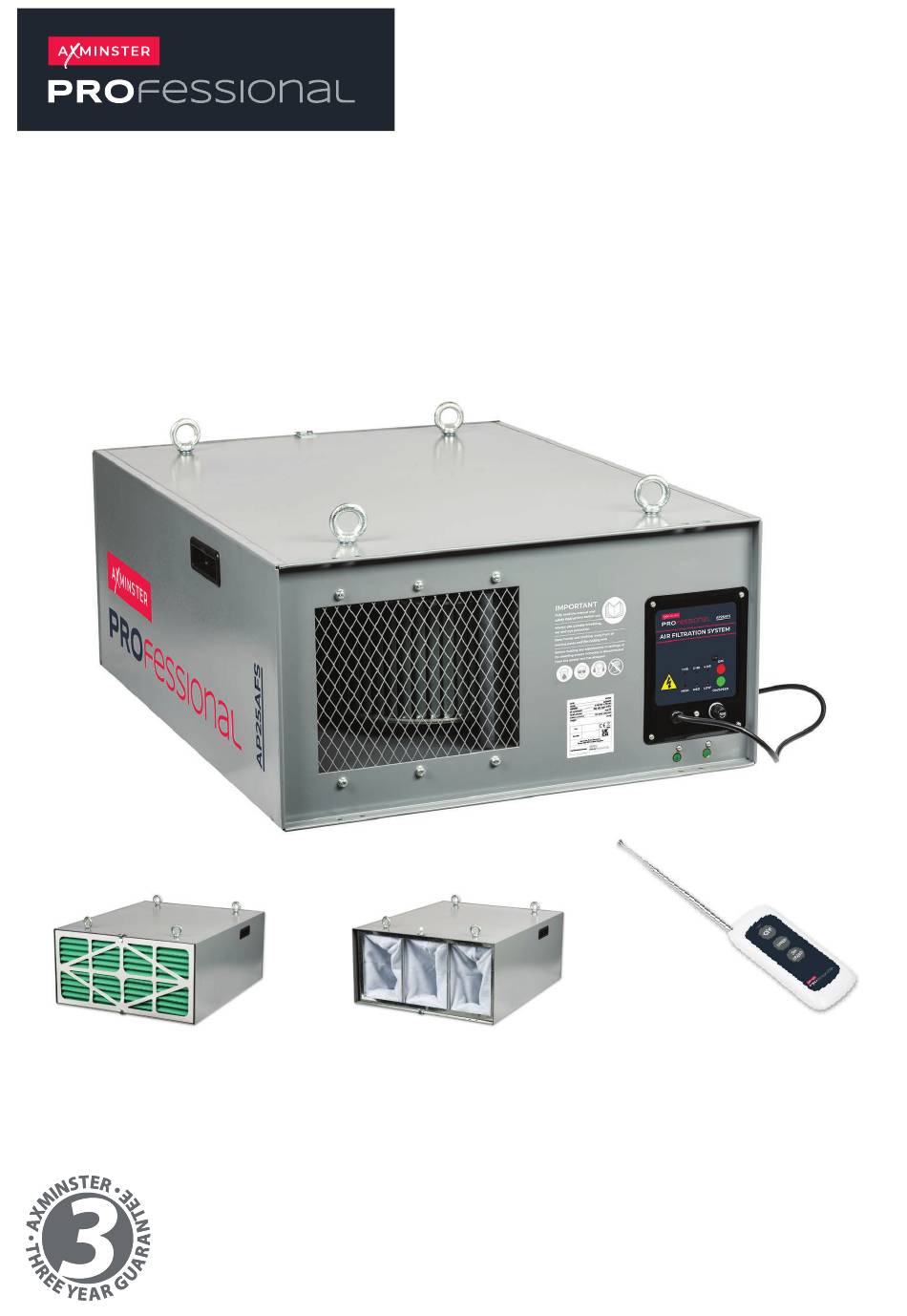

Air Filter
• Powerful air filter system for workshops up to 300m³
• Collects dusts "hanging" in the air, improving air quality
• Twin filters, electrostatic outer filter, pleated deep inner filter
• Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size
• Optional charcoal filter for removing odours, organic fumes and pollen
• Three speeds plus timer periods, controlled by remote handset
• Performs at its best when hung from a ceiling
Code 107709
Original Instructions
AT: 02/05/2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axminster PROFESSIONAL AP25AFS
Summary of Contents for Axminster PROFESSIONAL AP25AFS
- Page 1 Code 107709 Original Instructions AP25AFS Air Filter • Powerful air filter system for workshops up to 300m³ • Collects dusts “hanging” in the air, improving air quality • Twin filters, electrostatic outer filter, pleated deep inner filter • Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size •...
- Page 2 Cert No: TA15, TA25, TA25-1 EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK 2006/42/EC EN 61000-3-3 : 2013+A1 axminstertools.com 2014/30/EU EN 55014-1: 2017 declares that the machinery described:-...
-
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Motor…………………………………………………………… 1/5 HP, 110-120 V, 60 Hz, 1 Phase …………………………………………………………or 1/5 HP, 230-240 V, 50 Hz, 1 Phase Outer Filter …………………………………………………………………………………5 Microns Inner Filter …………………………………………………………………………………..1 Micron Sound Rating ………………………………………… High Speed - 68 dB, Low Speed - 63 dB Air Flow ….…….….High Speed 1044 CFM, Medium Speed 702CFM, Low Speed - 556 CFM... -
Page 4: Specific Safety Rules
PERSONAL SAFETY 9. Stay alert. Watch what you are doing, and use common sense when operating a power product. Do not use a power product while tired or under the influence of drugs, alcohol, or medication. 10. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. -
Page 5: Extension Cords
machine is placed securely on a flat, level surface, capable of supporting the weight of the machine. 5. If attaching the Air Filtration System to a ceiling, make sure the machine is attached securely to joists capable of supporting the weight of the machine. 6. - Page 6 2. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible product damage. (See Figure C,) 3.
-
Page 8: Inspection, Maintenance, And Cleaning
INSPECTION, MAINTENANCE, AND CLEANING 1. WARNING! Make sure the Switch Plate (22) of the 3-SPEED AIR CLEANER is in its “OFF” position and that the product is unplugged from its electrical outlet before performing any inspection, maintenance, or cleaning procedures. 2. -
Page 9: Troubleshooting
TROUBLESHOOTING Note: Any repairs suggested below should be completed by an authorized service technician. Trouble Probable Cause Correction 1 Blown fuse. 1 Replace fuse. Motor does not run when 2. Switch is burned out. 2. Replace the Switch. power switch is pressed on. 3. -
Page 10: Parts Breakdown & Parts List
PARTS BREAKDOWN & PARTS LIST DESCRIPTION CAPACITOR 6 MFD 450 VAC SPACER (SPECIAL} PHLP HO SCA M6-1 X 16 FILTER RETAINING LATCH PHLP HO SCA M3-.5 X 6 LOCK WASHER 6MM SECOND FILTEA 1-MICRON PC BOARD PHLP HO SCA M4 .7 X 8 FOAM SEAL V4”... -
Page 11: Wiring Diagram
WIRING DIAGRAM... - Page 12 The Axminster guarantee Buy with confidence from Axminster Tools! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminstertools.com/3years The packaging is suitable for recycling. Please dispose of it in a responsible manner.
