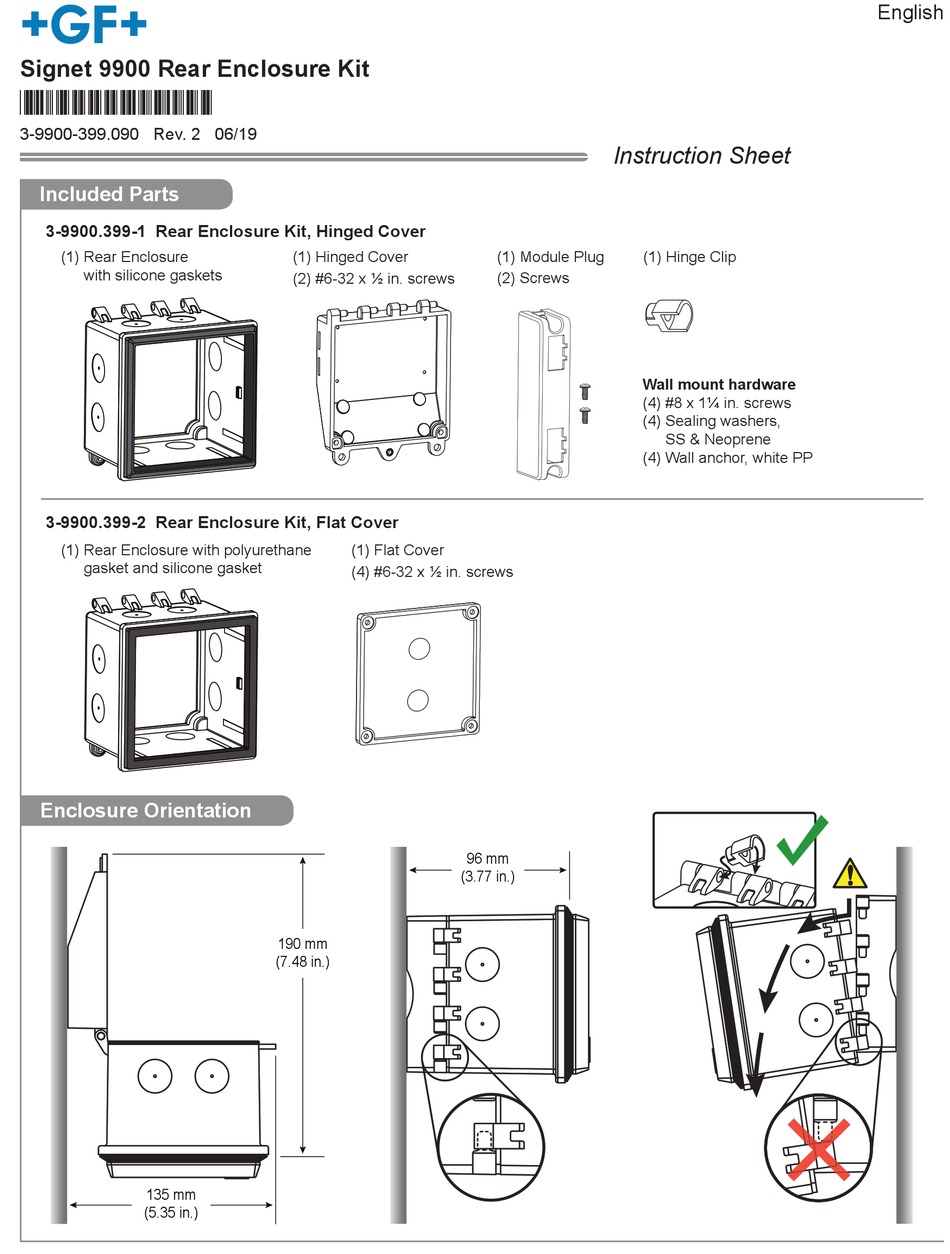

Signet 9900 Rear Enclosure Kit
*3-XXXX.090*
3-9900-399.090 Rev. 2 06/19
Included Parts
3-9900.399-1 Rear Enclosure Kit, Hinged Cover
(1) Rear Enclosure
with silicone gaskets
3-9900.399-2 Rear Enclosure Kit, Flat Cover
(1) Rear Enclosure with polyurethane
gasket and silicone gasket
Enclosure Orientation
135 mm
(5.35 in.)
(1) Hinged Cover
(2) #6-32 x ½ in. screws
(1) Flat Cover
(4) #6-32 x ½ in. screws
190 mm
(7.48 in.)
Instruction Sheet
(1) Module Plug
(2) Screws
96 mm
(3.77 in.)
(1) Hinge Clip
Wall mount hardware
(4) #8 x 1¼ in. screws
(4) Sealing washers,
SS & Neoprene
(4) Wall anchor, white PP
English
Advertisement
Summary of Contents for Georg Fischer 3-9900.399-1
- Page 1 English Signet 9900 Rear Enclosure Kit *3-XXXX.090* 3-9900-399.090 Rev. 2 06/19 Instruction Sheet Included Parts 3-9900.399-1 Rear Enclosure Kit, Hinged Cover (1) Rear Enclosure (1) Hinged Cover (1) Module Plug (1) Hinge Clip with silicone gaskets (2) #6-32 x ½ in. screws...
- Page 2 Wall Mount Installation Apply suffi cient pressure when installing the 9900 into the enclosure. Hinged Cover (3-9900.399-1) ONLY Make sure there are no gaps between the 9900 and the front gasket of the enclosure. Not applying suffi cient pressure can result in leaks.
- Page 3 Pipe Mount Installation Hinged Cover (3-9900.399-1) ONLY Minimum pipe size: OD: DN32 (1.25 in.) Apply suffi cient pressure when installing the 9900 into the enclosure. Install application wiring through conduit fi ttings. Make sure there are no gaps between the 9900 and the Recommended: Do not route the sensor, DC power, or front gasket of the enclosure.
- Page 4 9900 Rear Enclosure Kit, Flat Cover Georg Fischer Signet LLC, 3401 Aero Jet Avenue, El Monte, CA 91731-2882 U.S.A. • Tel. (626) 571-2770 • Fax (626) 573-2057 For Worldwide Sales and Service, visit our website: www.gfsignet.com • Or call (in the U.S.): (800) 854-4090 For the most up-to-date information, please refer to our website at www.gfsignet.com...
