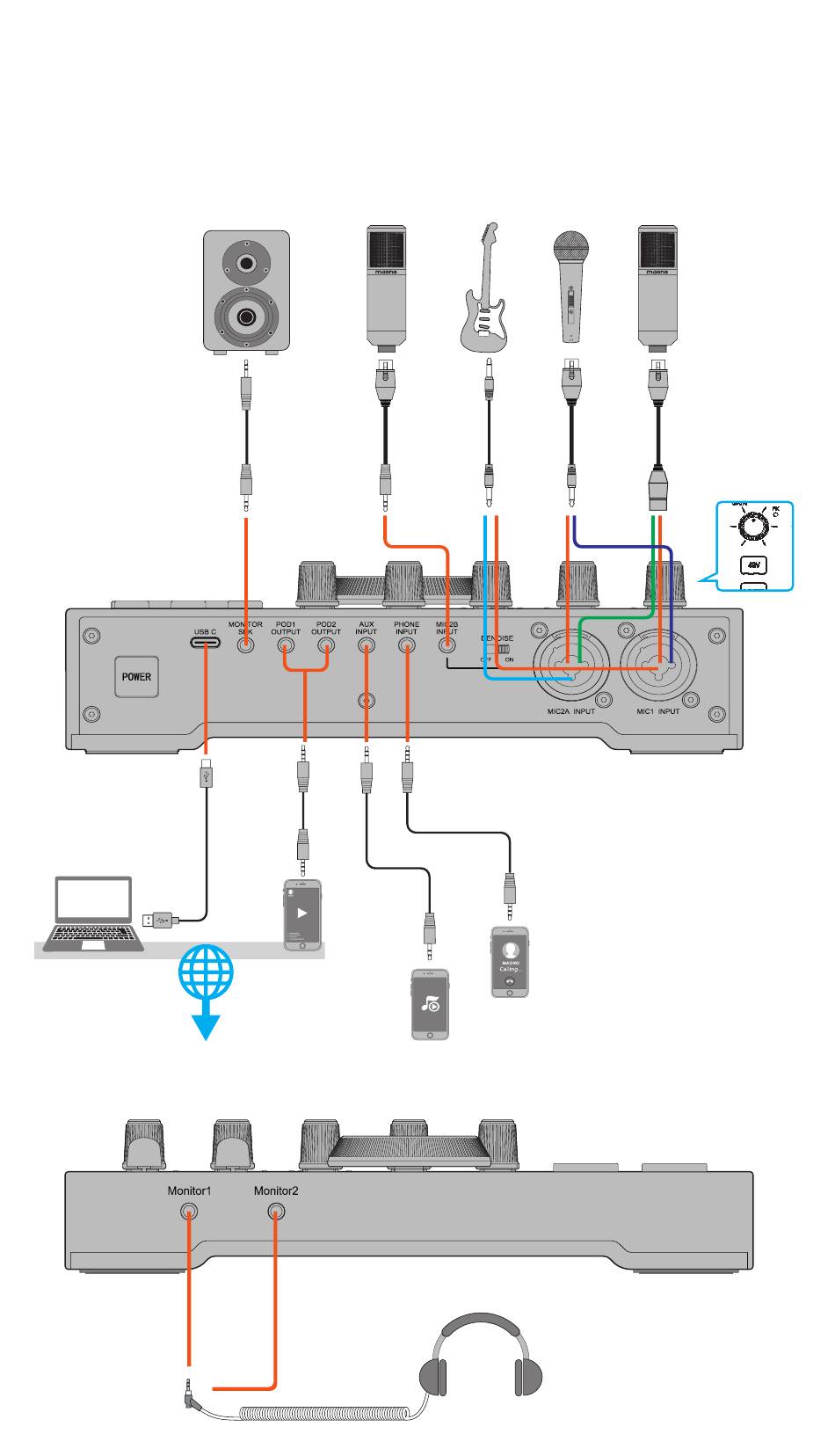

MAONOCASTER Setup Guide
TRRS audio cable
USB-C Cable
Smartphone
for streaming
Computer
Audience
1/8' (3.5mm)
Mini-stereo
Condenser Mic
(Unbalanced)
XLR to 1/8' TRS
AUX
NO REQUIRED 48V
Phantom power
TRS Audio cable
Connect to
podcast server
Smartphone
for music play
Electric guitar
Dynamic mic
OR
1/4' TS
6.35mm
Maonocaster AM100 rear panel
TRRS Audio cable,
link phone call to podcast
Smartphone
for call
Maonocaster AM100 front panel
Condenser Mic
(Balanced)
OR
1/4' TS
XLR
6.35mm
"TURN ON" 48V Phantom
Power for condenser mic

Advertisement

loading
Need help?

Need help?

Do you have a question about the Maonocaster AM100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maono Maonocaster AM100

  • Page 1 1/4’ TS NO REQUIRED 48V 6.35mm 6.35mm Phantom power “TURN ON” 48V Phantom Power for condenser mic Maonocaster AM100 rear panel TRRS Audio cable, TRRS audio cable link phone call to podcast USB-C Cable TRS Audio cable Smartphone for streaming...
  • Page 2 All manuals and user guides at all-guides.com STEP BY STEP GUIDE STEP 1: Connect MAONOCASTER AM100 to your computer with a USB-C cable. STEP 2: Launch Adobe Audition on your computer. STEP 3: Open Edit > Preferences > Audio Hardware... for input and output selection.
  • Page 3 All manuals and user guides at all-guides.com STEP 4: Click on Default Input and Output tab at Audio Hardware and choose Maono Podcaster, then click OK and confirm.
  • Page 4 All manuals and user guides at all-guides.com STEP 5: Open File > New > Mutitrack Session and create a new session.
  • Page 5 All manuals and user guides at all-guides.com STEP 6: Name, click OK and create your session.
  • Page 6 All manuals and user guides at all-guides.com STEP 7: Click on Default stereo input at any track and choose Maono Podcaster AM100 as track input.
  • Page 7 All manuals and user guides at all-guides.com STEP 8: Click on the “R” button beside the track and get the track ready.
  • Page 8 All manuals and user guides at all-guides.com STEP 9: Click on the Recording button below and start recording.
