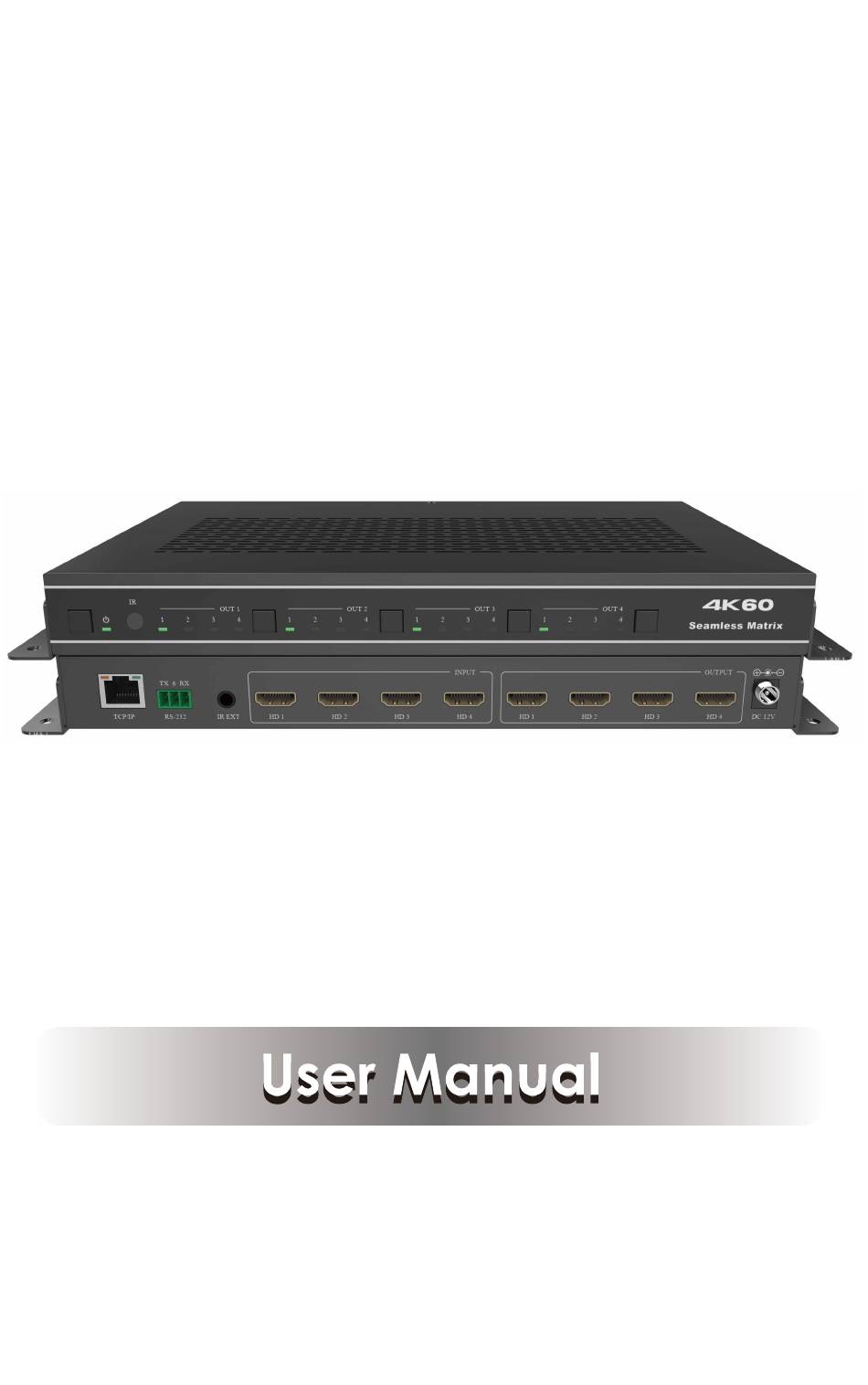

4K60 4x4 Seamless Matrix

VER 1.1

Table of Contents

Need help?

Do you have a question about the PS-528 and is the answer not in the manual?

Questions and answers

Summary of Contents for SolidView PS-528

Page 1 4K60 4x4 Seamless Matrix VER 1.1...
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
Page 3: Introduction
1. Introduction The 4K60 4:4:4 HDMI matrix is a multi-purpose high-speed video processing system. It can be configured for 2 different output modes. It can perform as a 4×4 seamless matrix switcher, as a 2×2, 4×1 or 1×4 etc video wall solution. It also features a web browser interface module for control and configuration of the matrix when used stand-alone or with a third party control system.
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.4 Video Bandwidth 594MHz/18Gbps Input: VGA-WUXGA (up to 1920×1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4) Video Resolution Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto Color Space RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0 Color Depth...
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel OUT 1 OUT 2 OUT 3 OUT 4 1 2 3 Name Function Description ▪ Short press this button to power on the device. Power button ▪ Press this button for 1 seconds to enter the standby mode. The LED will illuminate in green when the product is working Power LED normally, and red when the product is on standby.
Page 6: Ir Remote
6. IR Remote ① Power on or Standby: Power on the Matrix or set it to standby mode. ② INFO: Press this button to display the serial port baud rate and IP address in the upper right corner of the screen. (The information will disappear after 5 seconds.) ③...
Page 7: Ir Pin Definition
7. IR Pin Definition IR Receiver pin’s definition is as below: IR RECEIVER IR Signal Grounding Power 12V IR RECEIVER Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ±...
Page 8: Video Wall
The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 4k2k60_444,stereo audio 2.0 4k2k60_444,dolby/dts 5.1 4k2k60_444,hd audio 7.1 4k2k30_444,stereo audio 2.0 4k2k30_444,dolby/dts 5.1 4k2k30_444,hd audio 7.1 1080p,stereo audio 2.0 1080p,dolby/dts 5.1 1080p,hd audio 7.1 1920x1200,stereo audio 2.0 1360x768, stereo audio 2.0 1024x768, stereo audio 2.0...
Page 9: Web Gui User Guide
10. Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100. You can get the current Matrix IP address in two ways: The first way: You can get the IP address via remote controller.
Page 10 Select the Language from the drop-down list to choose English or Simple Chinese. Select the Username from the drop-down list and enter the password. The default passwords are: User Admin Username Password user admin After entering the password, click the “LOGIN” button and the following Status page will appear.
Page 11 You can do the following operations on the Input page: ① Inputs: Input channel of the device. ② Active: It indicates whether the channel is connected to a signal source. When the input port is connected to the signal, it shows green, otherwise, it shows gray. ③...
Page 12 You can do the following operations on the Output page: ① Outputs: Output channel of the device. ② Cable: It indicates the connection status of output ports. When the output port is connected to the display, it shows green, otherwise, it shows gray. ③...
Page 13 ■ Network Page You can do the following operations on the Network page: Modify Network Setting Modify the IP Mode Address/Gateway/Subnet Mask/Telnet Port as required, click “Save” to save the settings, then it will come into effect. After modification, if the Mode is “Static”, it will switch to the corresponding IP Address; if the Mode is “DHCP”, it will automatically search and switch to the IP Address assigned by the router.
Page 14 Set the Default Network Click “Set Network Defaults” button, there will be a prompt, as shown in the following figure: Click “OK” to search the IP Address again, as shown in the following figure: After searching is completed, it will switch to the login page, the default network setting is completed.
Page 15: Rs-232 Control Command
You can do the following operations on the System page: ① Panel Lock: Click to lock/unlock panel buttons. “ON” indicates that panel buttons are unavailable; “OFF” indicates panel buttons are available. ② Beep: Click to turn on/off the beep. ③ Pattern: Click to select 6 patterns. ④...
Page 16 Example Function Description Feedback Command Code Default Setting r fw version! Get firmware version r fw version! mcu fw version x.xx.xx power on Power on/off the device,z=0~1 s power z! s power 1! system initializing... (z=0 power off, z=1 power on) initialization finished! mcu fw version x.xx.xx r power!
Page 17 Example Function Description Feedback Command Code Default Setting Get output y resolution(y=0~4) y=0. output all output 1 resolution: y=1. output 1 r output y res! s output 1 csc 1! 3840x2160p60 y=2. output 2 y=3. output 3 y=4. output 4 Set output y color space (y=0~4, x=1~4) y=0.
Page 18 Example Function Description Feedback Command Code Default Setting Set output y stream enable/disable (y=0~4, x=0~1) y=0. output all y=1. output 1 s output y stream s output 1 y=2. output 2 output 1 stream: enable enable stream 1! y=3. output 3 y=4.
Page 19 Example Function Description Feedback Command Code Default Setting Video wall setting Set tv wall display mode(x=1~10) x=1. 2x2 mode x=2. 2x1 mode x=3. 2x1-2 mode x=4. 1x2 mode x=5. 1x2-2 mode s tw mode x! s tw mode 1! tv wall mode: 2x2 tv wall mode: 2x2 x=6.
Page 20 Example Function Description Feedback Command Code Default Setting Network setting ip mode: static ip: 192.168.0.100 subnet mask: 255.255.255.0 r ipconfig! Get the current ip configuration r ipconfig ! gateway: 192.168.0.1 tcp/ip port=8000 telnet port=23 mac address: 00:1c:91:03:80:01 mac address: r mac addr! Get network mac address r mac addr! 00:1c:91:03:80:01...
Page 21: Application Example
12. Application Example TV box or Blu-ray Player Power Supply INPUT OUTPUT TCP/IP RS-232 IR EXT HD 1 HD 2 HD 3 HD 4 HD 1 HD 2 HD 3 HD 4 DC 12V UHDTV 1 UHDTV 4 IR Receiver UHDTV 2 UHDTV 3 The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are...
