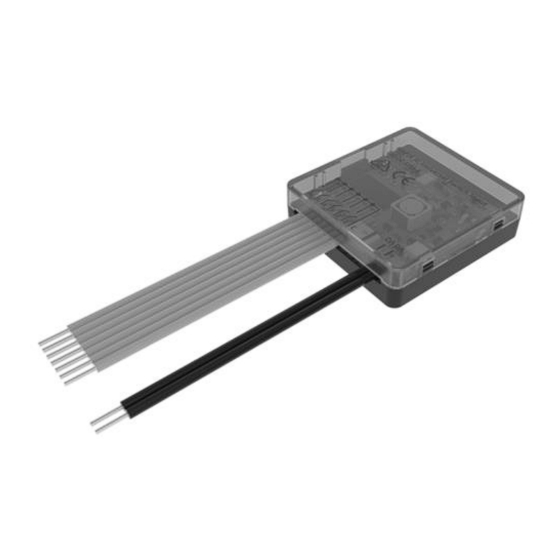

DGOZ-USI-6 - RAPIX Xi DALI Universal Switch Input
Product summary and capabilities
The RAPIX Xi DALI Universal Switch Input acts as a DALI Application Controller
with connections to up to 6 switches or dry contacts. Advanced control
functions can be used in any DALI system.
The Universal Switch Input is commissioned using the RAPIX Addressing or
RAPIX Integrator software. These software packages are available at no charge
from ozuno.com.
Important notes and safety information
WARNING
product. Work in accordance with the latest electrical safety practices.
•
This Universal Switch Input product is powered only from DALI.
•
DALI system wiring is only single insulated from mains. Treat DALI wiring the same as mains wiring.
•
Each switch/dry contact connection has no isolation from DALI. Treat these inputs the same as mains wiring.
•
The switch / dry contact connections do not provide any power source. Connect these only to dry contacts or a
switch. Do not connect any part of the switch input connections to any other power source, or to earth, or to
mains line or neutral.
•
There are no user serviceable parts inside the Universal Switch Input. Do not attempt to disassemble or operate the
device with any covers removed.
•
This product is intended for indoor use only.
Indicators
DALI Activity:
Discovery:
Terminals
The Universal Switch Input has a single common connection, 6 input connections, and 2 wires for DALI. These are shown on
the product label:
A common linking wire is included to allow easy connection / looping of the switch common.
– Electric shock may result in serious injury or death. Follow all warnings in this guide and on the
A DALI activity indicator is located inside the product. This blinks green and can be seen through
the plastic housing.
During installation this can be used to verify there is a DALI connection: If a green glow can be
seen with a blink about every 1 .. 2 seconds, then DALI is connected and the device has electrical
power.
Commissioning Software includes an IDENTIFICATION function. When this is activated, the green
DALI indicator and a nearby red indicator will blink. This allows physical location of the device if
location discovery / confirmation is needed.
Switch Common
Switch / Input
Connections
DALI Line
RAPIX Xi DALI Universal Switch Input DGOZ-USI-6
Made in China
Page 1 of 4
Advertisement
Table of Contents
Summary of Contents for RAPIX DGOZ-USI-6
- Page 1 DGOZ-USI-6 - RAPIX Xi DALI Universal Switch Input Product summary and capabilities The RAPIX Xi DALI Universal Switch Input acts as a DALI Application Controller with connections to up to 6 switches or dry contacts. Advanced control functions can be used in any DALI system.
- Page 2 300mm 41mm Commissioning Software Use the free RAPIX Addressing or RAPIX Integrator software, available at ozuno.com. A RAPIX USB Interface or Zone Controller is required to connect the commissioning software / PC to the DALI line. Page 2 of 4...
- Page 3 This product supports RAPIX Zero-Commissioning out of-box functions. All RAPIX Zero-Commissioning behaviour becomes automatically disabled when RAPIX software is used to perform commissioning of this product. RAPIX Zero-Commissioning behaviour for this product will transmit DALI Broadcast commands with behaviour appropriate to the type of input being used: OUT OF BOX OPERATION TYPE HOW TO SET UP &...
- Page 4 Ozuno shall not be liable for any error. Trademarks RAPIX is a trademark of Ozuno Holdings Pty Ltd. DALI is a trademark of the Digital Illumination Interface Alliance. Identified trademarks and copyrights are the property of Ozuno Holdings Pty Ltd unless otherwise noted.
