- Page 1 Inactivity Alert Sensor IAP1301 User Manual home8care.com Inactivity Alert Sensor User Guide 1-844-800-6482 | support@home8care.com V1.0 2017...
-
Page 2: Table Of Contents
Table of Contents Chapter 1. Introduction ................. 2 System Requirement ....................2 Chapter 2. Hardware Overview ..............3 Chapter 3. Sensor Installation & Add/Remove Sensor into System ..5 Sensor installation ....................5 Adding the Sensor to the System ................5 Positioning &... -
Page 3: Chapter 1. Introduction
Chapter 1. Introduction This Motion Sensor is designed to be used for indoor inactivity detection. When mounted properly, It can monitor large and open areas of your home like the main entrance, living room, and family room. When the system does not detect motion for a time period that surpasses the preset inactivity threshold time that you designate in the Home8 app, the app will automatically send out inactivity alerts. -
Page 4: Chapter 2. Hardware Overview

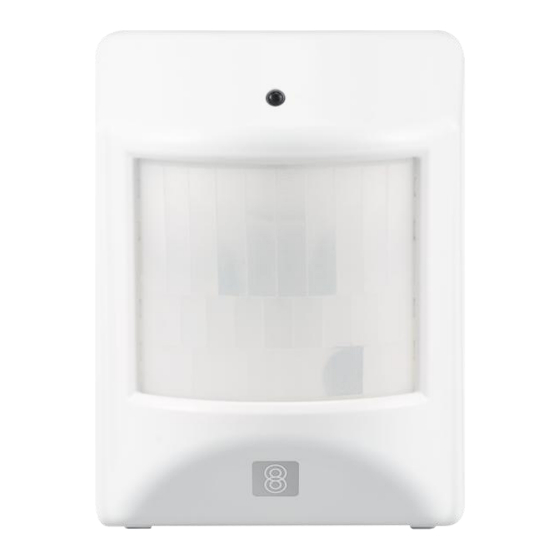

Chapter 2. Hardware Overview This section provides an overview of the inactivity sensor. Inactivity Alert Sensor User Guide V1.0 2017... - Page 5 Inactivity Alert Sensor User Guide V1.0 2017...
-
Page 6: Chapter 3. Sensor Installation & Add/Remove Sensor Into System
Chapter 3. Sensor Installation & Add/Remove Sensor into System 3.1 Sensor installation 1. Release cover tab to open the cover. 2. Insert CR123A battery, and put the cover back. (Please make sure the battery polarity before inserting.) 3. Sensor itself takes around 10 seconds to warm up, and LED will blink 7 times during sensor warm 4. - Page 7 1. Tap the menu icon to show the sidebar menu. 2. Tap “Device Management”. If you have more than one Security Shuttle, you may need to swipe left more than once to find the one you wish the sensor to connect to. After selecting the Security Shuttle, tap the plus icon “+”...
- Page 8 3. Select “Sensor”. 4. Follow the on-screen instructions. When finished, press “Next”. Inactivity Alert Sensor User Guide V1.0 2017...
- Page 9 5. After scanning the QR code located on the bottom of the sensor, the “sensor adding” process will begin. The process will take approximately 1 to 2 minutes. 6. When the activation is completed, the sensor will be added to the device management page. In the illustration shown below, the name of the Security Shuttle is “Location 1”...
-
Page 10: Positioning & Installing Sensor
3.3 Positioning & Installing Sensor After the “sensor adding” process has been completed, you can place the device at the desired location. For best performance, we recommend to face the sensor to open area, and place the sensor at least 2 meters above the ground. - Page 11 2. Tap “Device Management”. If you have more than one Security Shuttle, you may need to swipe left more than once to find the one you wish the sensor to connect to. After selecting the Security Shuttle, select the desired sensor that you want to remove by tapping “>”. Tap “Remove Sensor”, app will ask for confirmation if you really want to remove.
-
Page 12: Rename Sensor From System
3.5 Rename Sensor from System If you want to remove sensor from system, complete the following steps. 1. Tap the menu icon to show the sidebar menu. 2. Tap “Device Management”. If you have more than one Security Shuttle, you may need to swipe left more Inactivity Alert Sensor User Guide V1.0 2017... - Page 13 than once to find the one you wish the sensor to connect to. After selecting the Security Shuttle, select the desired sensor you want to rename by tapping “>”. Tap “>” to rename the sensor that will be shown on the app, and tap “V” to complete. Inactivity Alert Sensor User Guide V1.0 2017...
-
Page 14: Chapter 4. Sensor Operation
Chapter 4. Sensor Operation 4.1 Sensor operation modes, and way to judge valid motion Sensor has 2 different modes, “Test Mode” and “Normal Mode”. For a detailed description on the behavior of these 2 modes, please refer to following table. Mode How to enter? Condition of valid... -
Page 15: Inactive Period, And No Activity Alert
Fig.3 Illustration when multiple motions are detected during 3-minute countdown window under “Normal Mode” 4.2 Inactive Period, and no activity alert Inside Home8 app, user can set “Inactive Period” from 1hour to 24hours, one hour per step. In the meantime, sensor will continuously monitor &... -
Page 16: Low Battery Alert
4.3 Low battery alert This sensor can automatically detect current battery status, and report “low battery” when battery level is too low. When “low battery” happens, LED indicator on the sensor will blink constantly, and app will also show “low battery alert from sensor”... - Page 17 Inactivity Alert Sensor User Guide V1.0 2017...
-
Page 18: Appendix - Glossary Of Terms
Appendix – Glossary of Terms Arm: The cameras and other security related sensors in the system are actively monitoring the surroundings. Any suspicious activity that has been detected by the camera or sensor will prompt the app to immediately send a notification.
