VUB-100R Two-Way Radio Recorder
User's Guide (Rev A)
Package Contents
1 x VUB-100R Recorder
1 x USB Cable (USB to MicroUSB)
1 x Audio Cable (2.5mm to 2.5mm, for walkie talkie connection)
1 x RJ-45 Y Connector
1 x RJ-45 (Cat5) Cable
1 x User's Manual
* System software can be downloaded from eletech.com/download/VUB100R.zip. It supports
Windows 7 and above.

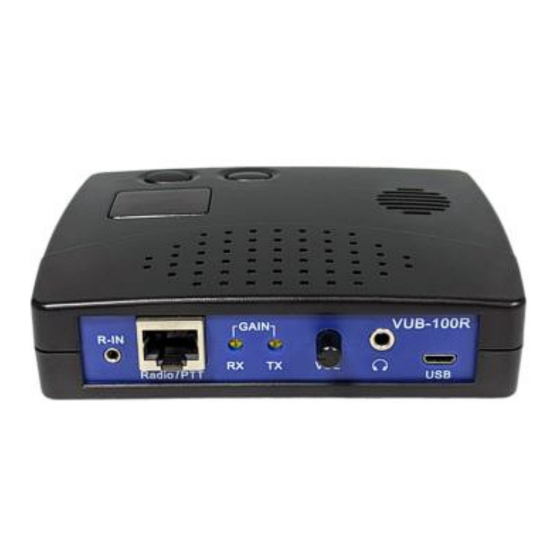

Hardware Descriptions
Power Button (on case top): press/lock down to turn on power
Power Light/Signal Strength LED (on case top): red (low), red/blue (middle), purple (high)
Monitor Button (on case top): press/lock down to turn on the internal speaker
R-IN: Connection to Walkie Talkie earphone jack
RX GAIN: Gain control for receiving signals
TX GAIN: Gain control for transmitting signals
VOL: Earphone Volume control
: Earphone Jack
Radio/PTT: RJ-45 connection to Radio PTT base station with the following pin definitions
#1, #2 = No Connection
#3, #4 = Speaker+, Speaker-
#5, #6 = Mic+, Mic-
#7, #8 = PTT, Ground

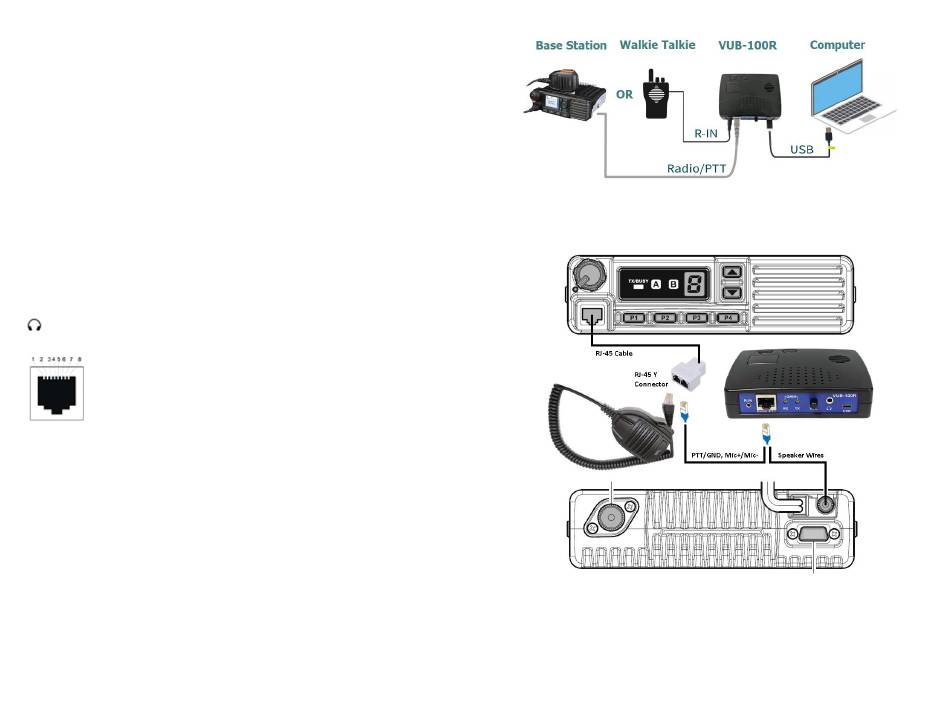

Typical System Connection Diagram
Typical Base Station Connection Diagram (Vertex VX-2100/VX-2200)
Custom-made cables are required.
Advertisement
Summary of Contents for Eletech VUB-100R
- Page 1 1 x Audio Cable (2.5mm to 2.5mm, for walkie talkie connection) 1 x RJ-45 Y Connector 1 x RJ-45 (Cat5) Cable 1 x User’s Manual * System software can be downloaded from eletech.com/download/VUB100R.zip. It supports Windows 7 and above. Typical Base Station Connection Diagram (Vertex VX-2100/VX-2200) Hardware Descriptions Power Button (on case top): press/lock down to turn on power Custom-made cables are required.
- Page 2 2. Make sure the power button is pushed/locked down. Recycle Settings Settings > Recycle Settings: It shows the total free space of the disk that the VUB-100R uses. Drag the slider to set the disk space for the recordings (minimum is 100MB). When the allo-...
