User Manual

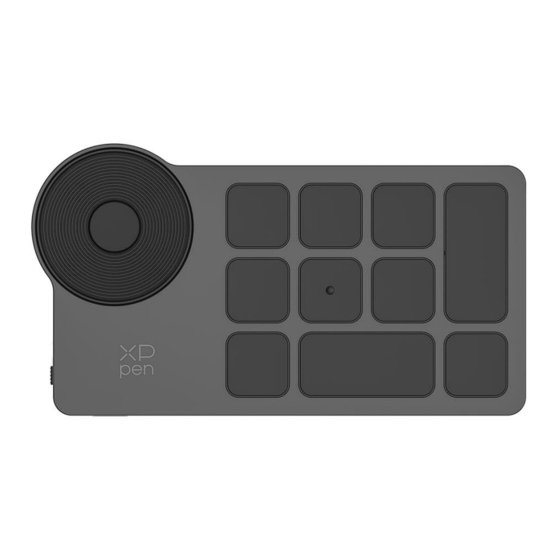

ACK05 Wireless Shortcut Remote
Contents
Introduction .............................................................................................................................................................1
Product Overview .......................................................................................................................................2
Included with Your Product .....................................................................................................................3
Connection .................................................................................................................................................... 4
Compatibility ................................................................................................................................................. 6
Product Settings ...................................................................................................................................................6
Driver Installation ........................................................................................................................................6
Introduction to Driver .................................................................................................................................8
Application ............................................................................................................................................9
Roller ...................................................................................................................................................... 9
Import/Store ...................................................................................................................................... 10
Shortcut Keys ...................................................................................................................................11
Settings ............................................................................................................................................... 14
Driver Uninstallation .........................................................................................................................................15
Introduction
Thank you for choosing XPPen ACK05 Wireless Shortcut Remote. This user
manual is specially designed to detail the product's functions and features.
Please read this manual before using the product to ensure safe and proper
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for XPPen ACK05
-
Page 1: Table Of Contents
Settings ............................... 14 Driver Uninstallation ............................15 Introduction Thank you for choosing XPPen ACK05 Wireless Shortcut Remote. This user manual is specially designed to detail the product’s functions and features. Please read this manual before using the product to ensure safe and proper... -

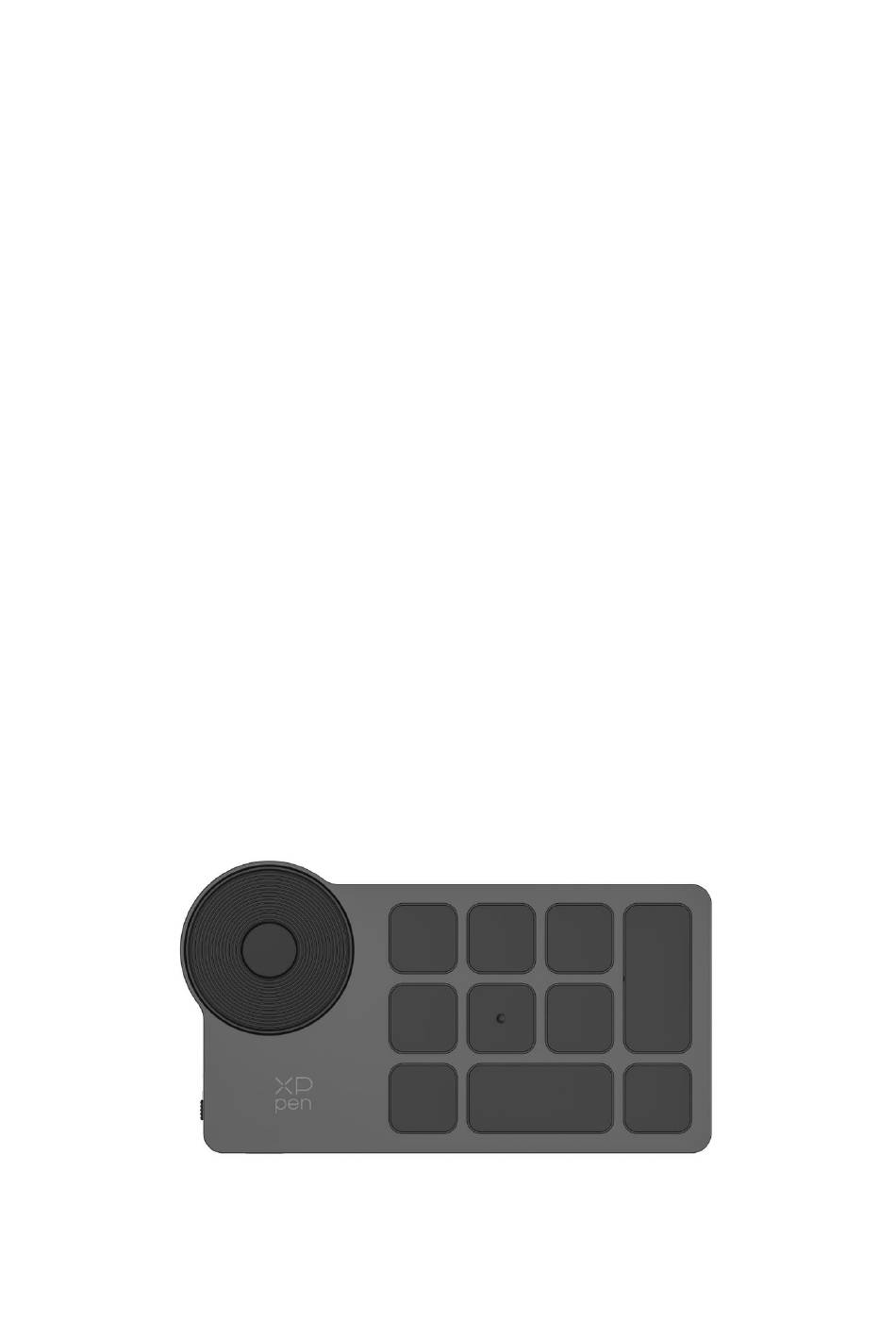

Page 2: Product Overview
use. Due to the latest product improvements, content may differ from the final product and is subject to change without prior notice. Note: The pictures in the User Manual are for reference only. The User Manual supplied with the device may vary depending on the model. Product Overview 1. -
Page 3: Included With Your Product
Default Key settings without the driver： K1-Ctrl+O K2-Ctrl+N K3-F5 K4-Shift K5-Ctrl K6-Alt K7-Ctrl+S K8-Ctrl+Z K9-Space K10-Ctrl+Shift+Z Default Key settings with the driver installed： K1-Key group switching K2-Set preview K3-F5 K4-Shift K5-Ctrl K6-Alt K7-Ctrl+S K8-Ctrl+Z K9-Space K10-Ctrl+Shift+Z * All descriptions and pictures shown are for reference only and may differ from the actual products. -
Page 4: Connection
* The list is for illustrative purposes only. Please refer to the actual product. Connection Wired Connection Connect Wireless Shortcut Remote to your computer Using USB-C to USB-A cable. Wireless Connection A. Connection to the Bluetooth receiver Plug the Bluetooth receiver into the computer and slide the power switch, with the indicator light always on in blue. - Page 5 *If the Bluetooth receiver needs to re-pair with the device, please download the wireless pairing tool from the official website of XPPen (https://www.xp-pen.com) according to the product model, and refer to the operation guide for pairing connection. B. Direct Bluetooth connection 1.
-
Page 6: Compatibility
Driver installation To get the device’s full benefits, we strongly recommend you to download and install the driver. Please download the latest driver suitable for your product model from XPPen website (https://www.xp-pen.com). Notes： 1. Before installation, please close all opened antivirus software and graphics software. - Page 7 Unzip file. Run the "dmg" file, complete the installation according to the prompts, and then add the required security settings (System Preferences > Security & Privacy > Accessibility & Bluetooth), please ensure that the PenTable_Driver has been selected, otherwise, the device and driver will not work properly.
-
Page 8: Introduction To Driver
Deb: Open the terminal window, enter "sudo dpkg –i" and execute the command after dragging the installation file into it; Rpm: Open the terminal window, enter "sudo rpm –i" and execute the command after dragging the installation file into it; Tar.gz: Unzip it first, then enter "sudo"... -
Page 9: Application
be displayed on top left corner of the driver. Multiple devices can be connected at the same time, and up to three devices are supported. After switching one of the devices, the settings can be customized for the current device, and the settings only work for the currently selected device. -
Page 10: Import/Store
Customized： Select "Customized" in the drop-down menu, and enter the keys or key combinations through the keyboard to define the clockwise and counterclockwise functions of the roller. Import/Store... -
Page 11: Shortcut Keys
Import： Import the configuration stored in the device into the driver of the selected application. Store： Store the configuration under the currently selected application to the device. Note: please use the "Import" and "Store" functions in the case of wired connection. - Page 12 Set preview： View the key function of the currently selected group, and the currently selected group must be on, click the close button on the upper right to close the window. Customize： Select "Customize" in the drop-down menu to customize the function of each key, and select "Mouse control"...
- Page 13 Keyboard ： Set keyboard shortcuts, for example, set to "Alt + A" in the 3D MAX application to use the alignment tool. Multiple groups of shortcut keys can be set. For example, type Ctrl+C, Ctrl+V, and when you press the key, the shortcut key functions set will all run once.
-
Page 14: Settings
Windows（Command） ：Add a combination key with system key. For example, when you need to type Win (Cmd) +left, press left and the drive will automatically bring the system key. Other： Precision mode: Limit the device’s work area to a certain area. This function may allow you to create more detailed drawings. -
Page 15: Driver Uninstallation
configuration. Driver uninstallation Windows： Open [Settings] → [Apps] → [Apps & features] in the start menu, find "Pentablet", click and select "Uninstall", and follow the prompts. Mac： In [Go] → [Applications], find "XP-PenPentabletpro", click "UninstallPentablet", and follow the prompts. Linux： Deb: Enter "sudo dpkg -r xp-pen-pentablet"...
