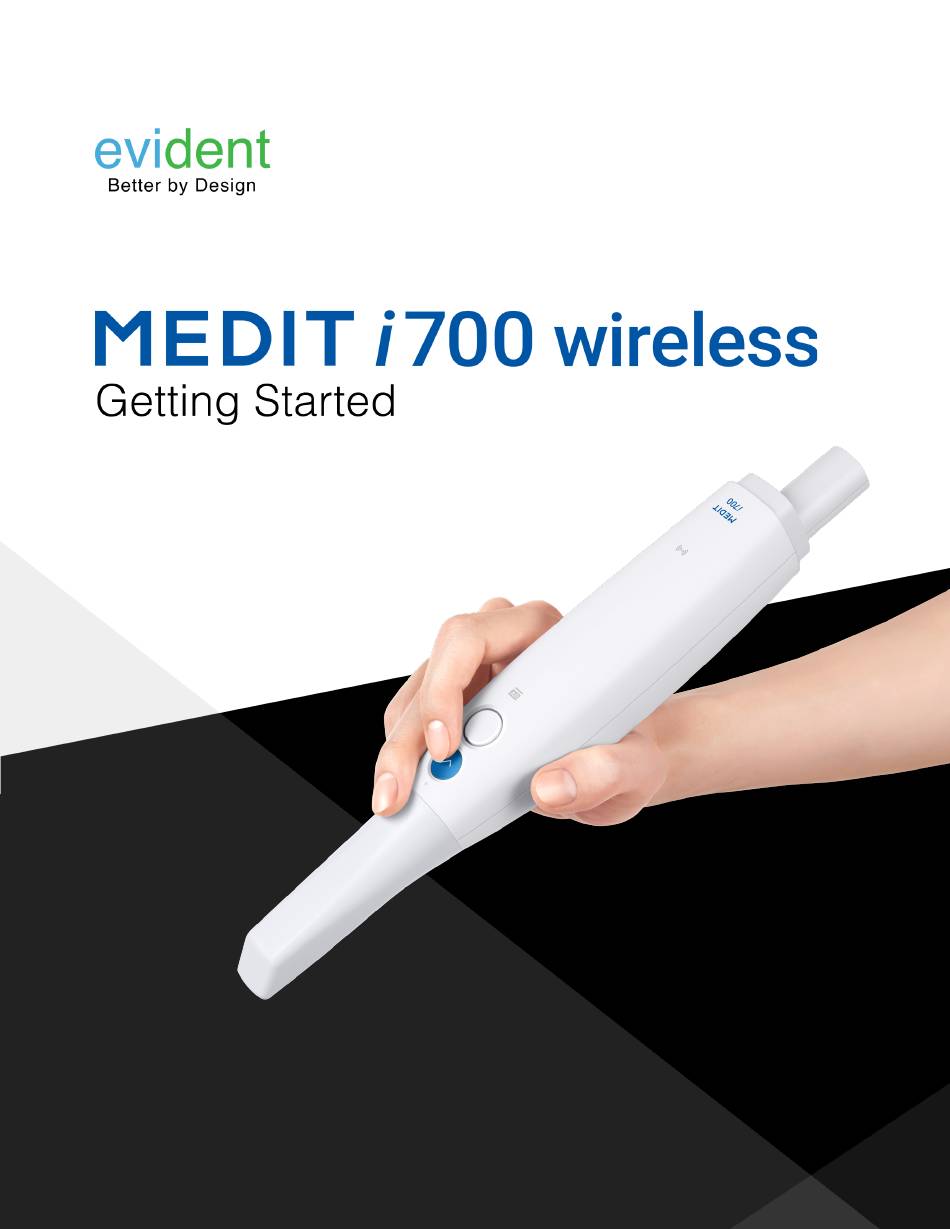

  • Page 2 Congratulations on the purchase of your new Medit i700 Wireless Intraoral Scanner. PLEASE REVIEW THESE DOCUMENTS ON “HOW TO GET STARTED”. We have developed this process to follow in sequence before you schedule your training. Once you complete the on-boarding...
  • Page 3 UNBOXING THE MEDIT i700 Wireless SCAN FOR VIDEO TUTORIAL...
  • Page 4 A. i700 wireless and its accessories 1. i700 package Main package • Accessory package • 1 | UNBOXING...
  • Page 5 B. i700 wireless Component Descriptions Item Appearance • i700 Wireless Handpiece. 1ea. • Wireless Hub • Rechargeable Battery • Extension Cable Battery 1ea. • Battery Charger • Handpiece Cover 1 | UNBOXING...
  • Page 6 • Reusable Tip • Handle • Calibration Tool • Practice Model • Wrist Strap 1 | UNBOXING...
  • Page 7 • Desktop Cradle • Wall Mount Holder • USB 3.0 Cable (C to A) • Power Delivery Cable (C to C) • Medical Adapter for Wireless Hub. • Medical Adapter for Battery Charger 1ea 1 | UNBOXING...
  • Page 8 • Power Cord • USB Flash Drive (incl. installer of Medit Scan for Clinics) • User Guide • Auto Calibration Tool (Sold Separately) 1ea (incl. 1 rechargeable battery) ⚠ Caution • Keep the practice model in a cool place away from direct sunlight. A discolored practice model may affect the results of the practice mode.
  • Page 9 C. Setting up the i700 wireless 1.1 USB C to A (1) Connect the USB 3.0 cable (C to A) to the wireless hub. (2) Connect the adapter to the wireless hub. 1 | UNBOXING...
  • Page 10 (3) Connecting the power cord to the adapter automatically powers the wireless hub. (4) Connect the USB 3.0 cable's A port connector to a PC. 1 | UNBOXING...
  • Page 11 �� The USB port is used only for signal transmission. 2.2 USB C to C (1) Connect the power delivery cable (C to C) to the wireless hub. 1 | UNBOXING...
  • Page 12 (2) Connect the power delivery cable to a PC. �� 9v DC power is supplied to the USB port. 1 | UNBOXING...
  • Page 13 3. Turning on the i700 wireless. (1) Insert the battery into the i700 wireless handpiece and press the power button. (2) When the power is supplied, the LED on the upper part of the i700 wireless handpiece turns blue. 1 | UNBOXING...
  • Page 14 (3) Three LEDs on the bottom of the i700 wireless handpiece indicate the remaining battery level. 3 lights: 80 – 100% • 2 lights: 50 – 79% • 1 light: 20 – 49% • 1 blinking light: 1 – 19% •...
  • Page 15 INSTALLING THE MEDIT LINK SOFTWARE...
  • Page 16 A. Checklist before installation *Make sure to check the following before installing the Medit Link application. i) Ensure that your Windows system as well as your device drivers are up-to-date. ii) Disconnect the i700's USB 3.0 cable from the computer before installation. •...
  • Page 17 B. Installation Guide 2. Installation guide i) Prepare the Medit Link installer file. • The Medit Link installer is enclosed in the USB flash drive included in the i700 package. Alternatively, you can also download the installer file from www.meditlink.com. Log in to the Medit Link website and click the Download Medit Link button at the bottom left of the page.
  • Page 18 iii) Select your language preference. iv) Specify the folder to install the Medit Link application to and tick the checkbox to agree to the terms of use and license to proceed to the next step. v) The installation is an automatic process that will take a few minutes. Please wait until the installation is complete and do not turn off the computer during installation.
  • Page 19 C. Power options for using the i700 i) Go to Control Panel > All Control Panel Items > Power Options > Change advanced power settings > USB settings • Disable USB selective suspend setting ii) Go to Control Panel > All Control Panel Items > Power Options > System Settings •...

  • Page 20: Getting Started

    GETTING STARTED...
  • Page 21 A. Access to Medit Link online There are two ways to access the Medit Link online. i) Go to https://www.medit.com/ via your Chrome browser. ii) Accessing via the Medit Link application from desktop • Launch the Medit Link application by clicking the desktop icon. 3 | GETTING STARTED...
  • Page 22 B. Signing into Medit Link i) Click Sign up if you need to create an account and you will be automatically redirected to the Medit Link account creation page. ii) If you already have an account, click Log in at the bottom of the screen and you will be redirected to the login page on the Medit Link website.
  • Page 23 CALIBRATING THE MEDIT i700 Wireless...
  • Page 24 A. Calibrating the i700 wireless 1. Why is it necessary to calibrate on a regular basis? • Calibration is required on a regular basis in order to develop correct 3D models. • You may set the calibration period in the Medit Scan for Clinics > Menu > Settings > Calibration Period (Days).
  • Page 25 8. When data acquisition is complete at position (1), turn the dial to the next position. 9. Repeat the steps for positions (2) through (8), as well as the (LAST) position. 10. When data acquisition is complete at the (LAST) position, the system will automatically calculate and display the calibration results.
  • Page 26 B. How to use the i700 wireless hub The i700 Wireless is a wireless device that operates through a wireless module. For this reason, the i700 Wireless handpiece has a transmitter and the wireless hub has a receiver. The i700 Wireless wireless system uses two types of frequencies to transmit data and control the i700 Wireless handpiece.
  • Page 27 i700 Wireless uses two antenna modules: 60 GHz for data transmission and 2.4 • GHz for the control. The actual frequency depends on the local regulations. • The actual operational range is up to 5 m, and it may vary depending on the environment.
  • Page 28 C. How to use the i700 wireless's batteries The i700 wireless kit includes two types of power supply for the scanner handpiece: three rechargeable batteries and an extension cord battery. (1) Rechargeable Battery Li-ion • • 3.6 V, 3100 mAh, 11.6 Wh Insert the battery into the bottom of the i700 wireless •...
  • Page 29 D. How to use the battery charger Connect the adapter port to the battery charger power port to supply power. The power turns off when the adapter port is removed. Insert the rechargeable battery into the battery charger with the charging terminals oriented correctly.
  • Page 30 The battery charger is only for rechargeable batteries. It takes up to 2 hours and 30 minutes to be fully charged and the charging time may vary depending on the user environment and the battery cycle count. �� The LED on the charger blinks in blue when the battery is charging. When fully charged, the LED lights up in blue.
  • Page 31 D. Handle, Cradle, and Wall Mount Holder A wireless signal transmitter is situated where the i700 wireless logo is on the i700 wireless body. You may hold the region where the transmitter is positioned according to your experiences and routines. The wireless hub's communication may be hampered if the transmitter area is covered.
  • Page 32 3. Fully fasten the bolts of the handle mounting hole on the i700 wireless body. 4. Tighten it clockwise using the knob on the handle. 4 | CALIBRATION...
  • Page 33 5. You can now use it by holding the handle. If you want to remove the handle, proceed in the reverse order of this instruction. �� How to mount the scanner on the cradle • With the handle Without the handle •...
  • Page 34 �� How to install the Wall Mount Holder 4 | CALIBRATION...

  • Page 35: Scanning Technique

    SCANNING TECHNIQUE SCAN FOR VIDEO TUTORIAL...
  • Page 36 A. Paths 1. Recommended Scan Path for Full Arch: 2. Recommended Scan Path for Occlusion | SCANNING TECHNIQUE...
  • Page 37 RESOURCES...
  • Page 38 A. VIDEOS How to Install the Medit Link Software https://youtu.be/YGeYz_9vAiw How to Clean Your Medit IOS Scanner Tip https://youtu.be/L1Z5UzIBctE?list=PLerAtL3Ve9rHxt0FqETiAsdIaRdPZ82xd&t=7 How to Send Your Scan File to the Lab https://youtu.be/zEn8aKSbpnI?list=PLerAtL3Ve9rHxt0FqETiAsdIaRdPZ82xd Preparation for Intraoral Scanning in Clinic https://youtu.be/6h_hhaG1xjI | RESOURCES...
  • Page 39 Intraoral Scan Strategy https://youtu.be/xMXPtvkRZ4E Intraoral Scanning Strategy & Basic Functionalities https://youtu.be/EimJljL6unM Crown & Implant Treatment Workflow https://youtu.be/RluEOCaW7pY Different Resources for Medit Training and Technical Support https://youtu.be/Y2zn22cZIeA?list=PLerAtL3Ve9rHxt0FqETiAsdIaRdPZ82xd Troubleshooting: Connection Fail https://youtu.be/mWMUABEzbQ8?list=PLerAtL3Ve9rHxt0FqETiAsdIaRdPZ82xd | RESOURCES...
  • Page 40 B. RESOURCES Evident Digital Academy https://www.youtube.com/playlist?list=PLerAtL3Ve9rHxt0FqETiAsdIaRdPZ 82xd Medit Academy https://www.youtube.com/channel/UCO7BVdcP-7M2zO0zavnzu1g Medit Help Center https://support.medit.com/hc/en-us | RESOURCES...
  • Page 41 If you require further assistance on getting started or acquiring the correct methods and techniques related to the i700 wireless scanner, please visit: meditsupport@evidentlabs.com You may also contact Evident’s Medit Support at +1 (877) 909 7770...
