Summary of Contents for AVE BASSBOY

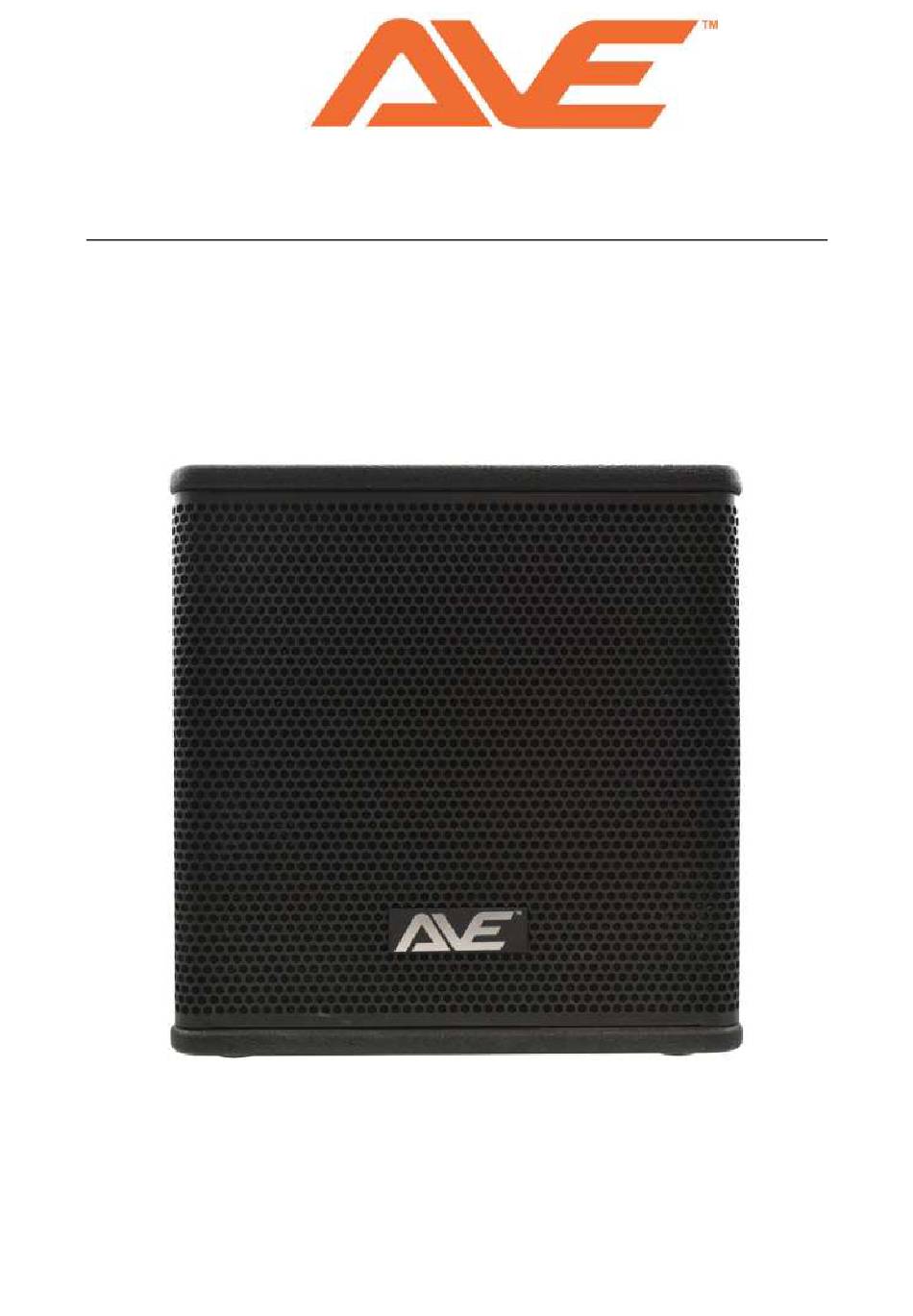

- Page 1 BASSBOY POWERED SUBWOOFER User Manual...
- Page 2 T able of Contents Safety ..................3 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Description ................5 ................Features Quick Start Guide ..............6 Specifications................7...
- Page 3 Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS SPEAKER TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR AMPLIFIER COVER OR ATTEMPT TO OPEN THE SPEAKER.
- Page 4 Precautions If an AVE subwoofer is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE subwoofers in environments that are below 0°C OR exceed +40°C.
- Page 5 And features a bass reflex design fitted with a custom 12″ neodymium woofer and large port allowing for improved airflow and sound output. True to the Bassboy family, the Bassboy features a compact enclosure measuring under 50cm³ and weighing only 23.5 kg.
- Page 6 Quick Start Guide To set up your Bassboy subwoofer up, follow the below steps; 1. Connect the IEC AC power cord from a grounded mains 240v power source. 2. Connect the XLR line input to the subwoofers input. 3. Adjust the gain/volume knob to 0 (off), and set the frequency knob to its highest setting 4.
- Page 7 Specifications Product number: BASSBOY Product type: PA Subwoofer Type: Powered, Bass Refelx Low driver dimensions: 12″ Low driver dimensions (mm): 304.8 mm LF Voice Coil Size: 2.5” LF Voice Coil Size: (mm) 6.35 mm Amplifier: Class D Peak power: 600W (peak) 37 Hz –...
