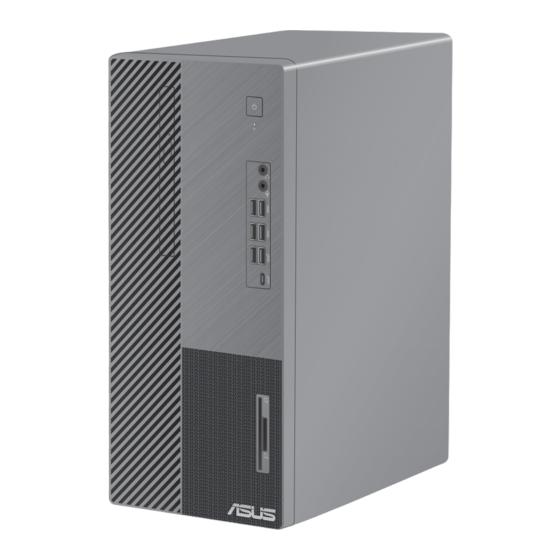

Summary of Contents for Asus D900MD
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asus ExpertCenter D900MDES i7-12700 / 16GB / 512GB / Windows 11 Pro o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation ASUS Desktop PC User Guide D900MD/D900MDES/M900MD...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Configuring the USB ports using the BIOS................36 Configuring the HDD security setting using the BIOS ............37 Chapter 4 Connecting to the Internet Wired connection ...........................39 Wi-Fi moving antenna installation ...................43 Chapter 5 Using ASUS Business Manager ASUS Business Manager ......................44 Chapter 6 Troubleshooting Troubleshooting ..........................45... - Page 4 Appendix Working with Windows® Starting for the first time ......................53 Start menu ............................53 Windows® apps ..........................54 Connecting to wireless networks .....................54 Connecting to wired networks ....................55 Turning your computer off ......................55 Putting your computer to sleep ....................55...
-
Page 5: Notices
Notices ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions. - Page 6 Avertissement relatif aux batteries Lithium ATTENTION ! Danger d’explosion si la batterie n’est pas correctement remplacée. Remplacer uniquement avec une batterie de type semblable ou équivalent, recommandée par le fabricant. Jeter les batteries usagées conformément aux instructions du fabricant. Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science, and Economic Development Canada licence exempt RSS standard(s).
- Page 7 Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003. Déclaration du Département Canadien des Communications Cet appareil numérique ne dépasse pas les limites de classe B en terme d’émissions de nuisances sonores, par radio, par des appareils numériques, et ce conformément aux régulations...
- Page 8 ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/support/. The Wi-Fi operating in the band 5150-5350MHz shall be restricted to indoor use for countries listed...
- Page 9 The Radio Equipment Regulations 2017 (S.I. 2017/1206). Full text of UKCA declaration of conformity is available at https://www.asus.com/support/. The Wi-Fi operating in the band 5150-5350MHz shall be restricted to indoor use for the country...
-
Page 10: Safety Information
Safety information Disconnect the AC power and peripherals before cleaning. Wipe the Desktop PC using a clean cellulose sponge or chamois cloth dampened with solution of nonabrasive detergent and a few drops of warm water then remove any extra moisture with a dry cloth. DO NOT place on uneven or unstable work surfaces. -
Page 11: Conventions Used In This Guide
“Do not ingest battery, Chemical Burn Hazard” This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. -
Page 12: Where To Find More Information
Technical Support Engineer. Tutorial Tool-less: D900MD is tool-less design. You can disassemble the chassis by removing knurled thumb screws by hand, and replace hard disc drive and optical disc drive easily. After replacement, please assemble D900MD back to the original state. For more replacement and assembly information, please refer link as below. -
Page 13: Package Contents
Keyboard x1 (Optional) Mouse x1 (Optional) Power cord x1 Support DVD x1 Recovery DVD x1 (Optional) ASUS mouse pad x 1 Installation Guide x1 Warranty card x1 (Optional) • If any of the above items is damaged or missing, contact your retailer. - Page 14 Chapter 1: Getting started...
-
Page 15: Chapter 1 Getting Started
Read the ASUS Warranty Card before setting up your ASUS Desktop PC. • The Desktop PC does not support Windows® 7 operating system. ASUS is not responsible for any loss or damage incurred by installing Windows® 7. • Be careful when handling the desktop PC to prevent the risk of injury. - Page 16 D900MD/D900MDES/M900MD Front panel Power button & power indicator. Press this button to turn on your computer. The button also indicates if the computer is on. HDD indicator. The LED lights up or blinks to indicate the status of the HDD.
- Page 17 D900MD/D900MDES/M900MD Rear panel PS/2 mouse port (green). This port is for a PS/2 mouse. PS/2 keyboard port (purple). This port is for a PS/2 keyboard. DisplayPorts. These ports are for DisplayPort-compatible devices. HDMI® port. This port is for a High-Definition Multimedia Interface (HDMI®) connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content.
- Page 18 Audio 2, 4, 5.1, or 7.1-channel configuration Headset Port 4-channel 5.1-channel 7.1-channel 2-channel Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out Pink (Rear panel) Mic In Mic In...
- Page 19 DO NOT block the air vents on the chassis. Always provide proper ventilation for your computer. VGA port. This port is for VGA-compatible devices such as a VGA monitor. Parallel port (optional). This 25-pin port connects a parallel printer, a scanner, or other devices. ASUS Desktop PC...
-
Page 20: Installing Memory In Your Computer
Installing memory in your computer This desktop PC comes with four Double Data Rate 5 (DDR5) Dual Inline Memory Module (DIMM) sockets. The figure illustrates the location of the DDR5 DIMM sockets. DIMM_A1 Channel Sockets DIMM_A2 Channel A DIMM_A1 & DIMM_A2 DIMM_B1 Channel B DIMM_B1 &... - Page 21 Align the notch on the bottom edge of the DIMM with the key of the DIMM socket, and then firmly insert the DIMM into the socket until the ejector snaps back into place. START RESET Close your computer case. The above pictures are for reference only. The inner structure of the desktop PC may vary. ASUS Desktop PC...
-
Page 22: Setting Up Your Computer
Plug the monitor to a power source. • If your computer comes with an ASUS Graphics Card, the graphics card is set as the primary display device in the BIOS. Hence, connect your monitor to a display output port on the graphics card. - Page 23 Connect one end of the power cord to the power connector on the rear panel of your computer and the other end to a power source. For safety purpose, ONLY connect the power cord to a grounded electrical outlet. ASUS Desktop PC...
-
Page 24: Turning Your Computer On
Turning your computer ON This section describes how to turn on your computer after setting up your computer. Turning your computer ON To turn your computer ON: Turn your monitor ON. Press the power button on your computer. Power button Wait until the operating system loads automatically. -
Page 25: Chapter 2 Connecting Devices To Your Computer
You can enable or disable the front and rear USB 3.2 Gen 2, USB 3.2 Gen 2 Type-C®, USB 3.2 Gen 1 and USB 2.0 ports individually from the BIOS Setup. Refer to the Configuring the USB ports using the BIOS section in Chapter 3 of this user manual for details. Front panel Rear panel ASUS Desktop PC... -
Page 26: Connecting Microphone And Speakers
Connecting microphone and speakers This desktop PC comes with microphone ports and speaker ports on both the front and rear panels. The audio I/O ports located on the rear panel allow you to connect 2-channel, 4-channel, 5.1-channel, and 7.1-channel stereo speakers. •... - Page 27 Connecting 2-channel Speakers Connecting 4-channel Speakers ASUS Desktop PC...
- Page 28 Connecting 5.1-channel Speakers Connecting 7.1-channel Speakers Chapter 2: Connecting devices to your computer...
-
Page 29: Changing To The External Audio Output
For the location of the rear Line Out port, refer to the section Getting to know your computer. Tick Front Speaker Out, then click Tick Line In, then click OK. The audio output will now be from the external audio device. The Audio Manager screenshots above are for reference only. ASUS Desktop PC... -
Page 30: Connecting Multiple External Displays
Connecting multiple external displays Your desktop PC may come with VGA, HDMI®, or DVI ports and allows you to connect multiple external displays. Setting up multiple displays When using multiple monitors, you are allowed to set display modes. You can use the additional monitor as a duplicate of your main display, or as an extension to enlarge your Windows desktop. -
Page 31: Connecting An Hdtv
Connect a High Definition TV (HDTV) to the HDMI® port of your computer. • You need an HDMI® cable to connect the HDTV and the computer. The HDMI® cable is purchased separately. • To get the best display performance, ensure that your HDMI® cable is less than 15 meters. ASUS Desktop PC... - Page 32 Chapter 2: Connecting devices to your computer...
-
Page 33: Chapter 3 Using Your Computer
• Use your Desktop PC in a comfortably-lit area, and keep it away from sources of glare such as windows and straight sunlight. • Take regular mini-breaks from using your Desktop PC. ASUS Desktop PC... -
Page 34: Using The Memory Card Reader (Optional)
Using the memory card reader (Optional) Digital cameras and other digital imaging devices use memory cards to store digital picture or media files. The built-in memory card reader on the front panel of your system allows you to read from and write to different memory card drives. -
Page 35: Using The Optical Drive (On Selected Models Only)
While the system is on, do either of the following to eject the tray: • Press the eject button on the drive bay. From the Start menu, click File Explorer, right-click the CD/DVD drive icon, and click • Eject. Remove the disc from the disc tray. ASUS Desktop PC... -
Page 36: Configuring The Usb Ports Using The Bios
Configuring the USB ports using the BIOS You can enable or disable the USB 3.2 Gen 2, USB 3.2 Gen 2 Type-C®, USB 3.2 Gen 1 and USB 2.0 ports from the BIOS Setup. To disable or enable the USB 3.2 Gen 2, USB 3.2 Gen 2 Type-C®, USB 3.2 Gen 1 and USB 2.0 ports: Press <Delete>... -
Page 37: Configuring The Hdd Security Setting Using The Bios
To clear the user password, follow the same steps as in changing a user password, but press <Enter> when prompted to create/confirm the password. After you clear the password, the Set User Password item on top of the screen shows Not Installed. ASUS Desktop PC... - Page 38 Chapter 3: Using your computer...
-
Page 39: Chapter 4 Connecting To The Internet
Configure the necessary Internet connection settings. • Contact your network administrator for details or assistance in setting up your Internet connection. • For more details, refer to the sections Configuring a dynamic IP/PPPoE network connection or Configuring a static IP network connection. ASUS Desktop PC... - Page 40 Connecting via a local area network (LAN) To connect via a LAN: Connect one end of an RJ-45 cable to the LAN (RJ-45) port on the rear panel of your computer and the other end to your LAN. RJ-45 cable Turn on your computer.
- Page 41 From the Open Network and Sharing Center screen, click Change Adapter settings. Right-click on your LAN and select Properties. Click Internet Protocol Version 4(TCP/ IPv4) and click Properties. Click Obtain an IP address automatically and click OK. Continue to the next steps if you are using PPPoE connection. ASUS Desktop PC...
- Page 42 Return to the Network and Sharing Center and then click Set up a new connection or network. Select Connect to the Internet and click Next. Select Broadband (PPPoE) and click Next. Follow the next onscreen instructions to complete the setup. Configuring a static IP network connection To configure a static IP network connection: Repeat steps 1 to 4 of the previous section.
-
Page 43: Wi-Fi Moving Antenna Installation
Wi-Fi moving antenna installation Installing the ASUS Wi-Fi moving antenna Connect the bundled ASUS Wi-Fi moving antenna connector to the Wi-Fi ports at the back of the chassis. • Ensure that the ASUS Wi-Fi moving antenna is securely installed to the Wi-Fi ports. - Page 44 Chapter 6: Troubleshooting...
-
Page 45: Chapter 5 Using Asus Business Manager
Chapter 5 Using ASUS Business Manager ASUS Business Manager ASUS Manager provides a set of tools for customizing and maintaining your ASUS computer. For detailed information, please refer to https://www.asus.com/support/FAQ/1042634/. The URL may be changed without notice. ASUS Desktop PC... -
Page 47: Chapter 6 Troubleshooting
If the keyboard is not responding, press and hold the Power button on your chassis until the computer shuts down. Then press the Power button to turn it on. I cannot connect to a wireless network using the ASUS WLAN Card (on selected models only)? •... - Page 48 The arrow keys on the number key pad are not working. Check if the Number Lock LED is off. When the Number Lock LED is on, the keys on the number key pad are used to input numbers only. Press the Number Lock key to turn the LED off if you want to use the arrow keys on the number key pad.
- Page 49 Check if the disc is centered in the tray, especially for the discs with non-standard size or shape. • Check if the disc is scratched or damaged. The DVD drive eject button is not responding. From the Start menu, click File Explorer. Right-click , then click Eject from the menu ASUS Desktop PC...
- Page 50 • Ensure that the power cord is properly Your computer’s power cord connected. is not properly connected. • Use other compatible power cord. PSU (Power supply unit) Contact the ASUS Service Center about problems installing another PSU on your computer. Display Problem Possible Cause Action •...
- Page 51 Ensure the LAN LED is on. If not, try LAN cable problems another LAN cable. If it still does not work, contact the ASUS service center. Your computer is not Ensure that your computer is properly Cannot access the properly connected to a connected to a router or hub.
- Page 52 • Remove the extra memory modules Memory module problems The system often that you have installed, then try again. hangs or freezes. • Contact the ASUS Service Center for assistance. There is not enough Move your computer to an area with air ventilation for your better air flow.
- Page 53 • Contact the ASUS Service Center for assistance. If the problem still persists, refer to your Desktop PC’s warranty card and contact the ASUS Service Center. Visit the ASUS Support site at https://www.asus.com/support for the service center information.
- Page 54 Chapter 6: Troubleshooting...
-
Page 55: Appendix Working With Windows
Launching the Start menu You can launch the Start menu in two ways: • Position your mouse pointer over the Start icon on your desktop then click it. • Press the Windows® logo key on your keyboard. ASUS Desktop PC... -
Page 56: Windows® Apps
Opening programs from the Start menu One of the most common uses of the Start menu is opening programs installed on your Computer. You can open programs in two ways: • Position your mouse pointer over the program then click to launch it. •... -
Page 57: Connecting To Wired Networks
From the log-in screen, select the power icon then select Sleep. to launch Shut Down Windows. Select Sleep from the drop-down list • Press then select OK. You can also put your computer to Sleep mode by pressing the power button once. ASUS Desktop PC...
