Summary of Contents for Ecomax ECA80

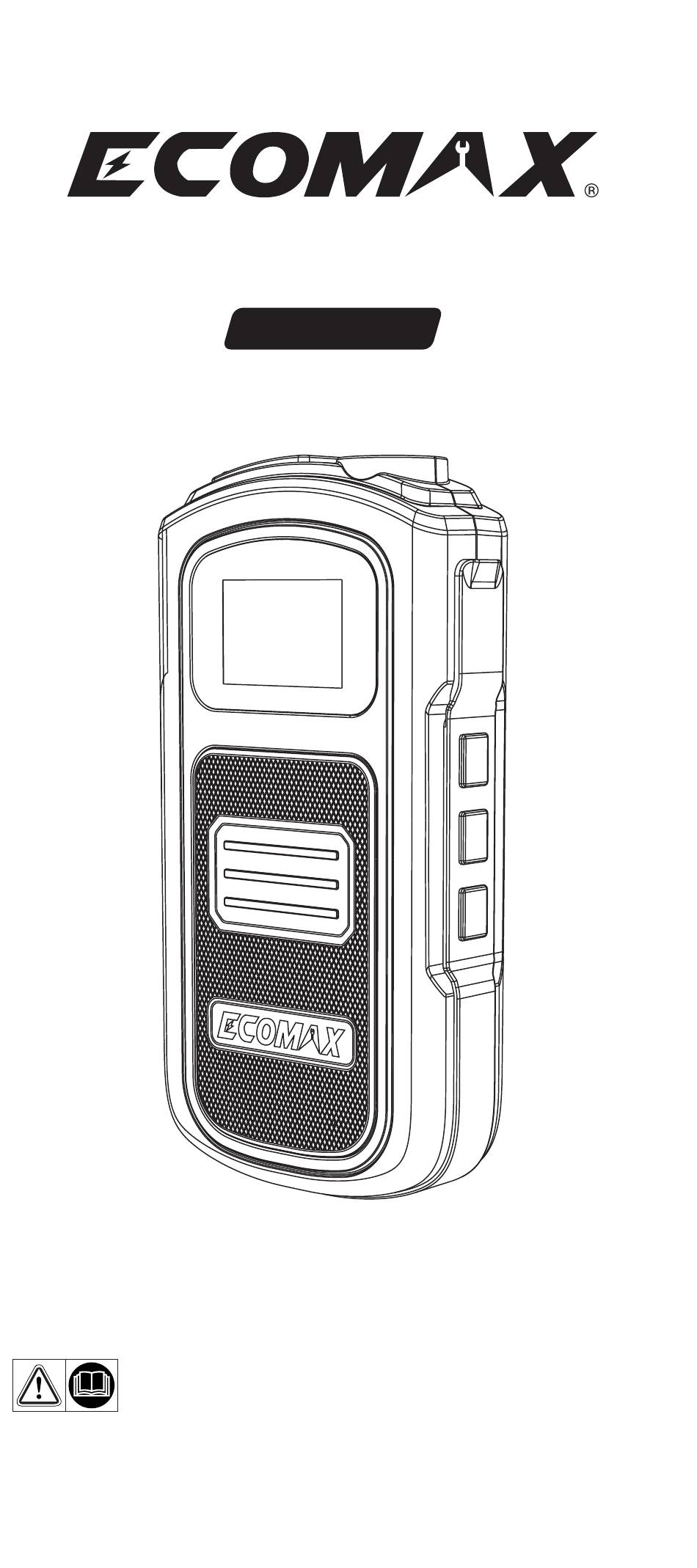

- Page 1 JUMP STARTER Model: ECA80 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save this instructions in a safe place and on hand so that they can be read when required.
-
Page 2: Table Of Contents
CONTENTS INSTALLING THE HOSE REEL A. PRODUCT LAYOUT B. OPERATION GUIDANCE C. PARTS LIST D. TECHNICAL SPECIFICATIONS E. FAQ F . TROUBLE SHOOTING G. TOXIC AND HARMFUL SUBSTANCES H. WARNING I . WARRANTY INFORMATION WARRANTY... -
Page 3: Installing The Hose Reel
INSTALLING THE HOSE REEL Thank you for choosing the EPower! Always follow basic safety precautions when using electrical appliances. Read all instructions carefully, Please keep this instruction manual for easy reference. A. PRODUCT LAYOUT Switch Digital Display PD30W Jump start socket In/Output port LED Flash Light Quick Charge... -
Page 4: Operation Guidance
B. OPERATION GUIDANCE Digital display: Power display: 100%, indicating that the battery has 100% power; when the product is low, it needs to be delivered in time. Charge the product. When"IN"is displayed, it indicates that the PD30W charging function is being used. When “OUT” is displayed, it means that the PD30W output function is being used. - Page 5 GREEN LIGHT on: Telling the connection is correct and the circuit is working, you can turn on the engine to jump-start directly. RED LIGHT on with buzzing: Telling the connection is wrong, and buzzing to alarm to correct the clamps as step 2 mentioned above, Beep, Beep wait until the GREEN LIGHT is on to turn on the engine.
- Page 6 No Lights on, No buzzing: Saying the vehicle's battery maybe damaged, after confirm the clamps connection is correct, press the “BOOST” button, wait GREEN LIGHT is on, and then turn on the engine within 30s. 4. Start the vehicle. 5. When the vehicle is started, remove the jumper cable from the vehicle battery.
-
Page 7: Parts List
LED flash light Press the switch 3 seconds to start the LED flash light. There are 4 modes of LED light appear in order (normal. strobe. SOS. off) if you press slightly. C. PARTS LIST Quantity Parts Name Host Switch cable Intelligent jumper cable Type-C Charge Cable D. -
Page 8: Faq
E. FAQ Q. How to turn off this appliance? A. This appliance will power off automatically when no load or charging is complete Q. How long time to full charge the EPOWER? A. Approx.2 hours through the PD30W input port. Q. -
Page 9: Toxic And Harmful Substances
G. TOXIC AND HARMFUL SUBSTANCES Composition and amount of toxic and harmful substances in Epower. Cr(Vi) PBDE O ： Indicate all homogeneous materials' hazardous substances content are below the MCV limit specified in the Standard 2002/95/EC(RoHs). H. WARNING 1. Read the instruction manual carefully before using this unit. 2. - Page 10 11. Don’t use the jumper cable to charge other equipments. 12. Do NOT store in locations where the temperature may exceed 60℃ 13. Charge only at ambient temperature between 0℃ and 45℃. 14. Do not expose the product to rain or water 15.
-
Page 11: Warranty Information
I. WARRANTY INFORMATION 1. We offer a limited warranty for this product against any defects in material and workmanship for a period of 6 months from the date of purchase by the end user/consumer. The conditions of the warranty are as follows: 2. -
Page 12: Warranty
WARRANTY ALTON INDUSTRY LTD. GROUP 2-YEAR LIMITED WARRANTY This warranty covers any defects in materials or workmanship of the enclosed product. Alton Industry Ltd. Group will repair or replace any defective materials due to craftsmanship of the product. This warranty does not cover any problem caused by misuse, abuse, accidents or acts of God, such as floods or hurricanes.
