A2132FAC User Guide
WA R N I N G : D O N O T c o n n e c t t h i s
thermostat to systems other than Friedrich
approved VRP units. DO NOT connect this
device to units such as: base-board
heaters, line/high-voltage fan-coil, or
systems with transformers. Improper use
of this device can result in personal injury,
and/or property damage.
Introduction: The A2132_FAC thermostat is a VRP system
powered (12VDC) wireless thermostat designed for
Friedrich VRP heating ventilation and air-conditioning
systems. The ZigBee wireless-controller allows the device to
operate as a long-range ZigBee message repeating router.

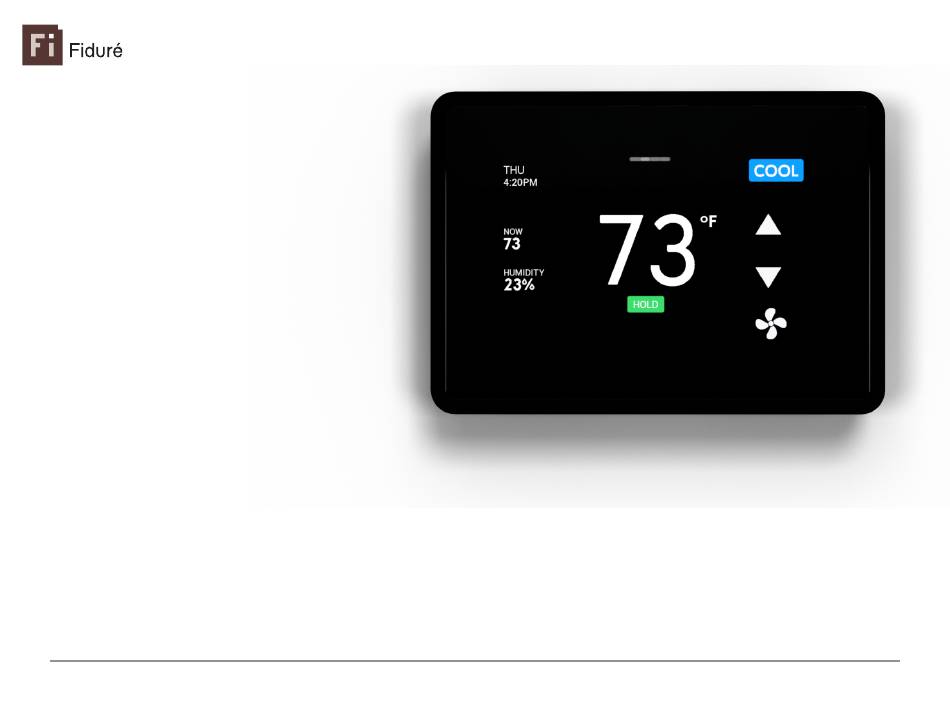

Using the device: Using the device and operating the on-
screen menus is straight forward with the built-in smart
touch display.
Adjusting the Set-point: Tap the up or down arrow to
adjust the set-point for the current mode.
Air Circulation Fan: Tap the fan icon to switch between
auto and always-on fan.
NOTE: It is unadvisable to set the fan to ON in cool code.
Continuous running of the fan prevents the air-conditioner
from being able to remove moisture from the air and could
potentially lead to other health hazards such as mold.
1
Doc. 22012502

Advertisement

loading
Need help?

Need help?

Do you have a question about the A2132FAC and is the answer not in the manual?

Questions and answers

Related Manuals for Fidure A2132FAC

Summary of Contents for Fidure A2132FAC

  • Page 1 A2132FAC User Guide WA R N I N G : D O N O T c o n n e c t t h i s thermostat to systems other than Friedrich approved VRP units. DO NOT connect this device to units such as: base-board heaters, line/high-voltage fan-coil, or systems with transformers.
  • Page 2 Main Menu: To access the main menu, tap the mode (HEAT, COOL, or OFF) on the top right corner of the screen. The main menu allows for quick access to changing modes, fan operation, and other settings if enabled by the system operator.
  • Page 3 Settings Menu: To access this menu, tap settings(gear icon) in the main menu. This menu allows for changing of the temperature unit, time format, display brightness, and access to the schedule hold menu. Display Brightness: It is possible to turn off the display backlight altogether.
  • Page 4 Hold Menu: Access this menu via Main Menu -> Settings -> Temperature Hold Menu. This menu allows for modifying the operator of the schedule. Programming the schedule can be performed throughout the schedule menu, or Over- The-Air via Mobile or Web interface provided by the building operator.
  • Page 5 Clock Screen: Before a schedule can be active, the time and date can be set through the clock screen. Adjust the time and date components using the +/- buttons and tap the back arrow at the top left to record the time and date.

...
  • Page 6 Schedule Screen: This screen allows for creation and editing of the stored schedule intervals. Tapping a different day or different interval name will save the current interval. 1) Adjust the start time of the interval using the +/- and AM/ PM (12 HR clock) buttons.
  • Page 7 Factory Reset: A reset switch is hidden behind the first grill on the top right (see image below). Use a non-metal tool to contact and press the reset switch. Single Press: A single press of the switch will reboot the device without changes to the stored information.

  • Page 8: Wiring Information

    Wiring information Use 18AWG shield twisted wiring or other Friedrich approved wire. B/D- A/D+ Doc. 22012502...
  • Page 9 3.281in 83.35mm (RD1) 0.886in 5.055in 22.50mm 128.39mm 0.887in 0.887in 22.52mm 22.52mm (RD4) (RD3) Fidure Corp. www.fidure.com Support@Fidure.com Doc. 22012502...
