User Guide

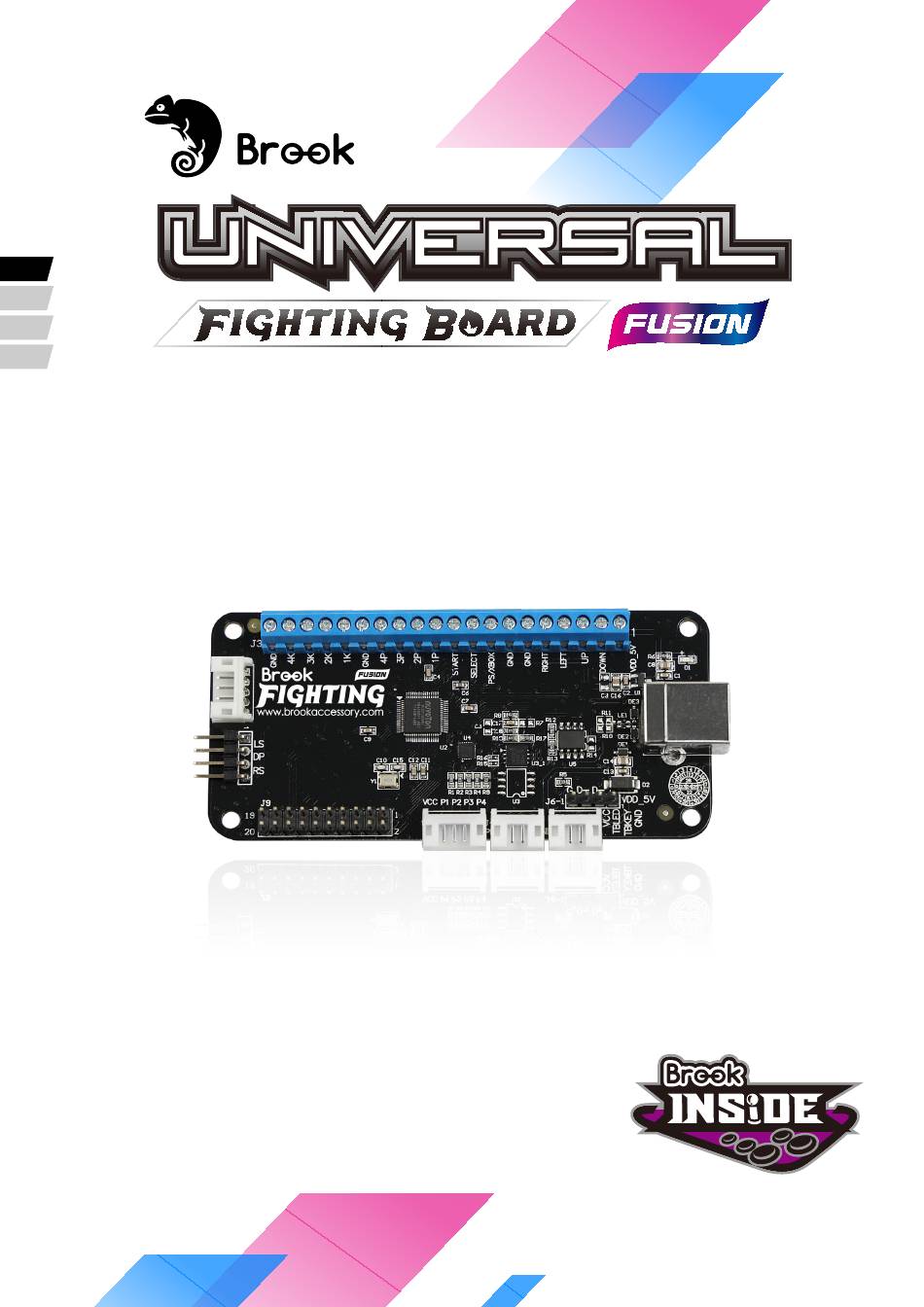

This product combines the Universal
Fighting Board and UFB-UP5 into one.
It is a fighting board that continues
the functions of the Universal Fighting
Board and is compatible with fighting
games on the PS5 console.
© Brook All Rights Reserved.
www.brookaccessory.com
Advertisement
Summary of Contents for Brook UNIVERSALFIGHTING BOARD FUSION
- Page 1 This product combines the Universal Fighting Board and UFB-UP5 into one. It is a fighting board that continues the functions of the Universal Fighting Board and is compatible with fighting games on the PS5 console. © Brook All Rights Reserved. www.brookaccessory.com...
- Page 2 Basic button con guration J6-1 XBOX Nintendo PCB De ne Series Switch Stick in DP Mode D-Pad D-Pad D-Pad D-Pad □ □ △ △ × × ○ ○ LTSB RTSB Minus SELECT Create Share View START Options Options Menu Plus Stick in LS Mode Stick in LS Mode Stick in RS Mode...
-
Page 3: How To Connect
How to connect J3 Detail START SELECT PS/XBOX MENU VIEW OPTIONS SHARE GUIDE DOWN J6-1 L1/LB R1/RB △/Y □/X L2/LT R2/RT J6-1... - Page 4 How to connect J9 Pin name VDD_5V J5, J4, J8 Detail J6-1 PLAYER TURBO TURBO TOUCH PAD...
- Page 5 J5 Player LED display guide LED ON LED OFF Player Xbox One Xbox 360 J8 Turbo function setting Hold down the turbo button, then press the button for the function you want to set or cancel. The following buttons can be set to the Turbo function： 1P、2P、3P、4P、1K、2K、3K、4K、L3、R3...
- Page 6 J2 SOCD resolution mode selection Mode 0: LR Cancel & Up Priority (Default) Mode 1: Second-Input Priority (SIP) Mode 0 Mode 1 Open circuit Short circuit J7 Stick control mode selection A slide switch can be connected to switch the stick control mode.
- Page 7 Use combination keys to set stick control mode OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A Press and hold START and UP for three seconds. OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB J6-1 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT...
- Page 8 Visit our website for more information and assistance ©2023 Zeroplus Technology Co., Ltd. All Rights Reserved. Brook is the registered trademark of Zeroplus Technology Co., Ltd. The other trademark names are the used marks, trademarks or registered trademarks of the corresponding companies.
- Page 9 使用者指南 本產品將 Universal Fighting Board 與 UFB-UP5 合二為一。 是一款延續 Universal Fighting Board 功能，並 兼容使用於 PS5 主機格鬥遊戲的格 鬥板。 © Brook All Rights Reserved. www.brookaccessory.com...
- Page 10 基本按鈕配置 J6-1 XBOX Nintendo PCB De ne Series Switch Stick in DP Mode D-Pad D-Pad D-Pad D-Pad □ □ △ △ × × ○ ○ LTSB RTSB Minus SELECT Create Share View START Options Options Menu Plus Stick in LS Mode Stick in LS Mode Stick in RS Mode Stick in RS Mode...
- Page 11 如何連接 J3 配線圖 START SELECT PS/XBOX MENU VIEW OPTIONS SHARE GUIDE DOWN J6-1 L1/LB R1/RB △/Y □/X L2/LT R2/RT J6-1...
- Page 12 如何連接 J9 引腳名稱 VDD_5V J5, J4, J8 配線圖 J6-1 PLAYER TURBO TURBO TOUCH PAD...
- Page 13 J5 玩家燈號顯示指南 LED 亮 LED 滅 Player Xbox One Xbox 360 J8 連發功能設定 按住連發設定鈕 , 然後按下您要設定或取消連發功能的按鈕。 以下按鈕可以設置 Turbo 功能： 1P、2P、3P、4P、1K、2K、3K、4K、L3、R3...
- Page 14 J2 SOCD 方向衝突判定模式選擇 Mode 0: ( 默認 ) 方向左右衝突時，判定取消輸出。 方向上下衝突時，輸出方向為上。 Mode 1: 任意方向衝突時，輸出最後按下的按鈕方向。 Mode 0 Mode 1 Open circuit Short circuit J7 搖桿控制模式選擇 可以連接一個滑動開關來切換 搖桿控制模式。 J6 & J6-1 USB 接口 J6-1...
- Page 15 使用組合鍵設定搖桿控制模式 OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A 按住 START 及 UP 持續約 3 秒 OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X J6-1 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A 按住 START 及 LEFT 持續 3 秒 OPTIONS START SHARE...
- Page 16 Brook Design, LLC. Brook Gaming www.brookaccessory.com 欲了解更多詳情，請訪問我們的官方網站 ©2023 Zeroplus Technology Co., Ltd. All Rights Reserved. Brook is the registered trademark of Zeroplus Technology Co., Ltd. The other trademark names are the used marks, trademarks or registered trademarks of the corresponding companies. 202305V1.2...
- Page 17 ユーザーガイ ド 本製品は「Universal Fighting Board」と 「UFB-UP5」を組み合わせたものです。 既 存 「Universal Fighting Board」を引き続 き製品で、PS5 コンソールでの格闘ゲー ムのサポートが追加されました。 © Brook All Rights Reserved. www.brookaccessory.com...
- Page 18 基本的なボタン構成 J6-1 XBOX Nintendo PCB De ne Series Switch Stick in DP Mode D-Pad D-Pad D-Pad D-Pad □ □ △ △ × × ○ ○ LTSB RTSB Minus SELECT Create Share View START Options Options Menu Plus Stick in LS Mode Stick in LS Mode Stick in RS Mode Stick in RS Mode...
- Page 19 接続方法は？ J3 配線接続図 START SELECT PS/XBOX MENU VIEW OPTIONS SHARE GUIDE DOWN J6-1 L1/LB R1/RB △/Y □/X L2/LT R2/RT J6-1...
- Page 20 接続方法は？ J9 端子名称 VDD_5V J5, J4, J8 配線接続図 J6-1 PLAYER TURBO TURBO TOUCH PAD...
- Page 21 J5 LEDライ ト信号表示対応表 LED 点 LED 滅 Player Xbox One Xbox 360 J8 連射機能の設定方法 連射機能設定ボタンを長押しし、 連射機能を設定または 解除したいボタンを押します。 次のボタンで連射機能を設定できます ： 1P、 2P、 3P、 4P、 1K、 2K、 3K、 4K、 L3、 R3 ...
- Page 22 J2 方向衝突判定モード選択 Mode 0: 左キーと右キーを同時に押すと出力キャンセルすると判断されました。 (デフォルト) 上キーと下キーを同時に押すと上キーを出力すると判断されました。 Mode 1: 方向が衝突した場合、 最後に押されたボタンを出力するように判断します。 Mode 0 Mode 1 Open circuit Short circuit J7 ジョイスティック 制御モードの選択について ここに追加のスライド スイッ チを接続することで、ジョイ スティ ックの制御モードを切 り替えることができます。 J6 & J6-1 USB コネクタ J6-1...
- Page 23 組み合わせキーを使用して、 ジョイスティックの制御モードを設定します OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A STARTとUPを約3秒間長押し OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X J6-1 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A STARTとLEFTを約3秒間長押し OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X...
- Page 24 Brook Gaming www.brookaccessory.com 詳細については、当社の公式ウェブサイトを ご覧ください。 ©2023 Zeroplus Technology Co., Ltd. All Rights Reserved. Brook is the registered trademark of Zeroplus Technology Co., Ltd. The other trademark names are the used marks, trademarks or registered trademarks of the corresponding companies. 202305V1.2...
- Page 25 매 뉴 얼 유니버설 파이팅 보드 퓨전은, 기존 유니버설 파이팅 보드 내부에 PS5 업그레이드 키트를 하나로 통합하여 PS5 격투 게임까지 다이렉트로 지원합니다. © Brook All Rights Reserved. www.brookaccessory.com...
- Page 26 모드별 버튼 배열 J6-1 XBOX Nintendo PCB De ne Series Switch Stick in DP Mode D-Pad D-Pad D-Pad D-Pad □ □ △ △ × × ○ ○ LTSB RTSB Minus SELECT Create Share View START Options Options Menu Plus Stick in LS Mode Stick in LS Mode Stick in RS Mode Stick in RS Mode...
- Page 27 연결 배선도 J3 배선도 START SELECT PS/XBOX MENU VIEW OPTIONS SHARE GUIDE DOWN J6-1 L1/LB R1/RB △/Y □/X L2/LT R2/RT J6-1...
- Page 28 연결 배선도 J9 배선도 VDD_5V J5, J4, J8 배선도 J6-1 PLAYER TURBO TURBO TOUCH PAD...
- Page 29 J5 LED 배선 LED ON LED OFF Player Xbox One Xbox 360 J8 터보 기능 설정 터보 버튼을 누른 상태에서 터보 또는 터보 해제를 할당할 버튼을 함께 입력합니다. 터보 기능을 설정 가능한 버튼 신호： 1P、2P、3P、4P、1K、2K、3K、4K、L3、R3...
- Page 30 J2 SOCD 클리너 모드 선택 Mode 0: 좌우 동시 입력하면 중립 신호 상하 동시 입력하면 위 방향 신호 Mode 1: 좌우, 또는 상향 동시 입력할 경우 두 번째로 입력한 방향 신호 출력 Mode 0 Mode 1 Open circuit Short circuit J7 LS/DP/RS 방향...
- Page 31 조합키를 이용한 방향 입력 신호 변경 OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A START 버튼과 위 방향을 3초동안 동시 입력 OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X J6-1 4K/L2/LT 3K/R2/RT DOWN 2K/O/B...
- Page 32 더 다양한 정보를 원하시는 경우 공식 사이트 www.brookaccessory.com 을 방문해주세요. ©2023 Zeroplus Technology Co., Ltd. All Rights Reserved. Brook is the registered trademark of Zeroplus Technology Co., Ltd. The other trademark names are the used marks, trademarks or registered trademarks of the corresponding companies.
