SWIT TD-R230S User Manual

TD-R230S
Light pole dual battery snap-on adapter
choosing SWIT products,Please read the instructions before using and keep it for future reference.
！ WARING

Do not allow the adapter to come into contact with rain.请

Keep the electrodes clean and do not allow a short circuit
between them

Make sure that the power of the equipment using the
electricity meets the battery specifications.

Please mount the adapter reliably on a stand to prevent
serious damage due to drops.

characteristics


compatible with SWIT high voltage and dual voltage
batteries and can output up to 48V/750W with the SWIT
HB-C420S 3-core XLR connector.

One SPEAKON interface, supports 22~33.6V battery
direct out power.

Dual LEDs for individual channel status indication.

Compatible with tripods with diameters from 25mm to
45mm.

Small size and innovative fanless cooling design for
quieter and more convenient use.

Symmetrical design for a more stable centre of gravity.

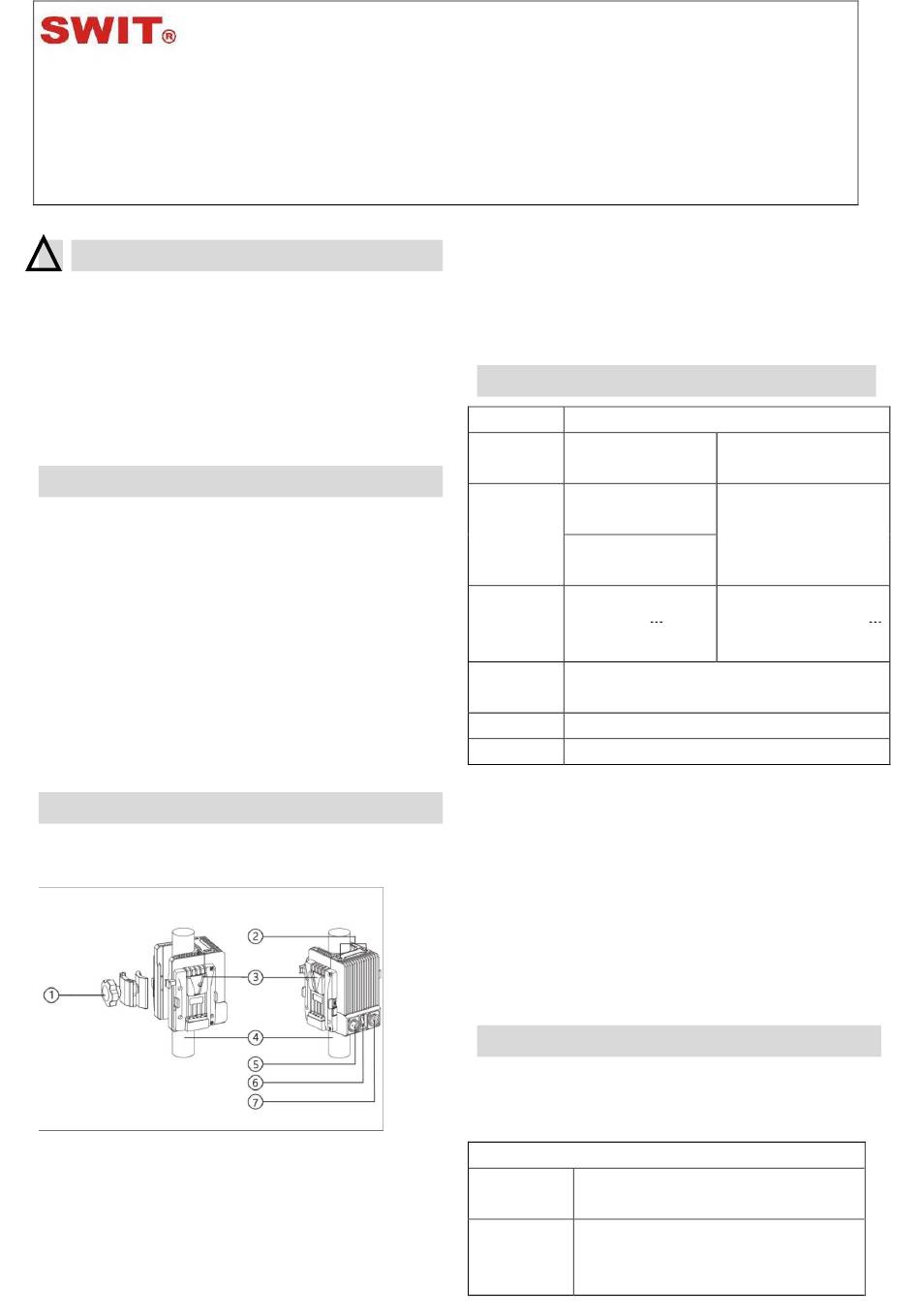

Description
① Locking device
② LED indicator
③Vmount plate
④ Mounting brackets
⑤48V 3-core XLR
USER MANUAL
SWIT Electronics Co.,Ltd.
of appearance
Tel：025-85805295
Fax：025-85805296
http://www.swit.cc
E-mail: xsb@swit.cc
⑥ Adapter switches
⑦SPEAKON
Oversize
Model TD-R230S
Output 3-core XLR
interface
Input Starting voltage：
voltage 25.6~35V
range
Undervoltage value：
23V
Output
─
750W、48V
power
Operating -20-40℃
temperature
Net weight Around 1.3kg
SIZE 146*123*110 mm
Note： 1. It is recommended to use the same type of battery with
the same power level；
2. 48V/750W output with SWIT HB-C420S only
3. With other batteries mounted, the maximum output
power is the maximum output power of the adapter or the sum
of the outputs of the two batteries (whichever is smaller)
4. The 3-core XLR output can only be turned on when
the battery is mounted at a voltage in the range of 25.6~35V;
the 3-core XLR output is turned off when the battery is
discharged at a voltage below 23V.

Instructions

1． When the adapter switch is switched off, the LED indicator
goes out and there is no output from the discharge port.
2． LED indicator：
Indicator status
Green The battery is reliably mounted and the
current channel is normal.
Slow flashing The battery is about to run out of power,
red light please replace the battery as soon as
possible.
SPEAKON
22~33.6V
750W 、 22~33.6V
15.6A
17.4A
─
