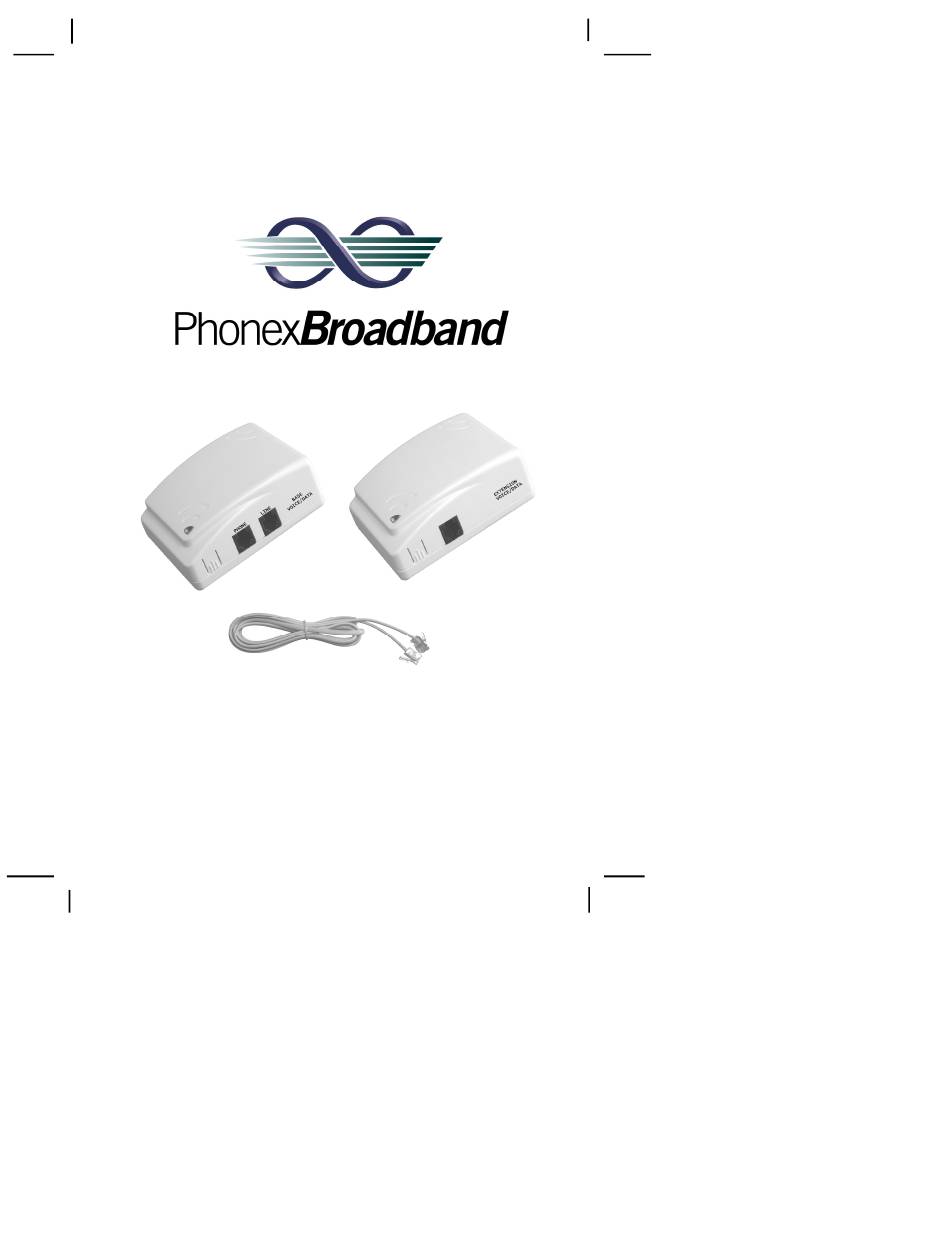

- Page 1 Phonex™ Easy Jack™ 2 Voice/Data and Data Only Owner’s Manual PX-211d and PX-211v Phonex Broadband Corporation 6952 High Tech Drive Midvale, Utah 84047 801 566-0100 Phone 801 566-0880 Fax http://www.phonex.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Precautions Important Notes on Operation Regulatory Information Getting Started System Setup Installing Peripheral Devices Programming Additional Extension Units Troubleshooting Things You Should Know One-Year Limited Warranty... -
Page 3: Safety Precautions
Safety Precautions Warning Refer all repairs to the company from which you purchased the product or from the manufacturer. Any repairs made by the user may void the warranty. Safety Precautions • Read and understand all instructions. • Follow all warnings and instructions marked on the system and in this guide. •... -
Page 4: Regulatory Information
Regulatory Information FCC Notices This equipment has been tested and found to comply with the limits for a Class B digital device according to FCC Part 15 Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, can cause harmful interference to radio communications. -
Page 5: Getting Started
Getting Started Thank you for purchasing the Phonex™ Easy Jack™ 2 Voice/Data (PX-211v) or Data Only* (PX-211d*). Use the Phonex Easy Jack 2 contents to connect satellite receivers, phones, VoIP phones, fax machines and dial-up modems to an existing phone line at any convenient 110V electrical outlet. - Page 6 Extension Unit: The extension unit has a single phone connector on the right side, an indicator light on the bottom, right corner and a push button on the bottom, right side. It is also labeled EXTENSION on both the voice/data and data-only versions. Six-Foot Telephone Cord: A six-foot telephone cord is provided to connect the base unit to the existing wall phone jack.
-
Page 7: System Setup
System Setup Follow the steps below to ensure proper functionality of your Phonex™ Easy Jack™ 2. I n s t a l l a t i o n 1 . Plug the base unit (two phone connectors) into an electrical outlet near an established wall phone jack. -
Page 8: Installing Peripheral Devices
5. Pick up the phone’s handset and listen for a dial tone. If there is no dial tone, refer to the Troubleshooting section. Fax Machine Follow these steps to connect a fax machine to the Phonex Easy Jack 2 extension unit: 1. Locate an existing electrical outlet near your fax machine. - Page 9 Dial-Up Modem Follow these steps to connect a dial-up modem to the Phonex Easy Jack 2 extension unit: 1. Locate an existing electrical outlet near your dial-up modem. 2. Plug the extension unit into the electrical outlet. 3. Plug one end of a phone cord into the single phone jack on the right side of the extension unit.
-
Page 10: Programming Additional Extension Units
Programming Additional Extension Units If you would like to add extension units to your current setup, or the indicator light on the extension unit remains red after following the proper installation procedure, you must program the new extension unit to function with the other units. To do so, follow these steps. - Page 11 4. When you have finished programming the extension units, press the button on the right side of the base unit. This takes the base unit out of program mode and the indicator light turns green. Ensure the indicator lights on the base and extension units are solid green. NOTE: If you forget to press the button on the base unit after programming the extension units, the base unit will remain in program mode for five minutes and then...
-
Page 12: Troubleshooting
Troubleshooting Refer to the following table for common troubleshooting measures. Problem Explanation and Action Indicator light not Either the indicator light itself has failed or the unit is not illuminated on base getting power. Ensure the unit is plugged directly into a unit and/or extension functional A/C outlet—not a switched outlet, plug strip, unit surge suppressor, extension cord or GFCI-protected outlet. - Page 13 You could also use an A/C line filter with the device causing the interference. (Do not plug the Easy Jack 2 base or extension unit into an A/C filter.) Cannot dial out Problem can be caused by interference on electrical wiring.
-
Page 14: Things You Should Know
Two-Line Phone Operations: If two lines are being used, only one line can operate through the Phonex Easy Jack 2 for Voice/Data (PX-211v) and Data Only (PX- 211d). A base unit and extension unit connection will only operate the phone line to which the base is connected. -
Page 15: One-Year Limited Warranty
Customer service: For additional setup help, call us at 1-800-437-0101, ext. 140. *The Phonex Easy Jack 2(PX-211d) Voice/Data will not interoperate with the Phonex Easy Jack 2 Data Only (PX-211v).
Need help?
Do you have a question about the Easy Jack 2 and is the answer not in the manual?
Questions and answers
how can i reset my easy jack 21
To reset your Phonex Broadband Easy Jack 2, follow these steps:
1. Press and hold the button on the right side of the base unit until the indicator light changes to solid red (approximately five seconds).
2. Release the button; the indicator light will blink orange. This creates a new link code and places the base unit into program mode.
3. Follow the steps in the "Additional Extension Units" section for all extension units.
4. Press and release the button on the base unit to exit program mode. The indicator light will change from flashing orange to solid green.
