Summary of Contents for Tiger WOODEN GARAGE

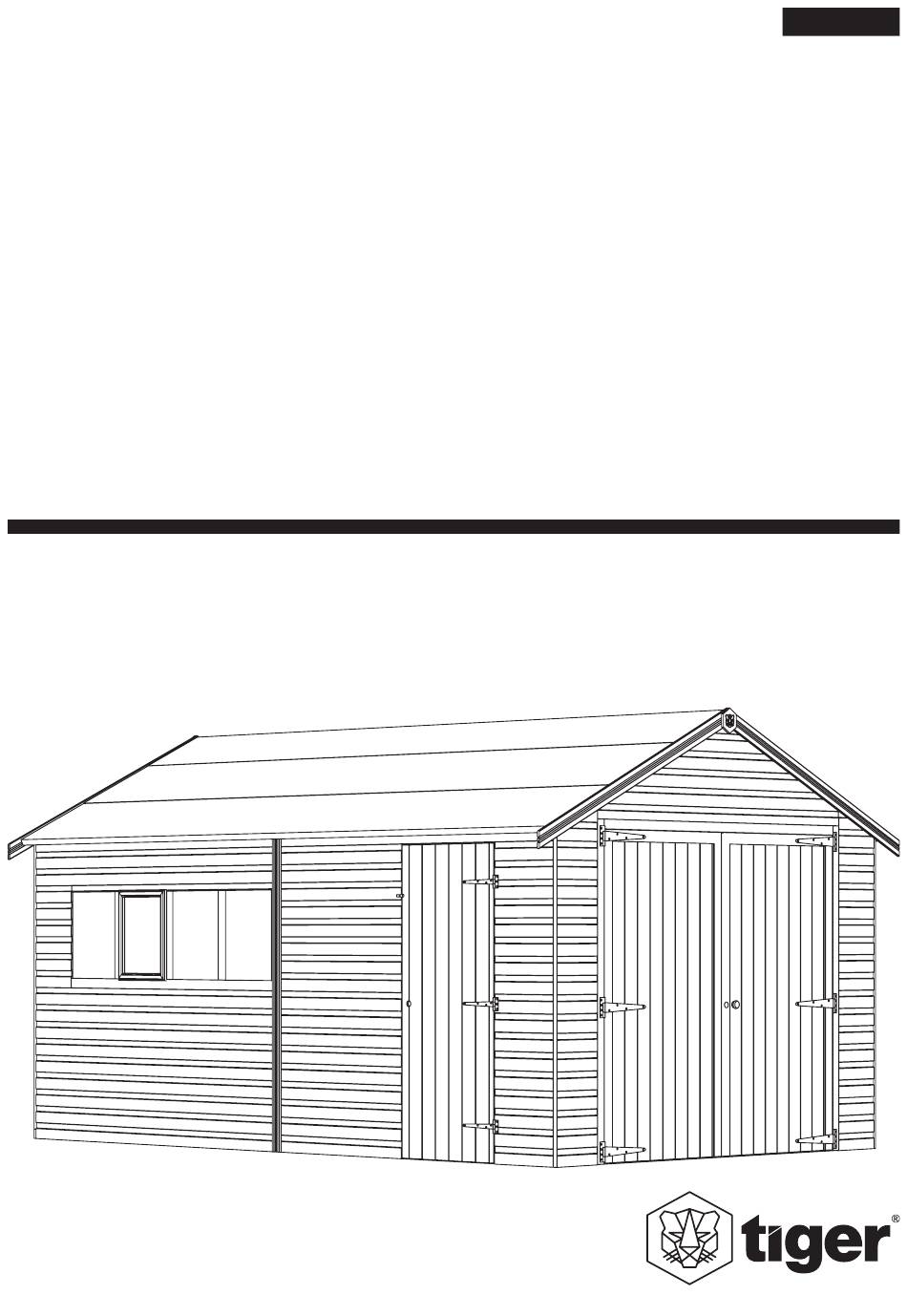

- Page 1 TIG/INS55 TIGER WOODEN GARAGE GENERAL ASSEMBLY INSTRUCTIONS...
-
Page 2: Before You Get Started
BEFORE YOU GET STARTED PLEASE READ INSTRUCTIONS CAREFULLY • Check the pack and make sure you have all the parts listed. • When you are ready to start, make sure you have the right tools at hand (not supplied). • Ensure there is plenty of space and a clean dry area for assembly. TIMBER As with all natural materials, timber can be affected during various weather conditions. - Page 3 Please retain instructions for future reference CAUTION: CAUTION: All buildings should be erected It is advisable to wear gloves by two competent adults. during building installation. MADE IN THE UK SINCE 1913. We have been making our high quality, great value garden buildings here in Britain for decades.
- Page 4 BEFORE YOU GET STARTED - PRE ASSEMBLY TOOLS REQUIRED: We recommend using the following tools (not supplied): HAMMER RUBBER MALLET DRILL LADDER TAPE MEASURE SHARP KNIFE SPIRIT LEVEL SCREWDRIVER + WOOD SAW SPANNER FIXING KIT GUIDES: FX06 - NAIL KITS HEAVY DUTY For Heavy Duty Shed Products: CN13 Clout Nails...
- Page 5 Please retain instructions for future reference • Assembly is straightforward if you follow these step-by-step instructions. • We recommend getting everything aligned properly before screwing together and that screw holes should be pre-drilled to avoid splitting the timber. (Do not come pre-drilled). IMPORTANT •...
- Page 6 TIGER WOODEN GARAGE - GENERAL ASSEMBLY INSTRUCTIONS Step 1: BUILD GABLE PANELS • Assemble blank gable panel as shown. Secure blank gable base and blank gable header together through framing using 4x N100 per side. (Detail A1) • Assemble door gable panel as shown. Secure door gable header and door gable sides together through framing using 4xN100 per side.
- Page 7 Please retain instructions for future reference Step 2: INSTALLING SIDE AND GABLE PANELS • Position one end gable and side panel as shown. (Detail B1) NOTE: CHECK THAT ALL PANELS ARE AT RIGHT ANGLES TO EACH OTHER AND THE FLOOR. •...
- Page 8 TIGER WOODEN GARAGE - GENERAL ASSEMBLY INSTRUCTIONS Step 3: SECURING SIDE AND GABLE PANELS • Locate pre-drilled holes in gable panels. (Detail C1) NOTE: THESE MAY HAVE COVERED OVER DURING PANEL COATING PROCESS. THEY MAY RESEMBLE NAIL HEADS. • Use 4x CB100 per gable, through the pre-drilled holes in each gable, from the outside.
- Page 9 Please retain instructions for future reference Step 4: INSTALLING ROOF TRUSSES • Before fitting roof panels fit apex truss. Products with sides 10ft - 19ft are supplied with x1 truss (inc. clips) for centre of building. 20ft models are supplied with 3x trusses (inc. clips) to be evenly spaced. •...
- Page 10 TIGER WOODEN GARAGE - GENERAL ASSEMBLY INSTRUCTIONS Step 5: JOINING ROOF PANELS TOGETHER • Roof for garage come in 4 sections. Layout panels for each side as shown and secure together along apex purlin (and any internal purlins) using 600mm batons supplied in polytube pack. Use x4 N100 per baton so that roof panel side is one piece.
- Page 11 Please retain instructions for future reference Step 6: TOP TIP You may need someone to hold roof panels together while you secure INSTALL ROOF PANELS roof panels at the apex. • Attach roof panels as shown. There will be a slight gap between the roof panels at the apex of shed.
- Page 12 TIGER WOODEN GARAGE - GENERAL ASSEMBLY INSTRUCTIONS Step 7: FELTING THE ROOF - MEASURE AND CUT BEFORE FITTING • Roll felt out onto a clean flat surface 30 minutes before you need it so it has a chance to flatten out.
- Page 13 Please retain instructions for future reference Step 8: FITTING FASCIA BOARDS & FINIAL (BARGEBOARDS) • Fit bargeboards to the roof panels, trapping overhanging end of the felt in between the roof panel and bargeboard. Secure using 2x N40 per bargeboard through apex and low side purlins. NOTE: THERE ARE NO BARGEBOARDS SUPPLIED FOR LOW SIDE OF ROOF AS THIS WILL PREVENT EFFECTIVE WATER DRAINAGE.
- Page 14 TIGER WOODEN GARAGE - GENERAL ASSEMBLY INSTRUCTIONS Step 9: FIT CORNER STRIPS AND COVER STRIPS - CERTAIN SIZES ONLY • Secure the corner strips at each corner of the shed with 4x N40 per corner strip. NOTE: THESE CORNER STRIPS MAY NEED CUTTING TO SIZE.
- Page 15 Please retain instructions for future reference Step 10: INSTALLING GLAZING • Glaze windows by securing glass/styrene with PP25 supplied, from the inside. (Detail I) NOTE: ALL WINDOWS MUST BE SEALED INSIDE AND OUT WITH SILICONE, PUTTY, OR ANY OTHER WATER-TIGHT SOLUTION. (NOT SUPPLIED). NOTE: PLEASE DO NOT CONFUSE YOUR CORNER STRIPS WITH WINDOW BEADING.
- Page 16 TIGER WOODEN GARAGE - GENERAL ASSEMBLY INSTRUCTIONS Step 11: GARAGE DOOR FRAME ASSEMBLY AND INSTALL • Slot door frame header into side posts as shown. (Detail J1) • Secure in place using 1x S40 per side post. (Detail J2) • Fix metal bar to base of side posts.
- Page 17 Please retain instructions for future reference METAL BAR DOOR GABLE HEADER N100 DOOR FRAME...
- Page 18 TIGER WOODEN GARAGE - GENERAL ASSEMBLY INSTRUCTIONS Step 12: INSTALL GARAGE DOORS • Position door in place against door frame and check doors a level and square. • Secure into door frame using 4x BS25 per hinge. • Repeat for remaining garage door.
- Page 19 Please retain instructions for future reference Step 14: INSTALLING DOOR PULL • Find comfortable height for supplied door pull. • Secure door pull to door using 4x 25mm (BS25) screws in the holes provided. • If door is made from interlocking boards and your chosen door pull position does not match with existing door bracing, use supplied 150mm framing to fix door pull screws into.
- Page 20 TIG/INS55 Display Agent Woodlands DIY Store Station Yard, Horsforth, Leeds, LS18 5NZ Telephone: 0113 205 4189 Website: tigersheds.com Email: customersupport@tigersheds.com...
