Summary of Contents for Linear Corporation EMERGE e3 Series

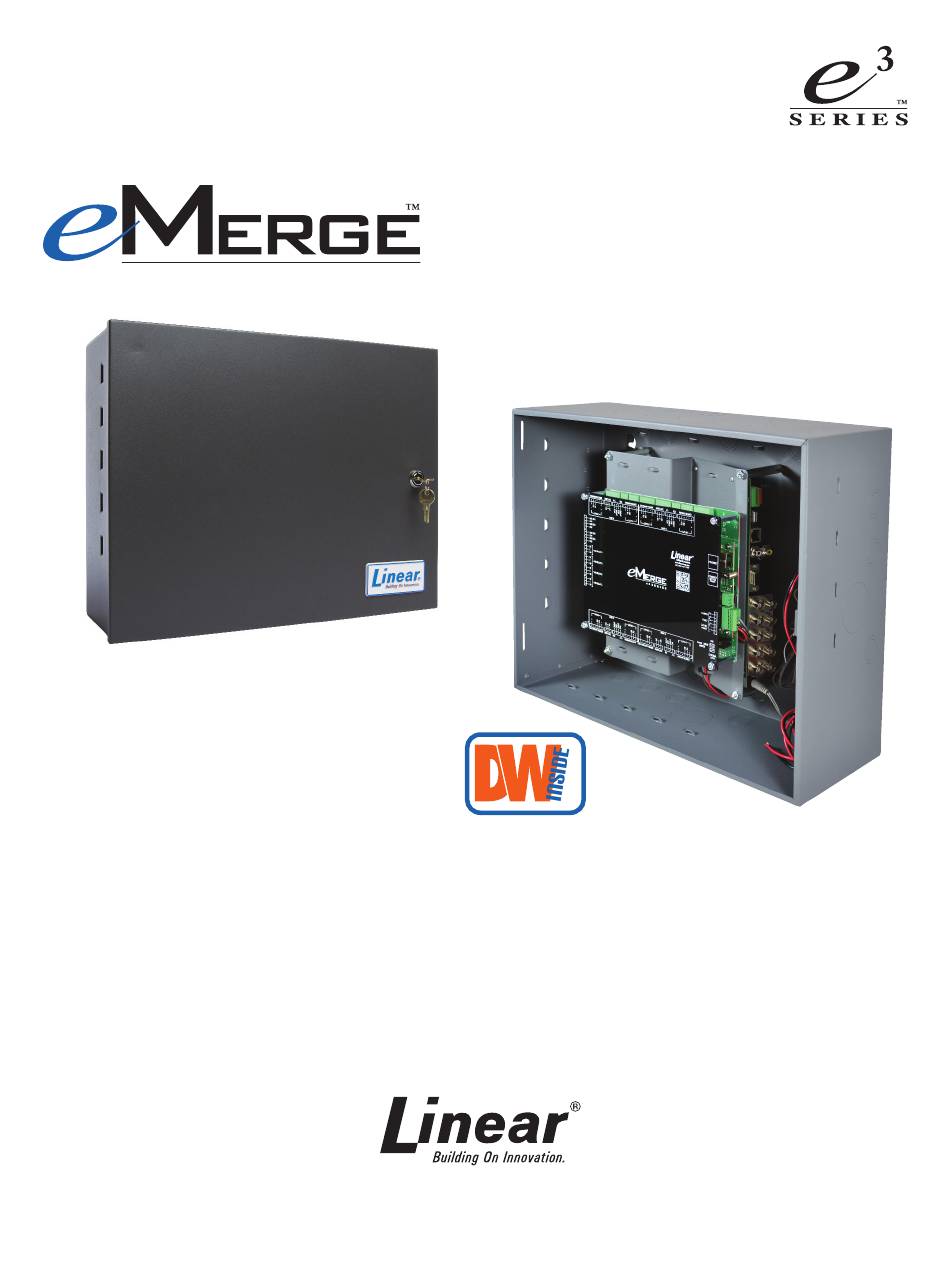

- Page 1 ™ e3 ONE BOX™ Access Controller & DVR Document Number: 620-100414, Rev. C Setup Guide USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.linearcorp.com...
- Page 2 Notices All rights strictly reserved. No part of this document may be reproduced, copied, adapted, or transmitted in any form or by any means without written permission from Linear LLC. Standards Approvals Th is equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ....... 2 e3 Interface ..........2 Embedded DVR Interface . -
Page 4: Introduction
1. Introduction Th e e3 ONE BOX is an e3 Control System with a Digital Watchdog® brand digital video recorder (DVR) mounted behind the Controller in a large metal tamper monitored enclosure. e3 Interface Th e e3 system connects with the DVR through the installation’s local area network (LAN), allowing video monitoring, playback, capture, and event tagging via the e3’s graphical user interface (GUI). -
Page 5: E3 One Box Model Options
2. e3 ONE BOX Model Options Th e e3 ONE BOX is available in eight diff erent model confi gurations. • Each system includes one video camera. • Th e bundle systems also include proximity readers. Following is a list of the available e3 ONE BOX models: ONE BOX™... -
Page 6: Dvr Connectors
3. DVR Connectors Th e e3 ONE BOX DVR is contained inside the e3 cabinet beneath the Controller. DVR Connector Descriptions VIDEO VIDEO MAIN INPUT INPUT VIDEO CH 1 CH 2 OUTPUT TERMINAL AUDIO BLOCK PORT INPUT POWER PORT INPUT PORT 4-CHANNEL DVR AUDIO... -
Page 7: Dvr Connector Locations In E3 Cabinet
DVR Connector Locations in e3 Cabinet RS-485 PORT ALARM OUTPUT SENSOR INPUT USB PORT LAN PORT AUDIO INPUT AUDIO OUTPUT VGA PORT VIDEO INPUTS CH 3 CH 1 CH 4 CH 2 MAIN MONITOR COMPOSITE VIDEO OUTPUT SPOT MONITOR COMPOSITE VIDEO OUTPUT POWER INPUT 4-Channel DVR Connections in e3 Cabinet... -
Page 8: System Configuration
4. System Configuration NOTE: Before proceeding, Th e e3 Controller will need to be set to the DVR’s IP address before the two systems can communicate. you will need to obtain Overview the following information from your network 1. Apply power to the e3 system. administrator: 2. - Page 9 e3 Controller Setup (continued) 7. Enter the info into the option boxes as shown below: 8. Select CONNECT TEST to update the maximum DVR channel number. Th e CHANNEL list will display CAM1 to CAMx where x is the highest number camera. 9.
-
Page 10: Dvr Connections
5. DVR Connections Disconnect power to the system before making any new connections. Camera Connections Th e e3 ONE BOX systems support four or eight analog video cameras (depending on the model). Th e cameras video signals connect to the system through COAX cable using BNC connectors. Camera audio is supported with an RCA type jack. -
Page 11: Video Tagging Event Actions
6. Video Tagging Event Actions NOTE: The DW DVR must Th e e3 Controller can be set to assign “video tags” when a specifi c system event occurs. be properly confi gured for 1. Select the EVENT icon on the tool bar, then click EVENT ACTION. recording. -
Page 12: Testing The Programmed Event Action
Video Tagging Event Actions (continued) 4. Multiple cameras can be set to record from a single event action. 5. Select SAVE when fi nished. Testing the Programmed Event Action After setting up an event action, test the system to be sure the action functions as intended. 1. -
Page 13: Dvr Viewing & Recorded Playback
7. DVR Viewing & Recorded Playback Th e DVR will be continuously storing camera images and audio on its hard drive. Th e cameras can be monitored “live” or pre-recorded camera data can be selectively viewed. Live Viewing 1. Select the DVR View Screen. 2. -
Page 14: Troubleshooting
8. Troubleshooting SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION The DVR isn’t working in Firefox or The DVR uses an ActiveX control and Use Internet Explorer to access the Chrome Web browsers. is only supported in Microsoft Internet e3 system. Explorer. DVR Tagging doesn’t take me to the The DVR and e3 systems are not Set the time of the e3 and the DVR correct time in the video. - Page 15 www.linearcorp.com e3 One-Box DVR Setup Guide...
- Page 16 ™ USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.linearcorp.com Copyright © 2014 Linear LLC 620-100414 C...
