Summary of Contents for WolfPack HDTVHRS5500

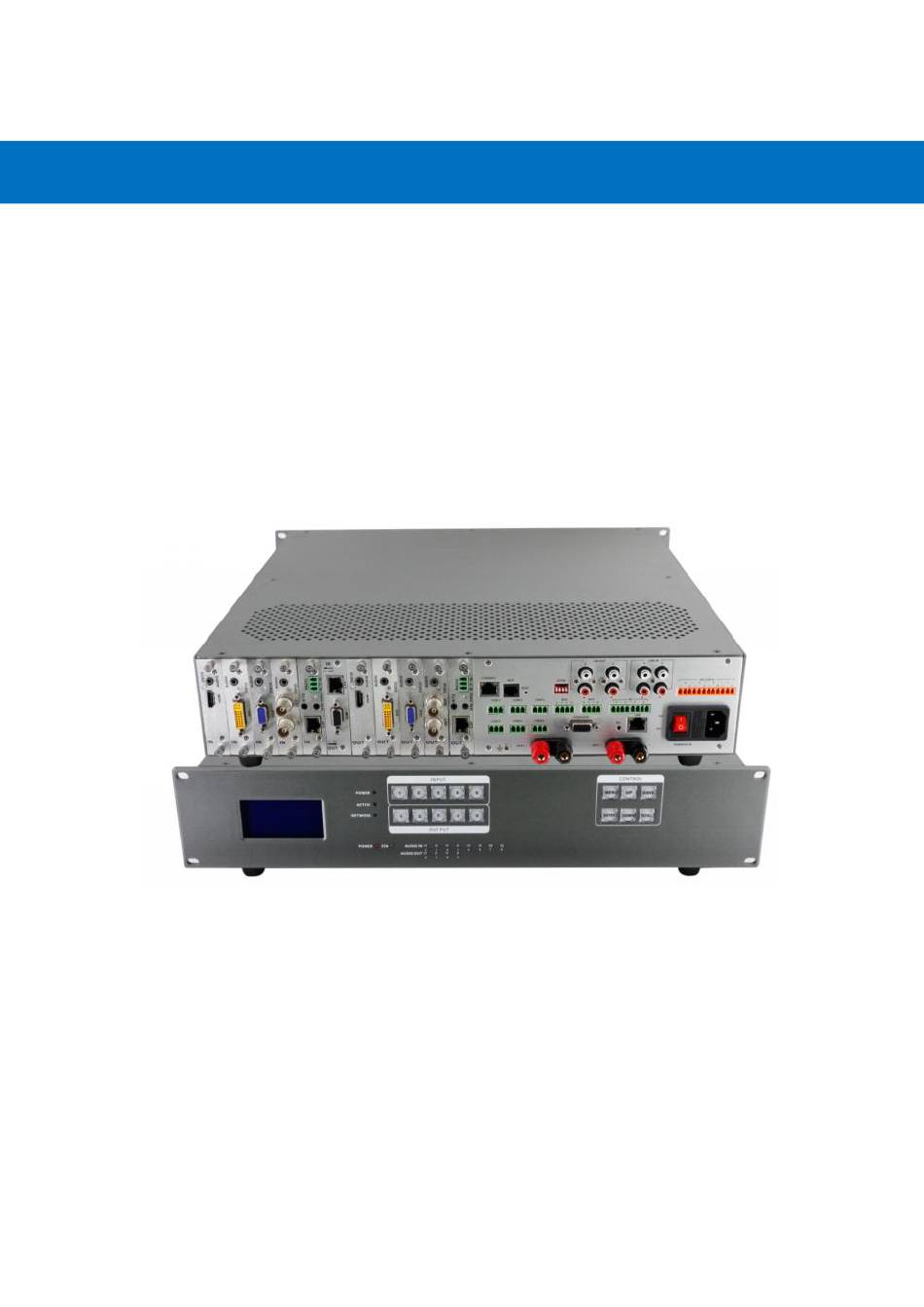

- Page 1 USER MANUAL ALL-IN-ONE Huddle Room Solution HDTVHRS5500 Version: V1.0.1...
-
Page 2: Product Description
1. Product description： HDTVHRS5500 is a All-in-one Huddle Room Solution product, it’s specially developed for small and medium sized conference rooms. It integrates a 5x5 hybrid/modular matrix switcher, an 8x4 audio processor, 2*150W amplifier system and a central control system in a 2RU chassis. With the highly integration and good compatibility to provide users a friendly and easy use for the conference room, truly realized the function of BYOD. -
Page 3: Technical Specification
2 BPBUS control bus provide a common bus interface for expand peripherals Configuration support multi-connection Ethernet interface enabling easy connect to IPAD and Android touch screen. 3. Technical Specification HDTVHRS5500 Model Description Small and medium-sized multimedia operating platform host Video section... -
Page 4: Equipment Connection Diagram
Phantom power DC 48V Microphone input impedance 2KΩ Frequency 20-20kHz（±2dB） Line input impedance 5KΩ response Total harmonic 200ohm(output 1/2) ， 4ohm ≤0.05%@1kHz， +2， 2dBu Output impedance distortion （8ohm）（output 3/4） Maximum input 20dBu Line 1-2 maximum output level 10dBu level Amplifier section Output 2X150W Output Power... -
Page 5: Panel Introduction
HDTVHRS5500 ......................... 1 unit AC Power cord ......................... 1 PCS Audio connection Phoenix terminal 1 ..................1 PCS Screwdriver ..........................1 PCS User manual..........................1 PCS Panel introduction： LCD screen: indicate the information of the video matrix；... -
Page 6: Web Control
7. Instructions HDTVHRS5500 including three modules: a video matrix, an audio processor and a central controller. The video matrix and audio processor can be individually controlled by separate control systems and also can be controlled by central controller. 7.1 Video section... - Page 7 The default user name and password both are: admin. Users can control the matrix after login. 7.1.2.2 Switching Click Switch to enter switching interface. The left side of the long string is input area: 5 input buttons( dark blue color). The right side is output area: 5 output buttons( green color).
- Page 8 There’ re 24 scenes in the middle, users can view the current switching status from left side, the right side are Save, Load, Back buttons. (All scenes can be named in Caption interface) If want to save the current switching status as a scene: Select the wanted scene number(1~24), then click Save to save.
- Page 9 7.1.2.5 Manager Centralization Management interface: Click on the Manager option to enable centralized control of multiple matrices At the same local area network, it can simultaneously control one to multiple matrices with same segment but different IP address, (maximum up to 254 units). For example: the following IP 192.168.1.81 and 192.168.1.88 are two different matrices.
- Page 10 7.1.2.6 Setup Set up interface (select Setup in the menu bar) There are 3 areas under this interface, the first one is Reboot function, users can modifying the matrix configuration such as IP address, Login password. The middle one is use for changing IP address, users can change the control IP address according to the actual needs of site( note: 2 IP addresses can’t be at the same segment).
- Page 11 Multifunction buttons set up, total we have 16 multifunction buttons at present. We can rename the buttons, Type the HEX code for each button, and baud rate select. Then click “Save”.
- Page 12 7.1.2.7 More: Upgrading: Click Upgrade can realize new software upgrading...
- Page 13 7.1.2.8 APP Control It also can support IOS and Android APP control, users only need to well connected the matrix with the WIFI router or local network. Download the APP from the application store. The steps and interfaces show as below: Step 1: Make sure the matrix well connected with the router or local network, and open the APP: Step 2: Enter the IP address of the matrix:...
-
Page 14: Function Description
7.1.2.9 RS232 Control Commands RS232 cable with straight-through connection(USB-RS232 can be used directly) Communication protocol: Baud rate: 115200 Data bit: 8 Stop bit: 1 Check bit: None Comman Explanation Function description Switch Input Y to all the outputs YAll. Y=1,2,3,4..Eg. -
Page 15: Front Panel
7.2.1 Front panel PWR: power indicator STA: Status indicator IN: Audio input indicators. OFF means no audio sources input. Green lights means having the audio sources input Red lights means this sources have been muted OUT: Audio output indicators. OFF means no audio sources input. Green lights means having the audio sources input Red lights means this sources have been muted 1.ETHERNET: RJ45 port for the IP control... - Page 16 power 5.AMP1~AMP2: Amplifier output channels, 150W for each. 7.2.2 Software Operation Instruction The software supports the Windows XP, Windows7, Windows8 and Windows10 operating systems. Before installing the software, make sure that .Net Framework 4.0 has been installed in the computer. 7.2.2.1 Software Connection Open and log in the control software Connect to the Device:...
- Page 17 settings: Add and delete user: Scene save, load and management: Scene name: Double click the scene name to rename. Save: Save the current settings to the selected scene number. Load: Use the currently selected scenes which are usually used for scene change. Upload: Upload the scenes of the PC end and have them cover the scenes of the selected device.
- Page 18 Wall panel control setting: Gain: click to select the wall panel control details. After selected, user can press "Volume +" "Volume -" to control the sound volume Step: Set the gain dB of each pressing on the panel. The step setting range is from 1-15, if the step is "1", press the "volume +"...
- Page 19 Serial port setting: 7.2.2.3 Main Interface: Users can save and load the scene, adjust the sound volume by drag the buttons, click “M” to mute, “Pre” to pre-fade or post-fade. 7.2.2.4 Input Analog Setting:...
- Page 20 Sensitivity:The sensitivity for the Line/Mic input can be selected. A high sensitivity signifies that the Mic has a high acoustoelectric conversion efficiency, and is sensitive to the weak signals . Panel in call: It allows the panel signals to access this channels. If it is pressed down, the access is allowed.
- Page 21 All Bypass: Bypass signals of all the frequency bands and let them directly enter into the next processing module. The button is pressed down, showing that the equalizer do not work, and signals of all frequency bands go straight to the next processor. The button upsprings, showing that the equalizer works, and signals will be output after being processed by the equalizer.
- Page 22 The expander will add dynamic range to the input according to needs of the user. When the signal input is less than “threshold”, the expander amplifies and outputs the signal input by the “ratio” set. Level output = threshold–(threshold–level input)/ratio; when the signal input is more than “threshold”, it is output by 1:1.
- Page 23 gain control, etc., in the loudspeaker box manager. Frequency Divider The frequency divider achieves its functions with a band-pass filter which is formed by the high-pass filter, low-pass filter and the combination of high pass and low pass. Please divide the frequency according to the actual conditions.
- Page 24 “threshold value”. Gain Re: It will display the difference value between the signals processed by the limiter and the output signals. Output level: It will display the output signals processed by the limiter. 7.2.2.9 Main Mixer The primary sound mixing is expressed in the form of matrix. The vertical direction represents the input channel, and the horizontal direction represents the output channel.
- Page 25 Priority: It is divided into three levels---normally open, prior and standard. The normally open channel, free from the limit of maximum MICs and the threshold, can output signals directly. Both the prior channel and the standard channel are limited by the maximum MICs and the threshold.
- Page 26 Clear All: It is to clear data from one single filter or all the filters. Frequency: It displays the frequency value of the howl-back point. Gain: It displays the gain value of the filter’s trapped wave. Octave: It displays the bandwidth value of the filter’s trapped wave. 1-16 buttons: They are the sequence numbers for the analog input channels.
- Page 27 Level: There are six level options. The amount of noises suppressed by Level 1 is -9dB. For Level 2/3/4, the amount of noises suppressed by each level decreases by 3dB progressively. For Level 5/6, the amount of noises suppressed by each level decreases by 6dB progressively. The maximum suppression is -30dB.
- Page 28 adjusted to reduce the gain of the controlled signal. Attack: When the control signal exceeds the threshold, the time required for the dodge module to start. Hold Time: When the control signal is below the set threshold, the sound channel will not be closed immediately and the delay time will be delayed according to this setting.
- Page 29 7.3.3 Computer interface instruction 7.3.2.3 iPad Control Users can use an iPad to control the whole system, there are 3 modes for users to select and use(this also can be programmed) TV interface: To control the TVs OFF/ON...
- Page 30 Video Switch interface, for the 5x5 modular matrix switcher: Audio Control interface: Users can increase/decrease/Mute the sound Volume...
- Page 31 Meeting interface, it can be programmed to control the Polycom camera: Exit interface...
