1. Cabinet and Main Frame Section

5
4
3
2
1
A

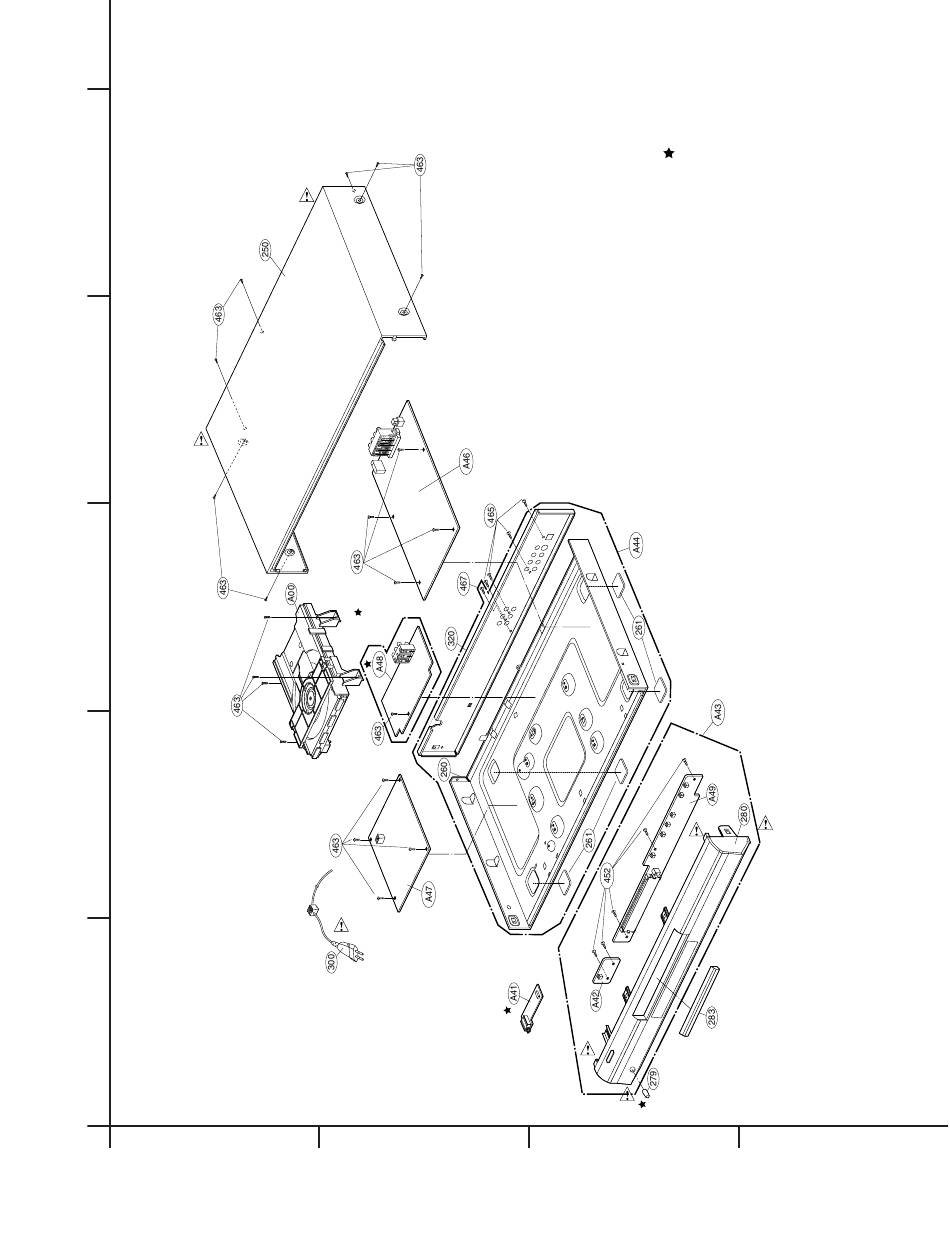

EXPLODED VIEWS

SCART&5.1CH
MODEL
ONLY
KARAOKE MODEL
ONLY
B
2-2
OPTIONAL PART
KARAOKE MODEL
ONLY
C
D
