Summary of Contents for General International Excalibur SLF35-T52

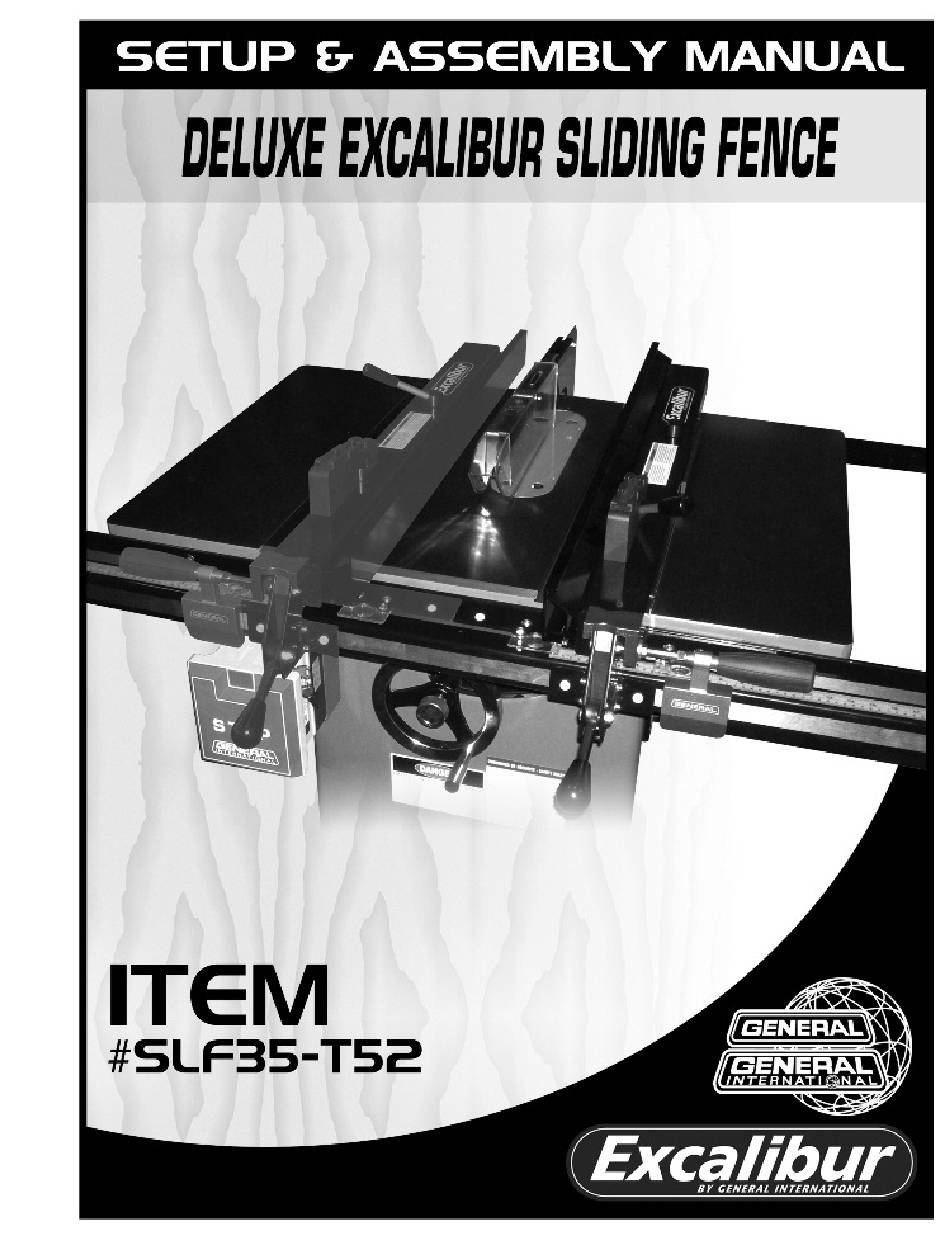

- Page 1 RIP FENCE SYSTEM ONLY - TABLE SAW SOLD SEPARATELY *Shown with optional micro-adjustment attachment #50-057 VERSION 2 - REVISION 1 (May 27, 2013) © COPYRIGHT GENERAL INTERNATIONAL 05/2013...
- Page 2 GENERAL® INTERNATIONAL 8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3 Telephone (514) 326-1161 • Fax (514) 326-5555 • www.general.ca THANK YOU for choosing this Excalibur by General®International model SLF35-T52 Deluxe Excalibur Sliding Fence. This fence has been carefully tested and inspected before shipment and if properly used and maintained, will provide you with years of reliable service.
- Page 3 GENERAL INTERNATIONAL WARRANTY ® All component parts of General® International and Excalibur by General International® pro- ducts are carefully inspected during all stages of production and each unit is thoroughly inspected upon completion of assembly. Limited Lifetime Warranty Because of our commitment to quality and customer satisfaction, General® International agree to repair or replace any part or component which upon examination, proves to be defective in either workmanship or material to the original purchaser for the life of the tool.
-
Page 4: Rules For Safe Operation
RULES FOR SAFE OPERATION To help ensure safe operation, please take a moment to learn the machine’s applications and limitations, as well as poten- tial hazards. General® International disclaims any real or implied warranty and holds itself harmless for any injury that may result from improper use of its equipment. - Page 5 DELUXE EXCALIBUR SLIDING FENCE SLF35-T52 UNPACK FENCE RAILS, FENCE BODY AND REMOVE CARDBOARD END PROTECTORS Remove both end caps of the guide tube to find the bag of fas- tening hardware and the two measuring tapes tucked inside A. x21 x12 x27 Your hardware bag will contain the contents shown in B.
- Page 6 FOR MODELS 50-250/50-260 FOR MODEL 50-270 FOR MODELS 50-300/50-300CE/50-305/50-305CE FOR MODELS 50-200R/50-275R...
- Page 7 5/8” Adjust the rail height until the top of the rail is approxi- Assemble the guide tube A to the front fence rail using mately 5/8” below the top of the table and level from the 8 short hex head bolts with lock washers and flat one end of the table to the other.
- Page 8 FOR MODELS 50-250/50-260 FOR MODEL 50-270 FOR MODELS 50-300/50-300CE/50-305/50-305CE FOR MODELS 50-200R/50-275R...
- Page 9 ASSEMBLE THE FENCE 1. Thread the knob onto the fence locking handle as shown in A. 2. Sit the fence in place on the rails without locking it down and, if needed, loosen lock nut B to adjust the position of the fence foot clamp front to back C to suit the length of the saw.
- Page 10 INSTALL THE OPTIONAL MICRO-ADJUSTMENT ATTACHMENT 2. With the magnetic plate seated on the guide tube, 1. Install the micro-adjustment attachment as shown secure the assembly to the fence body by tighten- ing the two set screws A with a 5mm Allen wrench. 3.
- Page 11 To level the fence face 90° to the table: Place a machinist square on the table against the fence and, either by eye or with a feeler gauge, look for a gap between the square and the fence face or the table. Adjust either of the two white plastic levelling screws, B or C, up or down as needed, until the fence face is set 90°...
- Page 12 If the fence is not parallel it can be adjusted to the left or right using an Allen wrench to turn one or both of the alignment screws, F and/or G either in or out as needed. Do the adjustment gradually; about 1/8 to 1/4 of a turn at a time, or you will quickly overshoot the desired adjustment.
- Page 13 Hint: Try removing only an inch of backing strip from the start of the tape, stick that down, then remove the rest of the backing and pull the measure tape taut to the end of the guide tube and carefully lower it against the tube. Trim off any excess tape with a knife or scissors.
- Page 14 INSTALLING A TABLE EXTENSION Depending on your saw model and shop needs you may wish to add an extension table to your set-up. Whether supplied with the unit, purchased aftermarket or shop made, make sure the extension table fits between the saw rails and can be installed flush to the saw table.
-
Page 15: Recommended Optional Accessories
We offer a large variety of products for increased convenience, productivity, accuracy and safety when using your saw. Here’s a small sampling of optional accessories available from your local General International dealer. For more information about our products, please visit our website at www.general.ca #B-050M - 28”... -
Page 16: Fence Assembly
IMPORTANT: When ordering replacement parts, always give the model number, serial number of the machine and part number. Also a brief description of each item and quantity desired. FENCE ASSEMBLY... - Page 17 PARTS LIST SLF35-T52 PART N0. REF. N0. DESCRIPTION SPECIFICATION SLF35T52-01 001-1 FENCE BODY ASSEMBLY M5X8 SLF35T52-02 UF-10 PHILLIPS HEAD SCREW SLF35T52-03 UF-11 FLAT WASHER SLF35T52-04 UF-12 HEX NUT SLF35T52-06 001-6 POINTER BRACKET SLF35T52-07 001-7 LEVELLING FOOT CLAMP SLF35T52-08 001-8 SPRING SLF35T52-09 UF-13 SPROCKET WASHER...
-
Page 18: Rail Assembly
RAIL ASSEMBLY PARTS LIST SLF35-T52 - RAIL ASSEMBLY PART N0. REF. N0. DESCRIPTION SPECIFICATION SLF35T52-R01 61202006 FRONT RAIL SLF35T52-R02 905014112 FLAT HEAD SCREW 1/4" X 1 1/2" SLF35T52-R03 9140141602 FLAT WASHER 1/4" SLF35T52-R04 915014000 LOCK WASHER 1/4" SLF35T52-R05 910140000 HEX NUT 1/4"... - Page 19 MODEL SLF35-T52 8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3 Tel.: (514) 326-1161 Fax: (514) 326-5565 - Fax: (514) 326-5555 - Parts & Service / Order Desk orderdesk@general.ca www.general.ca Follow us:...
