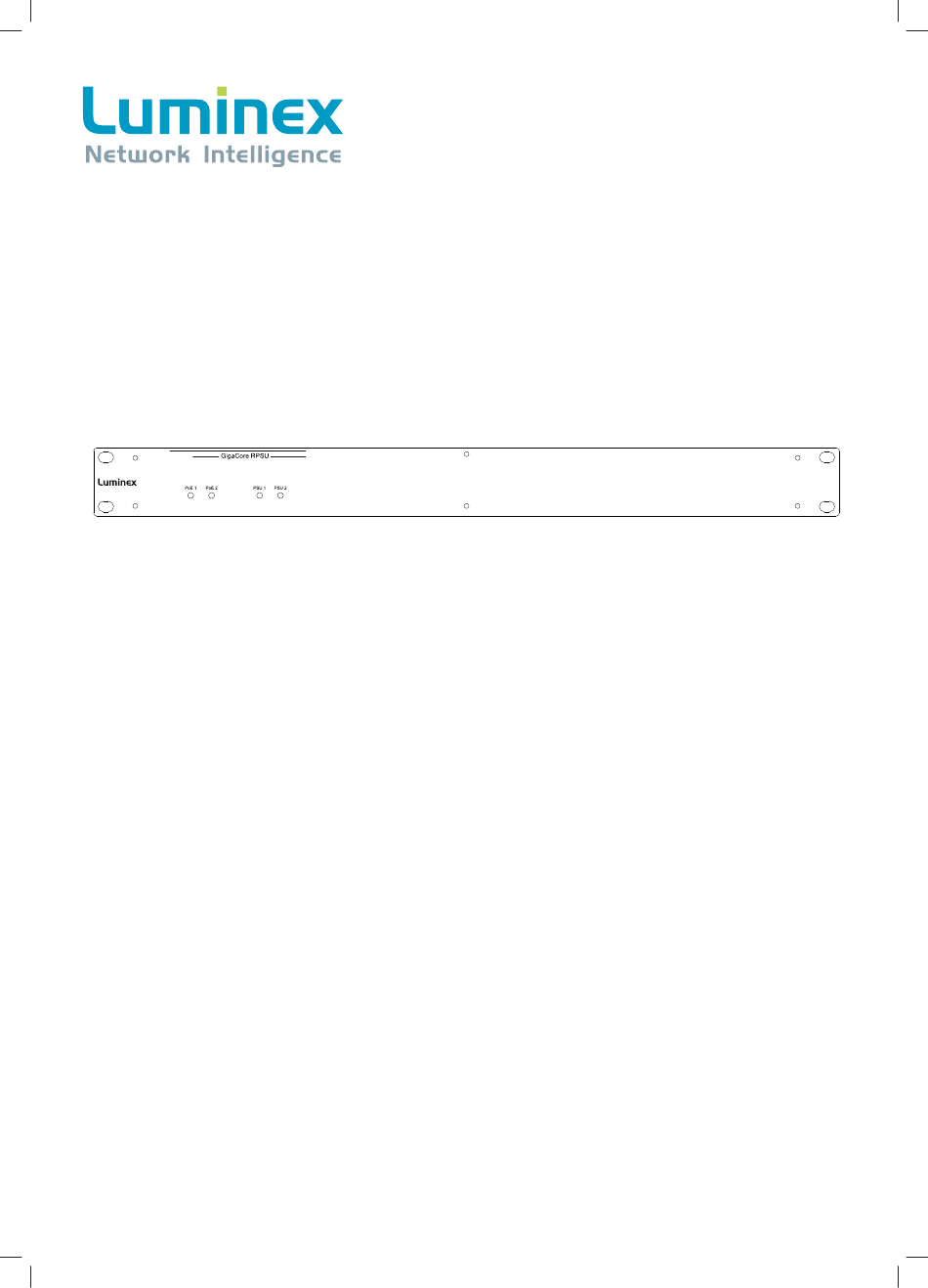

- Page 1 GigaCore RPSU Redundant power supply for GigaCore 14R and 16Xt Quick Start Guide V2.0.0 Rev1 English...
-
Page 2: Table Of Contents
The information in this documentation is supplied without warranty of any kind, either directly or indirectly, and is subject to change without prior written notice. Luminex, its employees or appointed representatives will not be held responsible for any damages to software, hardware, or data, howsoever arising as a direct or indirect result of the product(s) mentioned herein. -
Page 3: Safety Instructions
Safety Instructions CAUTION: TO REDUCE THE RISK OF WARNING: TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, DO NOT REMOVE THE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS COVER. NO USER SERVICEABLE PARTS APPLIANCE TO RAIN OR MOISTURE. INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 4: Compliance Information
EMC (Electromagnetic Compliance) This model GigaCore RPSU complies with the following standards regulating interference and EMC: • EN 55022 • EN 55024... -
Page 5: Warranty Information
Returning under warranty Any Product unit or parts returned to Luminex LCE must be packaged in a suitable manner to ensure the protection of such product unit or parts, and such package shall be clearly and prominently marked to indicate that the package contains returned product units or parts. -
Page 6: Description
Description The GigaCore RPSU is able to monitor two GigaCore Ethernet switches (14R and 16Xt model) at a time. In the unlikely event one of the switch’s power supply fails, the unit will deliver power, seamlessly. The unit can backup both power and power over Ethernet supplies. - Page 7 Rear panel IEC socket for mains input Output connectors for Output connectors for backup power over backup power supply Ethernet supply ■ 1 x IEC socket for power input ■ 1 x Fan ■ 2 x Molex output connectors for redundant power supply ■...
-
Page 8: Starting
An IEC socket is located at the rear of the unit. Please use an IEC plug compliant cable to feed power to the unit. Luminex recommends the use of a power cable, fitted with a locking mechanism to ensure a reliable connection to the device. - Page 9 Led indicators The LED indicators of the GigaCore RPSU includes power and power over Ethernet supplies status. The following shows the LED indicators for the GigaCore RPSU along with an explanation of each indicator. Status Meaning PoE 1 Green Unit is active, ready to source...
- Page 10 5 to 95 % RH RoHS Compliance Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject...
-
Page 11: Additional Documentation
Additional documentation All additional documenttion can be downloaded from our web pages in the support section : http://www.luminex.be --> Support... - Page 12 Berkennlaan 8A 3940 Hechtel Eksel Belgium tel: +32 11 812 189 info@luminex.Be www..luminex.be...
