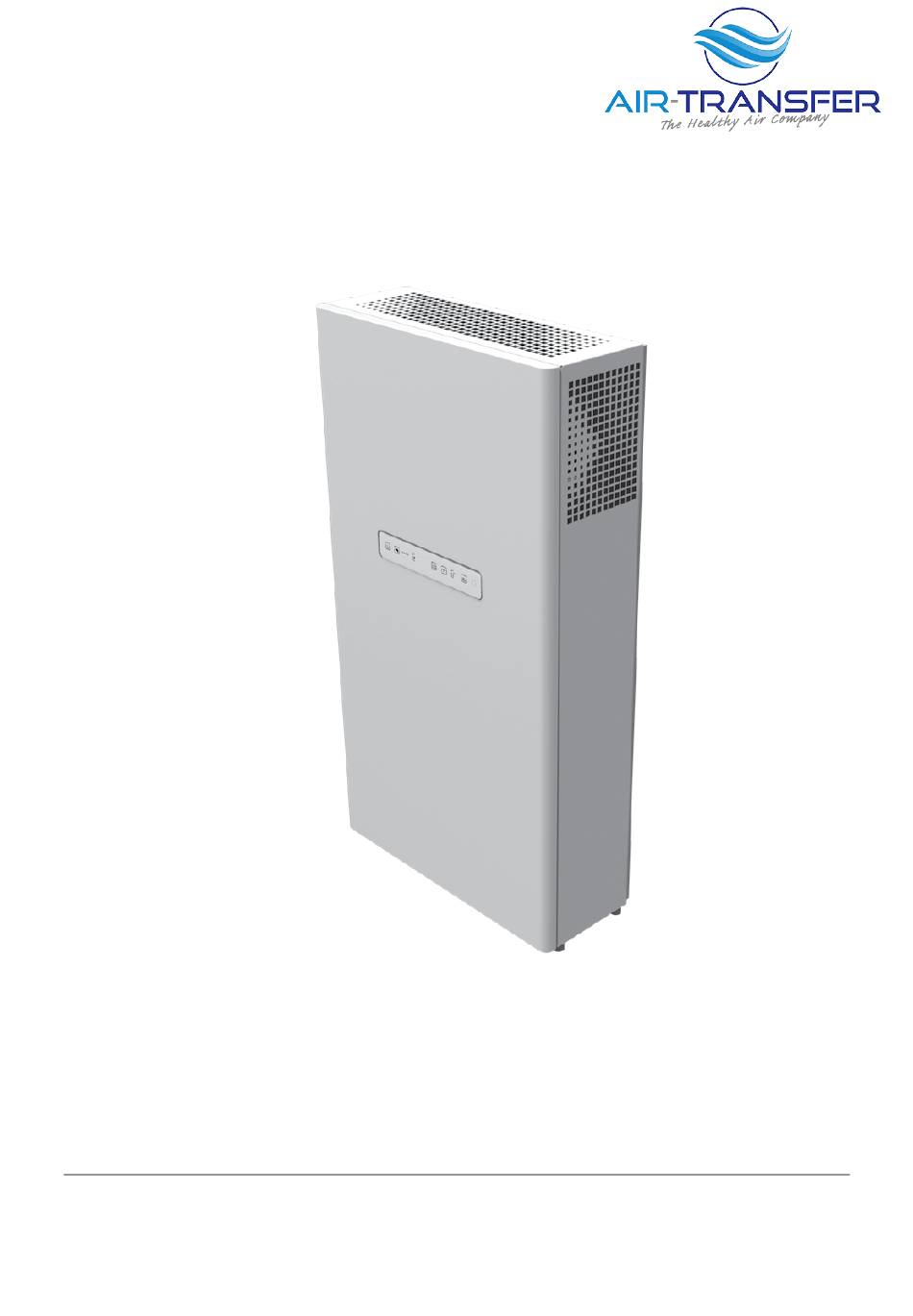

- Page 1 USER’S MANUAL Micra 200 ERV WiFi Micra 200 E ERV WiFi Micra 200 E1 ERV WiFi Micra 200 E2 ERV WiFi Air handling unit...
-
Page 2: Table Of Contents
Micra 200 (E/E1/E2) ERV WiFi CONTENTS Contents ......................................2 Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Technical data ....................................5 Design and operating principle ............................7 Mounting and set-up .................................. 9 Connection to power mains ..............................12 Control ......................................... - Page 3 potentially result in carbon monoxide poisoning. After installation of the unit the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur. All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units.
-
Page 4: Purpose
Micra 200 (E/E1/E2) ERV WiFi PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 5: Technical Data
IP44 for the unit motors The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. PARAMETER MICRA 200 ERV WIFI MICRA 200 E ERV WIFI MICRA 200 E1 ERV WIFI... - Page 6 Micra 200 (E/E1/E2) ERV WiFi Dimensions [mm] Model Ø D Micra 200 (E/E1/E2) ERV WiFi 1020...
-
Page 7: Design And Operating Principle
DESIGN AND OPERATING PRINCIPLE H13 filter (option) F7 filter Supply grille sensor (purchased separately) Supply air reheater Additional exhaust air duct G4 extract filter Extract grille Control unit Counter-flow Control panel heat exchanger Lock Extract fan Supply air preheater Supply fan Exhaust spigot G4 supply filter Exhaust air damper... - Page 8 The reheater is switched on and off by means of a button on a sensor control panel, a remote control or via a mobile application. The heat exchanger overheating protection in the Micra 200 ERV WiFi and Micra 200 E1 ERV WiFi unit models without a preheater is achieved by automatic supply fan speed reduction according to extract air sensor readings.
-
Page 9: Mounting And Set-Up
MOUNTING AND SET UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OBJECTS E.G. FOIL, PAPER . THE UNIT MUST BE MOUNTED ON A PLANE SURFACE. - Page 10 Micra 200 (E/E1/E2) ERV WiFi Remove the mounting template and drill two through holes Ø 120 mm for round air ducts. When mounting the unit with an extract spigot, prepare a hole in the wall for a connecting bend and for laying of a rectangular air duct.
- Page 11 Remove the F7 and H13 filters for accessing the mounting holes. If an extract spigot is installed, remove the top protective panel and install the magnetic plug on the exhaust grille. When removing the panel, disconnect the grounding cable. Lift the unit, insert the spigots into the corresponding air ducts installed in the wall.
-
Page 12: Connection To Power Mains
Micra 200 (E/E1/E2) ERV WiFi CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. -
Page 13: Control
CONTROL The unit is controlled by means of a control panel on the unit casing, a remote control or via a mobile application. Control panel 1. The unit is switched on/o using 2. Ventilation modes can be controlled by the buttons. - Page 14 Micra 200 (E/E1/E2) ERV WiFi lter replacement indicator At the end of the filters’ service life, the on the control panel will light up notifying that filters need to be changed. 7. In emergency situations, the unit turns o and the indicator ashes an alarm code.
- Page 15 UNIT CONTROL VIA THE APPLICATION ON THE MOBILE DEVICE Vents Home Unit control is carried out using the app on the mobile device. The application is available for download at App Store, Play Market or via the QR code. Vents Home – App Store Vents Home –...
- Page 16 Micra 200 (E/E1/E2) ERV WiFi Filter Filter timer setting is available. When the set time (70-365 days) has elapsed, the filter change indicator appears and filter replacement information is displayed in the Alarms menu. This timer can be turned off. If the unit is equipped with filter contamination pressure switches, after the timer is turned off...
-
Page 17: Technical Maintenance
TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION Maintenance operations of the unit are required 3-4 times per year. Maintenance includes periodic dust removal from surfaces, cleaning or replacement of filters (if necessary) and dry cleaning of fans. -
Page 18: Troubleshooting
Micra 200 (E/E1/E2) ERV WiFi TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING The fan(s) do(es) not get Make sure that the unit is properly connected to the power No power supply. started. mains and make any corrections, if necessary. Extract filter clogging. Clean or replace the extract filter. -
Page 19: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 20: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
