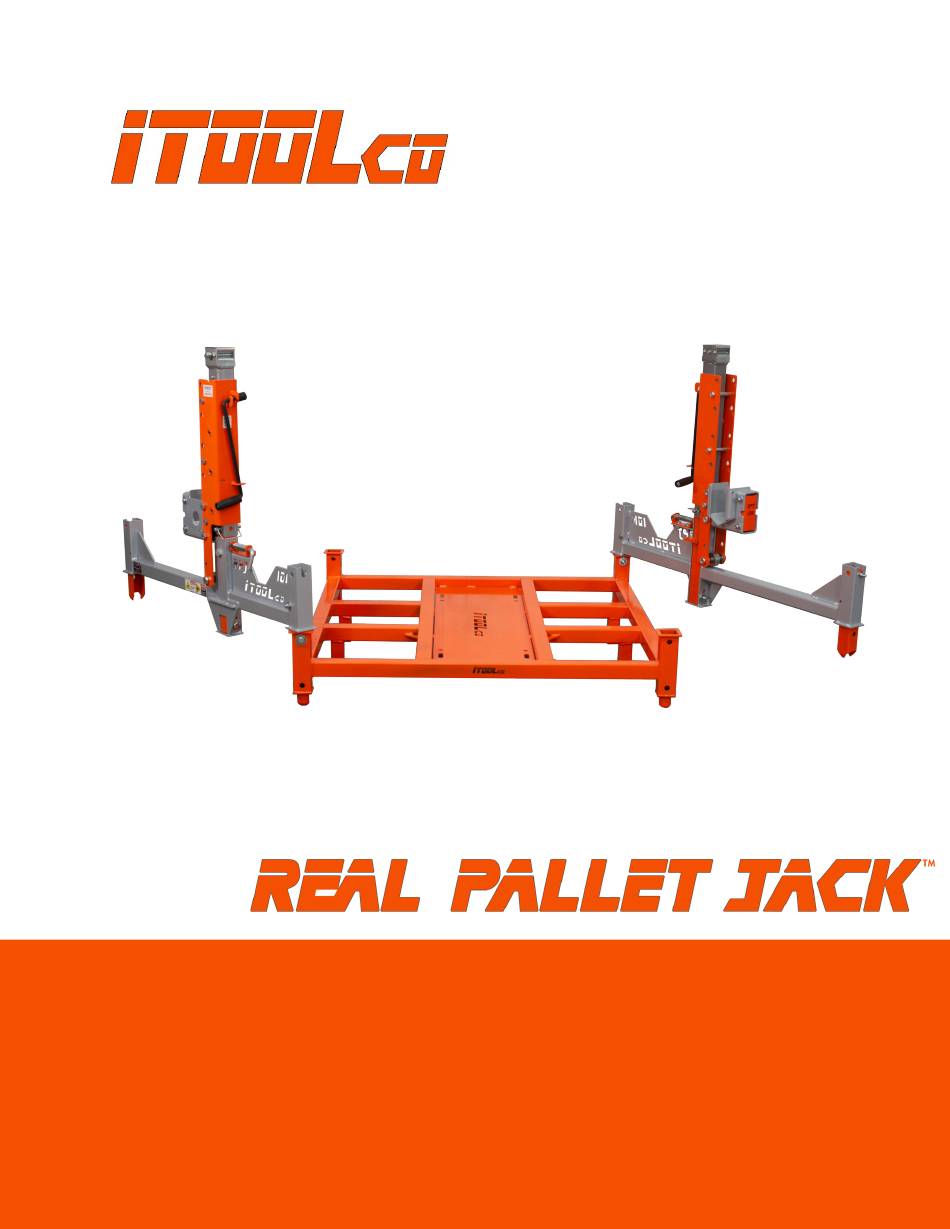

- Page 1 User’s Guide 1325 CARDEN FARM DRIVE | CLINTON, TN 37716 | 865.670.3713 | ITOOLCO.COM © 2021 PROPERTY OF ITOOLCO...
-
Page 2: Table Of Contents
AND SAFETY INFORMATION IN THIS MANUAL Contents SAFETY FIRST ..........................3 SAFETY ALERT SYMBOLS ......................3 IMPORTANT SAFETY INFORMATION FOR ITOOLCO’S REAL PALLET JACK ....4 DESCRIPTION AND IDENTIFICATION ..................6 SET-UP AND OPERATION ......................11 LIMITED WARRANTY: ITOOLCO REAL PALLET JACK ............. 13 ITOOLCO RPJ10K USER’S GUIDE... -
Page 3: Safety First
WARNING Hazards that, if not avoided, COULD result in severe injury or death. CAUTION Hazards or unsafe practices that, if not avoided, MAY result in injury or property damage. ITOOLCO RPJ10K USER’S GUIDE 2012RPJ10KUG P a g e | 3... -
Page 4: Important Safety Information For Itoolco's Real Pallet Jack
WARNING – ENTANGLEMENT HAZARD Do not operate this product while wearing loose-fitting clothing. Retain long hair. Keep hands clear of the Real Pallet Jack at all times. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. WARNING – PRODUCT USE HAZARDS Use this product for manufacturer’s intended purpose only. - Page 5 FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. WARNING – WORK AREA HAZARDS Keep work area clean and free of obstructions. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR DEATH. ITOOLCO RPJ10K USER’S GUIDE 2012RPJ10KUG P a g e | 5...
-
Page 6: Description And Identification
Pallet Jack are a portable, heavy-duty solution for transporting spools up to 10,000 lb. Made with all welded steel construction, loading and unloading the Real Pallet Jack is easy. Loading from the drum side minimizes the potential of wire damage from forks. The dual sided gates enable you to load spools from either side of the jack. - Page 7 ITOOLCO RPJ10K USER’S GUIDE 2012RPJ10KUG P a g e | 7...
- Page 8 ITOOLCO RPJ10K USER’S GUIDE 2012RPJ10KUG P a g e | 8...
- Page 9 Step 1: Make sure you have the following - Real Pallet Jack, two arbors, one axle, and the adjustable stop. Image 1 Step 2: The jack mechanism will need to be raised from its stored position to a vertical position to allow jack to snap into position Images 2.1,2.2,2.3,N.1.
- Page 10 NOTE: When folding and unfolding the jack, ensure that the orange plate on the Jack is above the engagement pin as shown. Image N.1 Step 3: Install Bumper Stop for spool placement on Real Pallet Jack as shown. Images 3.1,3.2.
-
Page 11: Set-Up And Operation
Repeat for both sides. Images 4.1,4.2. Step 5: With both gates open you are now ready to load the Real Pallet Jack. Image 5.1 ITOOLCO RPJ10K USER’S GUIDE 2012RPJ10KUG... - Page 12 Step 6: Pick up your spool from the drum side as shown. image 6.1 Step 7: Place spool by tapping the spool against the bumper stop as shown. Images 7.1,7.2. ITOOLCO RPJ10K USER’S GUIDE 2012RPJ10KUG P a g e | 12...
- Page 13 Step 9: Close gate on both sides as shown. Then insert drop pin. Note: Lift up on the gate to let it slide back onto the frame, drop locking pin in place. Image 9.1 ITOOLCO RPJ10K USER’S GUIDE 2012RPJ10KUG P a g e | 13...
- Page 14 Images 10 Step 11: During Transport the spool must be resting on the Real Pallet Jack and immobile with the jacks not lifting the spool. The Spool, Real Pallet Jack, and axle should all have their own strapping when traveling.
-
Page 15: Limited Warranty: Itoolco Real Pallet Jack
If the part(s) if found to be defective, iTOOLco will refund freight charges paid by you in returning the defective part(s) and prepay replacement part(s) freight charges. - Page 16 1325 CARDEN FARM DRIVE | CLINTON, TN 37716 | 865.670.3713 | ITOOLCO.COM © 2021 PROPERTY OF ITOOLCO ITOOLCO RPJ8K USER’S GUIDE 2012RPJ10KUG P a g e | 14...
