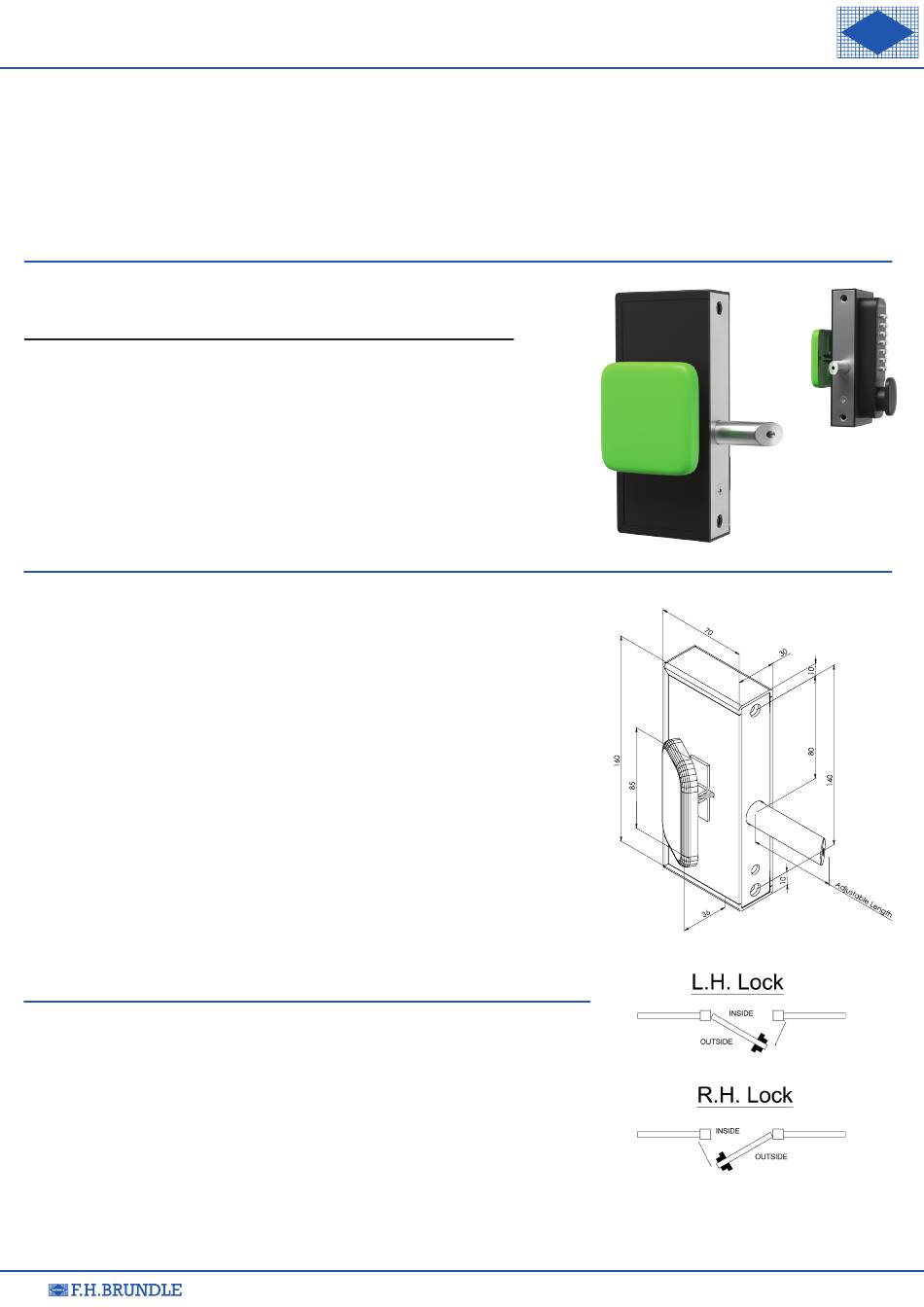

BRUNDLE 05SGCE30L Manual

QUICK EXIT GATE LOCKS
DIGITAL KEYPAD ACCESS ON ONE SIDE, PUSH PAD ON THE OTHER
Now in stainless steel, the locks have a quick exit push pad designed to facilitate rapid exit through gates
•
Stainless steel adjustable latchbolt which springs 15mm (
•
Supplied with bolt guide plate and gate post strike plate
•
A security shroud is available to prevent access to the push pad from the outside
•

PRODUCT DETAILS

Product code: Description:
05SGCE30L Quick Exit Gate Lock - Keypad One Side
Flat Bar/Box section up to 30mm - L/H
05SGCE40L Quick Exit Gate Lock - Keypad One Side
40 to 60mm Box Section - L/H
05SGCE30R Quick Exit Gate Lock - Keypad One Side
Flat Bar/Box section up to 30mm - R/H
05SGCE40R Quick Exit Gate Lock - Keypad One Side
40 to 60mm Box Section - R/H

INSTALLATION

Drill 2 x 9mm ( ⁄ ") holes at 140mm (5
1. 3
8
Drill a 18mm ( ⁄ ") clearance hole for the latchbolt at 60mm (2
3
2.
4
from the bottom fixing hole.
Hold the lock against the back of the box section and screw on the latchbolt
3.
through the larger hole.
Lock the latchbolt with the hex key supplied by inserting the hex key into the
4.
end of the latchbolt.
Fix lock in place using the stainless steel bolt support plate and the countersunk
5.
screws provided. Ensure the latchbolt moves freely.
Fix strike plate by either welding or screw fixing onto the gate post.
6.
Every 6 months, lubricate the latchbolt with light oil.

MAINTENANCE

7.
Annually, dismantle the lock and spray mechanism with light oil.

3 MONTHLY MAINTENANCE

Remove keypads from the lock.
1.
Spray the inside of the lock thoroughly with WD40 or equivalent, through the
2.
tumbler holes at the back of the lock.
Spray all the fixing accessories and the latch with WD40 or equivalent.
3.
Push each of the buttons and rotate the knob several times to make sure the
4.
lock is working smoothly.
⁄ ") into the gate post. Precise fitting on site
5
8
⁄ ") centres for fixing bolts provided.
1
2
⁄ ") centres up
3
8
BRUNDLE
Combination
keypad on
one side
(Right hand)
Page 1 of 2
