Trevi ME 3106 - Alarm Clock Meteo Station Manual

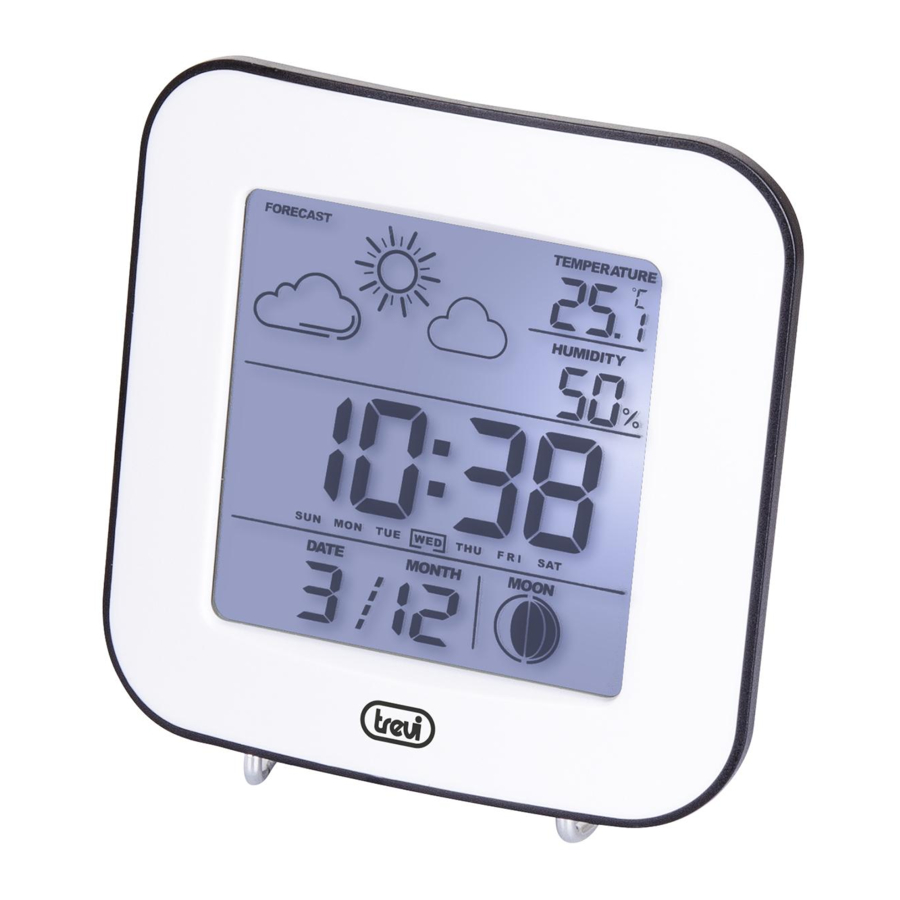

FUNCTIONS DESCRIPTION

1. Weather symbols icons
2. Temperature
3. Clock
4. Indoor humidity
5. Date
6. Moon phase
7. Key MODE, setting the date and clock / view clock and alarm
8. Key UP / AL, up key / alarm activation
9. Key DOWN / C/F, down key / change temperature °C/°F
10. Key MEM, view maximum and minimum values recorded for temperature and humidity
11. Key LIGHT, turn on backlight
12. Key SNZ, temporary deactivation of the alarm
13. Battery compartment 2xAAA (not included)
14. Alarm symbol

POWER SUPPLY

Open the battery compartment (13) on the rear of the appliance and insert two "AAA" size batteries respecting the polarities.

SETTING THE CLOCK

1. Press and hold the MODE key (7) to start the clock setting.
2. Set the time display 12/24 hours in by using the UP (8) or DOWN (9) key.
3. Press the MODE key (7), the hour will flash on the display.
4. Set the hour using the UP (8) or DOWN (9) keys.
5. Press the MODE key (7), the minutes will flash on the display.
6. Set the minutes using the UP (8) or DOWN (9) keys.
7. Press the MODE key (7), the year will flash on the display.
8. Set the year using the UP (8) or DOWN (9) keys.
9. Press the MODE key (7), the month will flash on the display.
10. Set the month using the UP (8) or DOWN (9) keys.
11. Press the MODE key (7), the day will flash on the display.
12. Set the day using the UP (8) or DOWN (9) keys.
13. Press the MODE key (7) to confirm and finish the clock setting.

SETTING AND ACTIVATING ALARM

1. Press the MODE key (7) to access the alarm function, recognisable by the Bell symbol appears on the right of the display (14).
2. Press and hold the MODE key (7) to start the alarm setting.
3. Set the hour using the UP (8) or DOWN (9) keys.
4. Press the MODE key (7), the minutes will flash on the display.
5. Set the minutes using the UP (8) or DOWN (9) keys.
6. Press the MODE key (7) to confirm and finish the alarm setting.
7. The alarm will be activated automatically and will display the clock.
8. At the set hour the alarm will be activated. To temporarily turn off the alarm press the SNZ key (12). The alarm will reactivate automatically after 5 minutes.
9. To turn off the alarm, press the UP / AL key (8) until the demise of the alarm symbol (14).

WEATHER FORECASTS

The digital barometer detects changes in barometric pressure and shows the weather forecast symbol (1). This weather forecast refers to the next 12/24 hours.

For example: If the barometer detects a high pressure, the display will show the symbol of the Sun, but externally it might rain.

Note:
The weather forecast symbols may not reflect the current conditions of the time. They refer only to future conditions.
The weather forecast may not be 100% secure due to various factors.
The manufacturer is not liable for any damages or situations caused by a wrong weather forecast.

TEMPERATURE AND HUMIDITY

The temperature value is located in the upper right corner of the display, while the humidity value is shown below the temperature. The values are automatically updated every 30 seconds.

1. Press the C/F key (9) to select the unit of measurement of temperature in °C or °F.
2. Press the MEM key (10) continuously to display the minimum and maximum values observed for temperature and humidity.
3. Bring on the maximum or minimum value and press and hold the MEM key (10) to reset the maximum or minimum value recorded of temperature and humidity.

MOON PHASE

Shows the lunar cycle in four phases (6).

TECHNICAL DATA

Weather station: from -9.9°C to +60°C

Indoor humidity: from 10% to 99% RH (relative humidity)

Unit: 0,1°C for the temperature
1% for the humidity

Watch: Quartz

Power Supply: 2xAAA
