Thermona RC03 Manual

Installation features and remote control use
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

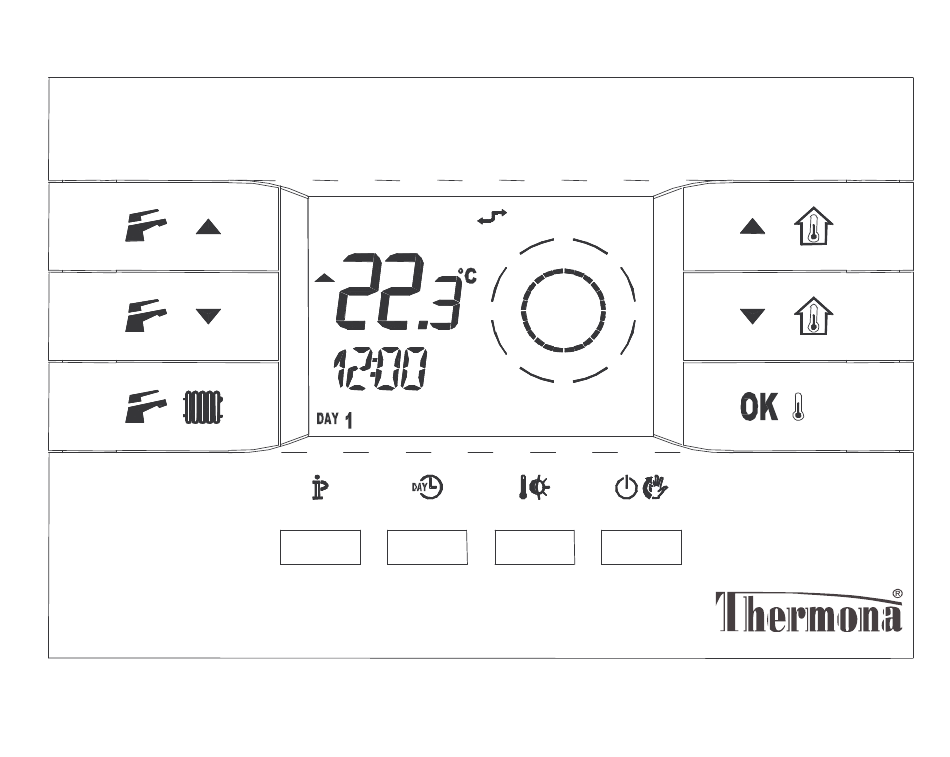

Installation Features and Remote Control Use
0
2
1
1
8
1
5
1 2

RC03

3
6
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC03 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermona RC03

  • Page 1: Rc03

    Installation Features and Remote Control Use RC03...

  • Page 2: Table Of Contents

    Temperatures......19 USE & REMOTE CONTROL 17 Time Scheduling Profiles PROGRAMMING Programming ........21 18 Time Scheduling Profiles ....24 RC03 ..........1 Remote Central Heating ....3 19 Central Heating Circuit Information Display Information......3 Menu Functioning Mode......4 20 Domestic Hot Water Circuit Information Menu ......26...

  • Page 3: Remote Central Heating

    7 Load Timer Function (if it is in manual Remote Central mode) or Holiday (if it is in automatic Heating mode) 8 Enter into Programming Mode (PROGR) or Information (INFO) 9 Only Domestic Hot Water Enabling – Domestic Hot Water/Central Heating – None 10 Domestic Hot Water Set-Point Temperature Decrease...

  • Page 4: Functioning Mode

    12 Central Heating in OFF Functioning Mode 13 Domestic Hot Water Function Enabled (SHOWER mode in progress if blinking) The Remote has three main operation modes: 14 Domestic Hot Water Request - Normal Operation (RUN) 15 Central Heating Request - User Programming Mode (PROGR) 16 Central Heating Function Enabled - Advanced Information Mode (INFO) (ANTI-FROST in progress if blinking)

  • Page 5: Time/Date Setting

    To shift from RUN to PROGR, briefly push To shift from RUN to INFO, push the button, text will scroll for few button for at least 3 seconds, text seconds will scroll for few seconds To return from PROGR to RUN, briefly To return from INFO a RUN, briefly push the push the button,...

  • Page 6: Central Heating And/Or Domestic Hot Water Enable

    By using buttons, it is possible to change the blinking value (Hours). By using buttons, it is possible Push buttons to select next set the blinking desired value (Day of value (Minutes). Week). Push button to exit and return to run mode. Central Heating and/or Domestic Hot Water enable It is possible to enable or disable the Only...

  • Page 7: Automatic, Manual, Off Functions

    Central Heating/Domestic Hot Water Special programs or enabled functions are enabled (WINTER) indicated by the presence of the following icons: Push Domestic Hot Water and Central Heating Functions enabled. Blinking Anti-frost Mode active. Only Domestic Hot Water enabled. Blinking Shower Mode active. Automatic, Manual, Off Functions Central Heating and/or Domestic Hot...
  • Page 8 - Off, the central heating system is in stand-by (eventually it activates, if the temperature goes below the Anti-Frost Mode when enabled). Timed sub-programs: - Automatic Forced, a timed temperature is fixed until the next set point and it works separately from the regulation profile in use.

  • Page 9: Timed Functions

    this sequence the Remote Control will proceed to activate the AUTOMATIC program. During the whole process, the remaining time at the timed function ending will be shown on the LCD. This period can vary between 10 – 90 minutes (MM: nn), it can be increased or decreased of 10 minute steps, or it can be in Special programs or enabled functions are hours from 2 to 47 (HH: nn), with 1 hour...
  • Page 10 From AUTOMATIC, push button to buttons, after activate TIMED OFF function. pushing Using buttons, set time period of TIMED OFF function. It is possible to stop timed functions by From MANUAL, push to activate the pushing when desired. TIMED MANUAL function. From Manual to Timed Manual From the MANUAL function you can access the TIMED MANUAL function by...
  • Page 11 From Automatic to Forced Automatic From the AUTOMATIC function you can access the FORCED AUTOMATIC function by pushing , so you can set the function for example from a temperature to an temperature. buttons to increase decrease room set-point temperature. Push to confirm the change.

  • Page 12: Modification Set-Point Room Temperature

    Push to confirm and exit. Push (increase) and (decrease) buttons to change room set-point temperature These functions ROOM (ROOM SETTING). TEMPERATURE are kept until the next Push to confirm and exit. programmed SET-POINT Push to load the COMFORT and AUTOMATIC function. When it reaches ECONOMY settings.

  • Page 13: Domestic Hot Water Temperature

    Select to load directly either the COMFORT or the ECONOMY setting, by pushing the same button more times. Domestic Hot Water Temperature If you enable the domestic hot water function icon , Domestic Hot Water Push buttons to modify temperature (DOMESTIC HOT WATER DOMESTIC HOT WATER SET-POINT.

  • Page 14: Central Heating Circuit Temperature14

    message will flash for few seconds at the bottom and icon will flash at the top. This is a timed function and it lasts 1 hour, it is shown by the presence of the blinking icon for all its duration time. To reset the ordinary domestic hot water temperature, push buttons and then push...

  • Page 15: Enabling Or Disabling

    INFO mode. Keep pressed for at least Keep pressed for at least 3 seconds to 3 seconds to enter into INFO mode. enter into INFO mode. Push several times to enter into the menu. Push several times to enter into the menu.

  • Page 16: Reset With Reloading Of Factory Values

    LCD. Push several times to enter into the menu. Keep both buttons pushed for 6 seconds until the COMPLETE system RESET (display switch-off). To delete the settings, simply release the buttons. Push buttons to enable 1 ATTENTION: After the operation all or disable 0 the function.

  • Page 17: Central Heating Error Signals And Block/Release From Remote

    If error persists, call technical assistance. Central Heating Error Signals and Block/Release If LOCK occurs, blinking icons appear with the message, which from Remote alternate to message every 2 seconds. There are two main errors displayed by This means it is possible to lock-out the the Remote.

  • Page 18: Room And Domestic Hot Water Temperature

    Push button to enter into PROGRAMMING mode. Push button to see the COMFORT temperature set-point. After pushing button, the remote sends the order to LOCK-OUT indicated by the blinking button which alternates to the blinking message every 2 seconds, until the central heating turns automatically working ordinarily.

  • Page 19: Room And Domestic Hot Water Set-Point Temperatures

    Push button to see the OFF Room and Domestic Hot temperature set-point (Anti-frost Water Set-point or Off Set. Temperatures The COMFORT Room temperature can be set between 10° C and 35° C in increments of 0,1° C. This is possible also for the ECONOMY Room temperature.
  • Page 20 To modify temperature settings, push either buttons. Push button to save the new ECONOMY set-point value or to see the OFF set-point value (Anti-Frost or OFF Set. Push button to see the COMFORT temperature set-point. To modify temperature settings, push either buttons.

  • Page 21: Time Scheduling Profiles Programming

    Time Scheduling Profiles Programming DAY/DAYS GROUP SELECTION Once entered into programming mode by first pressing and then , it is possible to see the DAY/DAYS GROUP selection menu. From here can be displayed the associated time programming menu which is related to the Automatic functioning.
  • Page 22 Push button to enter into PROGRAMMING mode. Push to enter into the first range of time. SET ON/OFF TIME DEFINITION Within a 24 hour period, it is possible to define a maximum of 4 COMFORT ranges Push to enter into the DAY/DAYS (see Section 18) each setting is defined by an selection menu.
  • Page 23 the fourth switching off OFF4. Push button to enter into the first range of time. Push buttons to change the second switching-on range of time. Push buttons to modify Push button to save that time and the first switching-on range of time. select the second switching-off range of time.

  • Page 24: Time Scheduling Profiles

    ON 4 TEMPERATURE Time Scheduling Profiles OFF 4 ON 2 OFF 2 ON 1 OFF 1 ON 3 OFF 3 20.0° C TIME SCHEDULING represents course of the desired room temperature within a 24hr period. In this case, the display will show time intervals in succession while temperature is kept on a constant level.

  • Page 25: Central Heating Circuit Information Menu

    value linked displayed TEMPERATURE ON 2...4 OFF 2...4 parameter (layout). ON 1 OFF 1 20.0° C If the parameter is not administered by the central heating connected to the Remote, some dashes will appear in place of the value 15.0° C Push button and keep it pushed for at least 3 seconds to enter into INFO mode.

  • Page 26: Domestic Hot Water Circuit Information Menu

    Push button to pass from one menu to another (Return Water Temperature). Push button to exit and return to RUN MODE. Domestic Hot Water Circuit Push button to pass from one menu Information Menu to another (CH Set-Point Temperature). Push button to pass from one menu another (maximum...
  • Page 27 - Real domestic hot water temperature in - Maximum temperature for hot water outlet: message. supply (maximum domestic hot water - Temperature setting for hot water supply circuit set point), message. (domestic hot water circuit set point), - Minimum temperature (minimum domestic hot water circuit set point), message.

  • Page 28: Advanced Menu Information

    Advanced Menu Information - Level power/modulation of flame (0…100%), PWR% message. - Heating circuit water pressure (0,0…5,0bar), P BAR message. Push button to shift from one - Domestic water flow outlet menu to another. (0,0…16,0litri/min), F L/M message. - Outside temperature (-40…99°...
  • Page 29 (0,5..6,5), K_REG message. By pushing set a value. “0” indicates non- buttons you can set a value functioning, whereas “1” indicates and vary it according to the data processed functioning. by the algorithm. A high value makes the - Functioning Anti-Frost function, temperature rise within the heating circuit...
  • Page 30 Push buttons to modify value. Push button to shift from one menu to another. Push buttons to modify value. Push button to shift from one menu to another. Push buttons to modify value. Push button to shift from one menu to another.

  • Page 31: Warnings

    Warnings Electrical installation must be complied with technical regulations; in particular: - electrical conductors for the Remote control connection to the heating system must run through different ductable units from the ones at a voltage tension of 230V, because powered by a low security voltage. fig.1 On no account, the manufacturer will It can be fixed straight to the wall or...
  • Page 32 Electrical conductors for the Remote control connection to the heating system must run through different ductable units from the ones at a voltage tension of 230V, because powered by a low security voltage and their length must be inferior to 50 meters. 1 Put a small straight blade screwdriver into the slot as indicated in figure1 and lever to release the remote control from its...
