Nine Stars DZT-70-11 User Manual

User's Manual

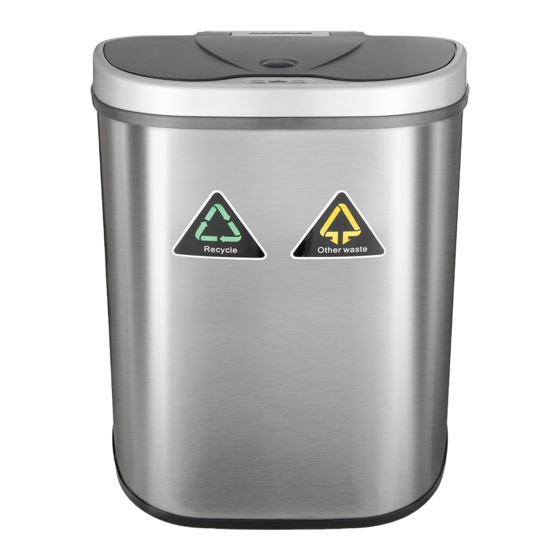

DUAL OR SINGLE COMPARTMENT MOTION SENSOR TRASH CAN
Introduction
Thank you for choosing Nine Stars Motion Sensor trash can. As the leader in smart trash can
technology, we're pleased to offer the most versatile, intuitive and reliable waste solutions on
the market. Our products are designed to fit seamlessly into any living space, be easily
maintained and effortlessly operated. Simply move an object or hand above the strategically
placed infrared motion sensor (located near the lip of the lid) and the lid will open
automatically. Once the object or the hand is out of the sensor range, the lid will close
automatically within seconds. We at Nine Stars use the highest quality materials and the latest
technology in our products to ensure reliable function and durability. Thank you again for your
business and we sincerely hope that you enjoy your unit.
Hands-Free
Automatic Lid
Liner Ring(s) (Inside)
- Support Trash Bag
LED Light & Infrared
Motion Detecting Sensor
Patented Product
Note: This trash can is intended for indoor use only.
Step 1 - Remove all components
from the box
• Lid
• Three Liner Rings
• Base
Step 2 - Compartment Setup
• Dual Compartment Trash Can:
Install the middle divider at the bottom center groove,
insert the top portion into the clips on the top of the
trash can, and install the two small liner rings.
• Single Compartment 18 Gallon Trash Can:
Remove the plastic clips at the top of the trash can by
squeezing it from the inside of the trash can & pulling
away, and install the large liner ring.
Step 4 - Insert trash bag
Insert the trash bag using the liner ring (see diagram).
Fold the upper rim of the bag around the liner ring.
Place the trash bag and the liner ring in the trash
container. Tuck the bag completely into the bottom of
the container so that the edges of the bag will be
concealed once the lid is placed on top. **DO NOT
put the liner ring inside the bag**
Step 5 - Trash can set up
Align the lid with the base and gently place the lid on
top.
Step 6 - Turning the trash can On/Off
The power switch is located on the back side of the
lid. When the switch is in the "I" position the trash
can is ON. When the switch is in the "O" position
the trash can is OFF.
Step 7 - Using the trash can
Place your hand or an object within inches of the
motion sensor (located on the lid). The lid will open
instantly. Once your hand or object is out of the
sensor range, the lid will close automatically within
seconds. The lid will remain open if the object stays
within the sensor range.
Sensor Instruction:
Sensitivity Adjustment:
When DZT-80-21R is on, the left button can be used to adjust the sensitivity range of the
sensor. A range of 3" to 12" can selected by using the following settings. Selecting 1 choses
the lowest distance and 9 would select the largest.
Countdown Timer:
When the sensor opens the lid, a count down timer starts counting down from 5 to 1 before
the lid closes. If the sensor is triggered during the count down it resets to 5 and begins
counting down again. The lid will only close when the sensor does not detect any motion for
5 seconds.
Battery Life Indicator:
When the lid is opening and closing there are lines displaying the battery life
Battery Life Indicator: 3 = Fully Charged
2 = Draining
1 = Time to Change Batteries
Overview
Power Saving On/Off
Switch (On the Back Side
of the Gear)
Battery Compartment
- Underneath the Lid
(Fits 3 "D" Batteries
Not Included)
Fingerprint Resistant
Stainless Steel Body
Capacity: 9.25 Gal/
37.5L (Each side)
Instruction
LED light indicators:
A. To turn ON the trash can: Turn the power switch into the "I" position and a flashing red
light will appear, which indicates the trash can is in sensor mode.
B. To open the lid: Wave above sensor, a solid green light will appear when the lid opens.
C. Lid Closing: A solid red light will appear when the lid is closing.
D. Low Battery: A flashing yellow light will appear when battery power is low. Please
replace batteries.
1. Align batteries according to the positive and negative poles.
2. Do not submerge the trash can into water because it is equipped with many electrical
components. The trash can may be wiped with a damp cloth.
3. Do not manually force the lid close; this can cause damage to the internal gears. If the
gears are damaged, the automatic lid will not function properly.
4. Replace used batteries in a timely manner to prevent battery acid leakage. Battery acid
may cause damage to the electrical components of the trash can.
5. Do not mix new and used batteries.
6. Do not place trash can in direct sunlight or a heavily moisturized environment.
7. Do not mix alkaline, standard (zinc-carbon), or rechargeable (NiCad, NiMH, etc) batteries.
8. Batteries are harmful if swallowed, so keep away from young children.
Lid does not open
Lid does not close
Indicator light is a constant
Green
Made in China
Lid opens slowly and
indicator light flashes yellow
Note: If the above solutions do not correct the problem please contact Nine Stars Customer
Lid
Service.
Liner Rings
Base
What does this Warranty cover?
- This warranty covers the electronic mechanism of the lid such as the computer chip,
motor, gear box and electrical circuits only.
How long does the coverage last?
- This warranty is valid two years from the date of purchase.
What will Nine Stars do?
- Nine Stars will fix or replace any defective or malfunctioning lid.
- Customer is responsible for returning the defective or malfunctioning lid (entire top unit of
the Trash Can) to Nine Stars. The customer is also responsible for shipping charges to
return the product to us. Nine Stars will pay for shipping charges back to the customer if
the lid is covered under our warranty program outlined in this document.
Trash Bag
What does the warranty not cover?
Liner Ring
- The base of the unit, battery caps (if applicable), liner rings (if applicable), inner bucket (if
applicable), or any problems with the automatic lid caused by abuse, misuse, or natural
disasters (such as earthquakes, floods and fires) are not covered.
- User's modifications or alterations to Nine Stars products will void User's Warranty.
- Only our authorized distributors will be covered under our warranty. We will NOT
warranty products purchased from auctions, auctioneers, discount/closeout stores.
How do you get service?
Place rear side
down first
Follow these steps to be eligible for service under warranty
1. Register your product within 30 days of purchase. Register your product online at
www.ninestarsusa.com/register, an email will be sent to you as the confirmation.
Please reply with proof of purchase (such as a copy of original sales receipt) to
completed the product registration.
ON
2. Return authorization is required, please make sure you contact Nine Stars before
OFF
sending your unit
3. If you have any technical questions or problems, please contact us via email:
info@ninestarsusa.com or call us at 1-866-978-2778, M-F, 8:30am to 5:30pm PST
How does state law apply?
- This warranty gives you specific legal rights and you may also have other rights that vary
from state to state.
All Nine Stars products are covered by a two-year warranty.
product within 30 days of purchase.
Product registration is as easy as 3 steps:
Step 1 - Go to www.ninestarsusa.com/register
or scan the QR code
Step 2 - Complete the online form
Step 3 - A confirmation email will be sent to the registered
email. Reply with a proof of purchase (such as a
copy of original sales receipt) to completed the
product registration
CONTACT US:
Tel: 866.978-2778
Web: www.ninestarsusa.com
Email: info@ninestarsusa.com
Add.: 1775 S. Business Pkwy., Ontario, CA 91761
Technical Facts
Warning
Troubleshooting
Errors
- Place the power switch in "I" position and check if
batteries are placed in correctly.
- Wipe the sensor with a dry cloth.
- Press the"CLOSE" button to reset the trash can.
- Check to see if there are any objects within the
sensor area. If there are, remove them.
- If something is preventing the lid from closing, remove
the item and press the "close" button to reset your
trash can.
- Battery power is low. Replace the batteries.
Limited Warranty
Register Your Product
Solutions
Register your
