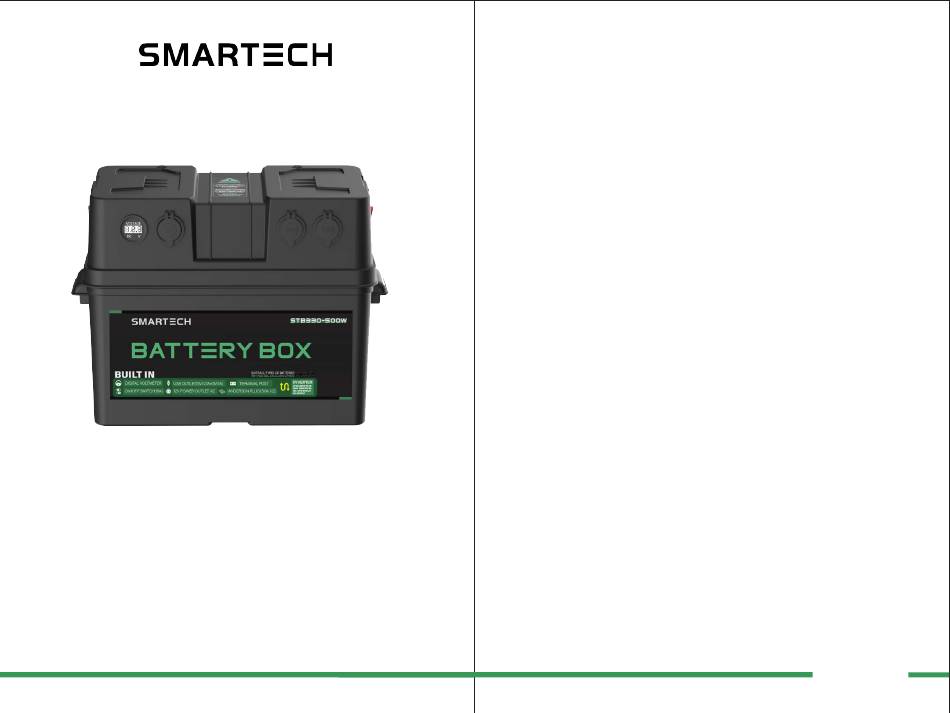

Smartech STB330-500W User Manual

Battery box

STB330-500W

BATTE RY BOX

USE R MAN UAL

PLEASE READ THIS USER MANUAL

BEFORE USE

WARNINGS AND SAFETY INFORMATION

BATTE RY NOT INCLUDED

• Before installing a battery in the Battery Box, ensure that you

have read through all relevant product and safety information for

your battery.

• Do not insert foreign objects into the ports of the battery box as

this may lead to electric shock

• Do not submerge the battery box in liquids.

• Do not attach a battery to the battery box if your hands are

currently exposed to moisture or rain.

• Do not expose the battery box to extreme temperatures.

• When charging ensure adequate ventilation is provided to

dissipate heat and battery gases. Keep clear of naked flames,

sparks or conductive material while charging a battery.

• Do not attempt to disassemble the battery box as this may result

in electric shock ,fire or explosion. Any attempt to disassemble,

perform unapproved repairs or make modifications to the battery

box will void the warranty.

• Always use safe lifting techniques when lifting and installing the

battery box.

• The battery box is not intended to be installed or operated by

people (including children) with reduced physical or mental

capabilities, or those who are under the influence of drugs or

alcohol.

• Make sure that you attach the correct wires to the appropriate

terminals of your battery; incorrect installation could result in

damage to the unit or voiding of the warranty.

• Do not use the battery box to charge medical devices.

Battery Box Manual 1

Table of Contents

Do you have a question about the STB330-500W and is the answer not in the manual?

Page 1 WARNINGS AND SAFETY INFORMATION BATTE RY NOT INCLUDED STB330-500W • Before installing a battery in the Battery Box, ensure that you have read through all relevant product and safety information for your battery. • Do not insert foreign objects into the ports of the battery box as this may lead to electric shock •...
Page 2 Installing a Battery (1)Negative(-) (2) Strap (3)Positive(+) terminal terminal Inverter switch ON /OFF AC outlet Positive(+) (10)Anderson terminal plugs (4)AC outlet (5)Inverter (9)Switch switch On/off ON /OFF Negative(-) terminal (8)Digital voltmeter (6)Cigarette socket (7)USB ports Voltmeter (1)Negative(-) terminal (2)Strap On/Off (3)Positive(+) terminal switch (4)AC outlet (220V 50HZ,Rated power 500W)
Page 3 AC OUTLET USE POSITIVE(+) N EGATIVE(-) I NVE RTE R START SWITCH 1. Remove the lid of the Battery Box. 2. Place the battery in the battery box. 3. Attach the eyelets from the battery box lid to the corresponding positive and negative terminals on the battery.
Page 4 How to lodge a claim: If you believe your product to be defective due to a manufacturing fault, please contact SMARTECH directly. If the product is confirmed as defective we will repair or replace it under the terms of the relevant warranty.
