spectrotec TORNADO 2000 Instructions For Use

5. Operation and maintenance
5.1 Make shure that seals, sealing surfaces and pressure gauges are in good status.
5.2 Pressure regulators are always to be protect against damage (visual inspection in
regular intervals).
! 5.3 In case of malfunctions, e. g. an increase of the outlet pressure during the supply,
or in case of leakage versus atmosphere or a defective pressure gauge, shut down
the upstream gas supply and take the pressure regulator out of operation.
6. Shut-down
6. 1 For short-term interuption of work, it is sufficient to close the shut-off valve at
the consumer unit.
6. 2 For longer interuptions or to end the work, close shut-off valve (1) first. After the
pressure regulator has been depressurised, release the hand knob (4). Close shut-
off valve at the consumer unit.
6. 3 Before disassembling the pressure regulator, make sure that all pressure gauges
!
display zero.
7. Repair
7.1 Repairs may only be carried out
persons.
7.2 Only original spare parts must be used. The materials have been adapted to the
gas type in each instance. So always specifiy the gas type.
7.3 In case of independent repairs, the use of non-original spare parts or changes on
the side of the user or a third party without the approval of the manufacturer, any
form of liability for resulting damages will expire as well as the manufacturers
warranty.
7.4 After being repaired, the pressure regulator must be checked with respect to
proper function, leak-tightness and cleanliness of the gas-wetted surfaces.When
the system is used again, a sufficient purging operation must be carried out first.
GES_ET2000-D Edition 0211
Subject to alteration without prior notice
© Spectron Gas Control Systems GmbH
in authorized repair workshops by expert
-4-
Instructions for use
TORNADO 2000
Pressure regulator for tapping points
Contents
page
1 Application
1.1 Designates use 1
1.2 Non-designated use 1
1.3 Technical data 2
2. Safety instructions 2
3. Labelling 3
4. Start-up 3
5 Operation and maintenance 4
6 Shut-down 4
7 Repair 4
1. Application
1.1 Designated use

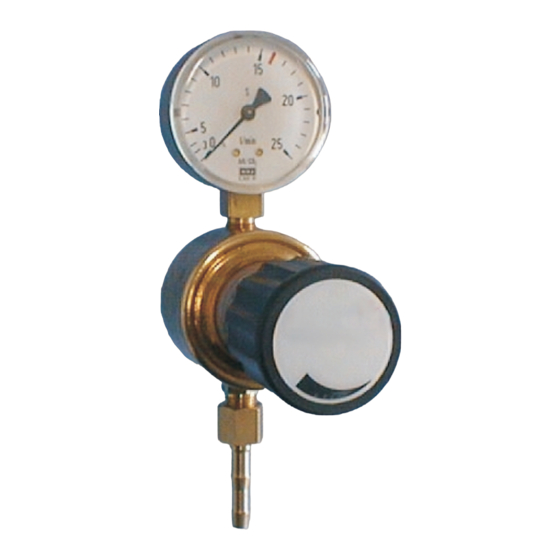

Use the pressure regulator for tapping points TORNADO 2000 with an suitable
shut-off valve for gases dissolved under pressure, compressed or liquefied
gases. The pressure regulator TORNADO 2000 reduces an inlet pressure
as constant as possible outlet pressure.
1.2 Non-designated use
!
Do not use the pressure regulator for gases in the liquid phase.
!
Do not use for unsuitable types of gas or corrosive gases.
! Do not use at temperatures below -30°C or above +60°C.
The system has to be used according to these instructions for use and especially
the safety instructions!
spectro tec
to an
-1-
