REV Discovery W/AH
V3
GUI
V2
LC
OEM Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGATOUCH REV Discovery W/AH V3 and is the answer not in the manual?

Questions and answers

Related Manuals for Firefly Integrations VEGATOUCH REV Discovery W/AH V3

Summary of Contents for Firefly Integrations VEGATOUCH REV Discovery W/AH V3

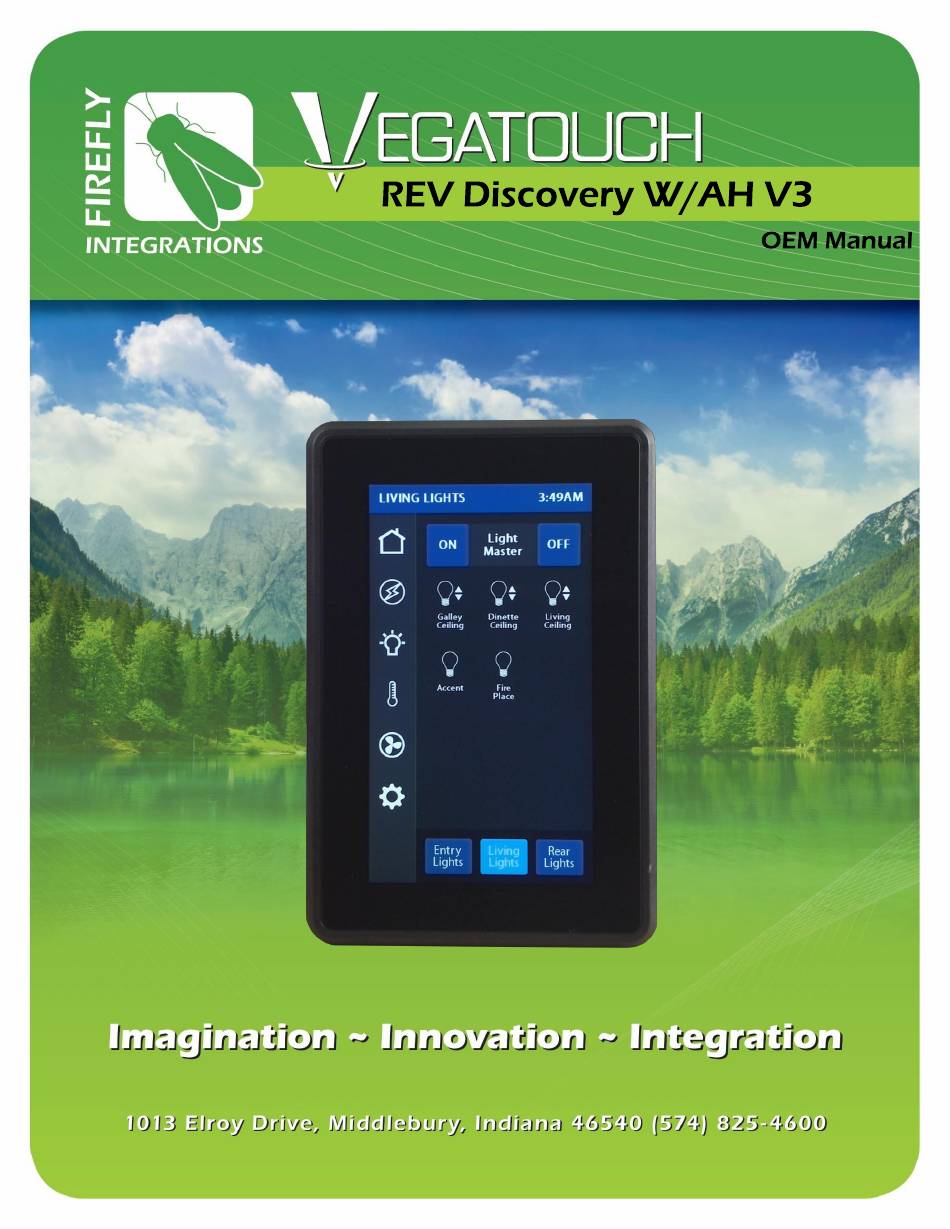

  • Page 1 REV Discovery W/AH OEM Manual...

  • Page 2: Table Of Contents

    REV Discovery with Aqua-Hot V3 OEM Manual All information contained in this document is subject to change without notice. Table of Contents Lynx Screen Navigation Home Electrical AC Power IC Status EMS Load Status 1013 Elroy Drive GEN AGS Options Middlebury, Indiana 46540 GEN AGS Settings Phone: (574) 825-4600...

  • Page 3: Lynx Screen Navigation

    Lynx Screen Navigation Tap any icon from the navigation menu to select the desired page. The currently selected page will always be listed in the top corner of the screen. After 90 seconds of inactivity, the touch screen will automatically change to the Lights page. Home Electrical Lights...

  • Page 4: Home

    Home These graphics represent the percentage filled for holding tanks. Climate Control Status – The current temperature and climate control mode for each zone will display on the home screen. A white fan graphic will represent Fan mode, a blue snowflake will represent Air Conditioning, a red flame graphic will represent Aqua- Hot and a Radiant Heat icon will represent Heat Pump.

  • Page 5: Ac Power

    AC Power- This section will give an overview of the AC power information that is given from your transfer switch and inverter. DC Voltage – These graphics represent the voltage available from your House and Chassis batteries. The battery icons will display Green above 12V and Red below 12V.
  • Page 6 Electrical/AC Power Shore Line Display – AC power displays the voltage, amperage draw and frequency for each line. Power Source Select – 50 amp shore power will display automatically if connected to a 50 amp line. Tap to select 30, 20 or 15 amp if your coach is connected to a 30 amp line.
  • Page 7 Electrical/AC Power/IC Status DC and AC power information that is being received by the Transfer Switch and Inverter. This section will display any related faults and the inverter bridge technical information.
  • Page 8 Electrical/AC Power/EMS Load Status Energy Management System (EMS) – EMS will ensure that power is available before allowing certain systems to run. If power is not available, it will not allow particular systems to run (shed the load).
  • Page 9 Electrical/AC Power/Gen AGS Options Tap to Enable/Disable AGS. Note, if enabling, a warning screen will appear which will require action to proceed. Press and hold the Enable button for 3 seconds to enable AGS. Trigger Options – Automatically start the generator using specified voltage settings (Low Volts), when Climate Control energy needs arise (HVAC Load), or when Shore Power is insufficient.
  • Page 10 Electrical/AC Power/Gen Settings/AGS Settings Start at Volts - The generator will start when the voltage drops to this set point depending on “Time a Volts” setting below. (Range 10.5v – 12.5v) Time at Start Volts - The generator will start when the voltage drops to the Start at Voltage for this specific amount of time.
  • Page 11 Electrical/AC Power/Gen AGS Options/Gen Setup Tap the arrows to adjust the Max gen amps. This setting should only be adjusted if the generator was changed or upgraded.

  • Page 12: Dc Power

    Electrical/DC Power These graphics represent the DC voltage available from the House and Chassis batteries. They will display Green above 12V and Red below 12V. Inverter/Charger Amps and Charge Rate setting. Tap the buttons to operate the Inverter or Charger.
  • Page 13 Electrical/AC Power/IC Options Low Battery Cutout – Tap the buttons to set the DC Voltage level that turns off the inverter. This protects the batteries from over-discharge damage. VAC Dropout – Tap the buttons to set the minimum AC voltage that must be present before the inverter kicks off and switches the coach back to AC power.
  • Page 14 Electrical/DC Power/IC Battery Options Tap the buttons to select your required battery amp hours. Tap to select your required battery setting. Please contact REV directly for recommended battery settings.

  • Page 15: Lights

    Lights This screen will control the lighting for the entire coach, including the exterior. Tap any button to turn the desired light On/Off. Lights with up/down arrows are dimmable. Press and hold these buttons to ramp the brightness up or down.

  • Page 16: Climate Control

    Climate Control Current Temperature by zone with climate mode graphic and fan speed indicator. Tap the arrows to select your desired temperature, also known as Set Temp. Cool – Tap to operate the air conditioning. The A/C will run until the current temp reaches your desired temp and then shut off.
  • Page 17 Climate Control/Floor Heat Manual Mode Tap to enable/disable Manual or Schedule mode. In Manual mode, tap the arrows to select between 10 levels of floor heat. Tap to select a Floor Heat Zone.
  • Page 18 Climate Control/Floor Heat Schedule Mode Tap to enable/disable a schedule mode. Tap to select between 10 levels of floor heat. Tap the buttons to select your desired time period where floor heat will be active.

  • Page 19: Fans

    Fans Tap the Lid Arrow Up button to raise the lid completely. If you do not want to open the lid completely, Press and Hold the button and remove your finger when you would like to stop the lid. Tap the Power button to toggle the fan On/Off.

  • Page 20: Settings

    Settings Tap the buttons to select between 10 levels of screen brightness and off. Tap the Hour and Minute arrows to adjust the time. Tap the Temperature Units display to toggle between Fahrenheit and Celsius. This box displays the Floorplan. Cleaning Mode –...
  • Page 21 Settings/Additional Options Press and hold the Floorplan box for 7 seconds to enter the Floorplan Options page. Tap Proceed on the Warning page to continue.
  • Page 22 Coach Model Selection – Tap the appropriate Floorplan for the coach. Once selected, tap More Options to select lighting and HVAC options. Tap Confirm Changes to save and exit.
  • Page 23 Settings/Mobile App Vegatouch Mira is a wireless control module that easily connects to any Android or iOS device to give total control to many electrical, electronic and mechanical systems in your coach. Pair any device with the coach’s built-in interface to monitor and control many coach components.

  • Page 24: Vegatouch Module

    If the floorplan is blank, Mira won’t be able to connect. The network cable could also be faulty. Inspect the cable at both ends and replace it if necessary. If the cabling and setup seem to be correct, contact Firefly Integrations about possibly replacing the Mira module.

  • Page 25: Vegatouch Mira Setup

    Vegatouch Mira Setup Notice: Make sure that Bluetooth is turned ON in your smart device settings before proceeding. Locate the Login Information: The login information can be found by clicking on the Mobile App button on the settings page of the touchscreen or from the Mira module’s label.
  • Page 26 Notice: iOS Setup Tips Turn on Bluetooth to allow Vegatouch Mira to connect to Accessories. If you do not have Bluetooth turned ON in your iOS settings you will see this screen. Do not click OK, you must click SETTINGS. Your Bluetooth Settings page will now appear and you should turn Bluetooth ON.
  • Page 27 App Settings: Access the App Settings page by tapping the triangle (at the bottom of the screen) to expose the Settings button. Tap the gear to visit the settings page. Tap to Temperature Units selection to choose between Fahrenheit and Celsius. System Information and Mira Name.
  • Page 28 Diagnostic Tools: Tap to display a list of currently connected devices. Remote Help is available by calling Firefly Integrations. Do not enable remote help without consultation.

  • Page 29: Ssp18 Switch Panels

    SSP18 Switch Panels Your coach uses SSP18 switch panels to control lighting and other functions. Lights that are dimmable will have Up/Down arrows next to the icon. Press and hold these buttons to ramp the brightness up and down. Status Indicator: Most individual switch panel buttons feature color changing backlighting that will illuminate blue when the circuit is on and white when the circuit is off.
  • Page 30 G6 DC Panel Your G6 control panel is the power distribution center for the coach. This panel receives the signals sent from your switch panels and performs the actions that have been requested by activating and deactivating the required circuits. Every circuit controlled by the G6 is numbered and listed on the black label (load list) of the G6 panel.

  • Page 31: Networking

    Networking Your distribution panel, touchscreen, and switch panels are connected via your coach’s RV-C network. Each component will have a NET LED that is used to show network status. If a NET LED is displaying anything other than solid green and some of the panel’s functions are not working, please contact your manufacturer for Technical Support.

  • Page 32: Network Troubleshooting

    Network Troubleshooting Resistance Test: If you suspect a network issue, the first test to do is a resistance test. Take a multimeter and turn it to OHMS. The reading can be taken anywhere CAN L and CAN H are present. The easiest place to take this measurement will be on a trunk cable connector (Fig...
