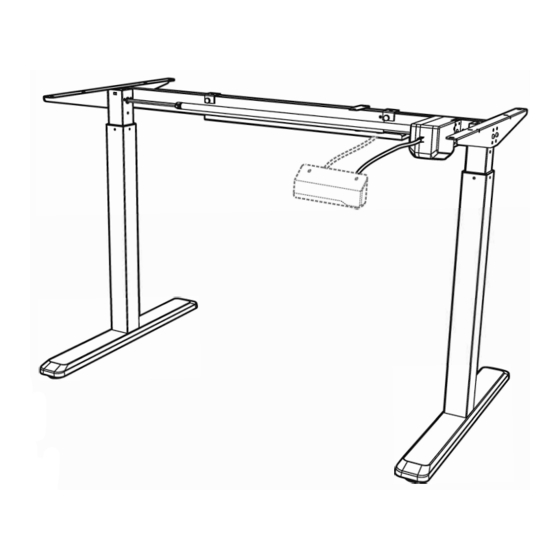

Summary of Contents for EAZY DESK SINGLE SIT STAND DESK
- Page 1 Instruction Manual SINCLE SIT STAND DESK...
- Page 2 Things you need to know Please check all of the components shown in the component checklist. If any of the components are missing or damaged, contact Eazy Desk for a replacement. Don't disassemble or replace before assembly Don't operate the system if the control box makes noise or odor.
- Page 3 Checklist And Installation S-A (x28) , S-B (x10) � S-D (X4) Phillips Head Screw for Cable Rack S-G (x1) E (X2) F (X1) G (X2) H (XI) Allen Key Side Bracket AC Adapter Hook Lifting Column I (x1) J (x1) K(x1) Lilting Column Power Plug...
-
Page 4: Assembling The Frame
1 Assembling The Frame 2 Assembling The Lifting Columns • Please prepare a spacious area for installation • Loosen the hex head screws that fix the adjustable junction, but don't completely take out the screws. • Insert one lifting column into one end of the crossbar with the head of the lifting column facing inward. -
Page 5: Installing The Feet
4 Installing the Feet 3 Installing the Side Brackets • Place the foot on the bottom of the lifting column. • Attach the side brackets8 to the end of Align the mounting holes on the foot with the screw the crossbar using the 2 screws holes on the lifting column. - Page 6 Assembling the Sync Rod • Install the sync rod as shown below make sure it is firmly in and retighten the knob • Match the red line on the sync rod with the right side of lelt leg. Match the right side of the right knob of the sync rod with the red line on the rod of the gearbox.
- Page 7 6 Assembling the Cable Management Tray 7 Connecting Cords and Attaching the AC Adapter Align the mounting holes on the tray hangers with the screw holes • Connect the AC adapter Gwith controneO on the cable management tray. Assemble the tray hangers to the •...
- Page 8 8 Assembling the Desktop • Attach the controller to the desktop with 2 screws el., • Stick the adhesive cable clip� under desk to organize cords. • Align the screw holes previously drilled on the desktop with the mounting holes on the crossbar. •...
- Page 9 Connect the desk to power. You can now use the sit-stand desk . Note: We have another manual of the digital controller for detailed instruction. Please check the Digital Control Panel For Electric Height Adjustable Desk User Guide. Eazy Desk www.eazydesk.com.ph sales@eazydesk.com.ph...
