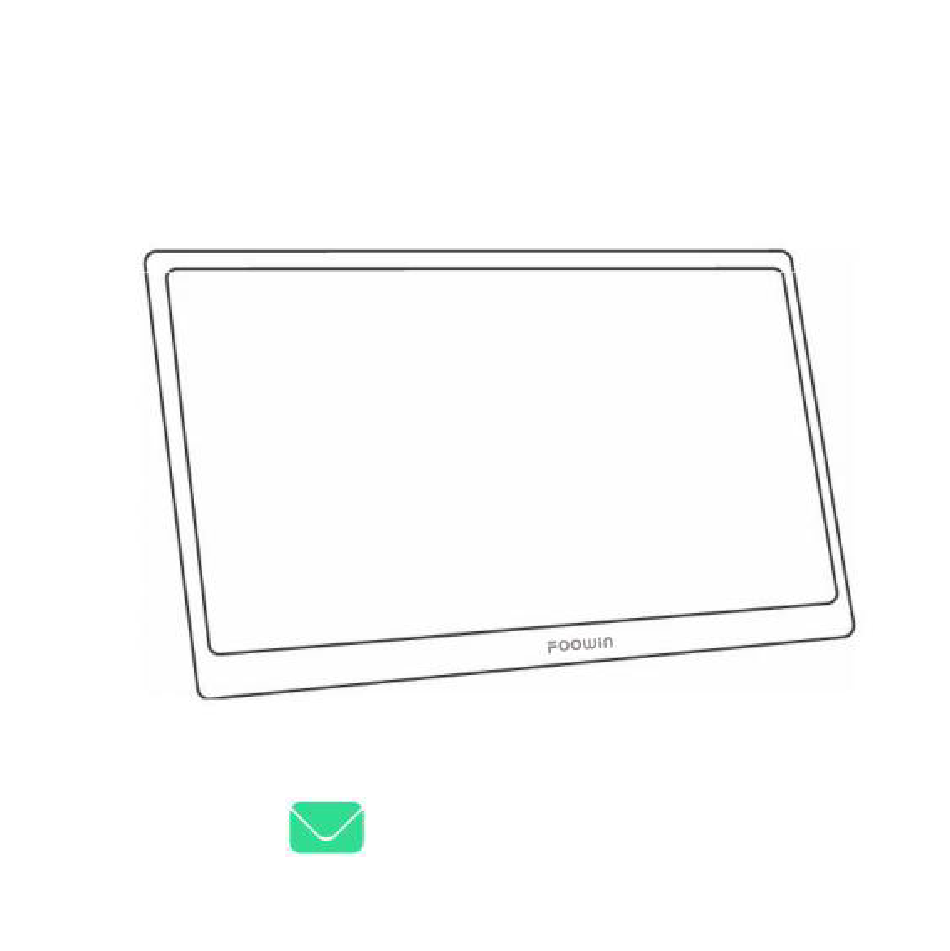

USER GUIDE
Model ：VP525
Tech Support:
support@gkdytech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP525 and is the answer not in the manual?

Questions and answers

Summary of Contents for FOOWIN VP525

  • Page 1 USER GUIDE Model ：VP525 Tech Support: support@gkdytech.com...

  • Page 2: Table Of Contents

    Contents Package Contents Monitor Introduction Equipment Interface Operation Instructions Connect Monitor with Devices Duplicate & Extend Mode Setting Screen Rotate Setting OSD Function Introduction Monitor Standing Positions Specifications Supported Devices & Models Care & Cleaning Notices Warranty Card...

  • Page 3: Package Contents

    Package Contents FOOWIN Portable Monitor Mini HDMI to HDMI Cable ( For data transmission only) Type- C to Type- C Cable ( Full-functioned) Type- C to USB A Cable (Power supply) USB C to USB A Female Cable (Connect keyboard, mouse,etc... )

  • Page 4: Monitor Introduction

    Monitor Introduction Type- C ➊ Brightness Button Volume Button Power/ Return/ Menu ➋ ➌ ➍ ➏ ➐ Type- C Full Function ➑ Headset Hole Mini HDMI Speaker ➎ ➒...

  • Page 5: Equipment Interface Operation Instructions

    Equipment interface operation instructions Press the Brightness Button, then press ➊ to increase the brightness, Brightness Button ➊ press ➋ to reduce the brightness Press the Volume Button, then press ➊ to increase the volume, Volume Button ➋ press ➋ to reduce the volume Power/Return/Menu, in Menu mode, press ➊...

  • Page 6: Connect Monitor With Devices

    Connect Monitor with Devices 1. Connection Condition This monitor does not have a built- in battery. Before connecting the monitor, please make sure it has enough power (5 V/3 A or above) comes in firstly. 1. Connect with external power supply Firstly, connect your monitor to power supply (5 V/3 A or above) to give it enough power.
  • Page 7 5 V/3 A or above be connected. Note: Not all laptops with a Type- C port can work with FOOWIN monitor. Please check the Type- C port of your laptop if it supports audio and video...
  • Page 8 3.PC/ Laptop (With HDMI Port) Laptop Note: HDMI port does not support power transmission. It is a must to connect an extra power supply (5 V/3 A or above) if you use mini HDMI port for connection.
  • Page 9 4.PHONE (With Type-C) External Power Supply Of 5V/3A Or Above When there is no external power supply, the cell phone supplies power to the monitor. ( Energy- saving mode is activated; Brightness is automatically adjusted to 30%) When the external power supply is connected, the monitor charges the mobile phone through the external power supply.
  • Page 10 5.Other Devices Note: Please connect the power supply cable first and then Mini HDMI to HDMI Cable to ensure the smooth transmission of signals.

  • Page 11: Duplicate & Extend Mode Setting

    Duplicate & Extend Mode Setting 1 . Connect your FOOWIN monitor to a power outlet and an available port on your PC. 2 . Right-click the desktop and select either Screen resolution ( Windows 8) or Display settings (Windows 10) .

  • Page 12: Screen Rotate Setting

    Screen Rotate Setting 1 . Connect your FOOWIN monitor to a power outlet and an available port on your PC. 2 . Right- click the desktop and select either Screen resolution ( Windows 8) or Display settings (Windows 10). 3 . Click the Orientation drop- down list, and then select Landscape or Portrait screen.

  • Page 13: Osd Function Introduction

    OSD Function Introduction 1. Press the Power Button to activate the OSD menu 2 . Press the Button (Brightness, Volume, and Power Button) up and down to choose your settings 3. Press Power Key to confirm 4 . Long press Power Button to return to the previous page...
  • Page 14 OSD Setting - Picture Brightness: The adjusting range is from 0 to 100. Contrast: The adjusting range is from 0 to 100. Mode: Standard, Game, Movie, Reading DCR: Select ON or OFF to enable or disable dynamic contrast ratio function. Sharpness: The adjusting range is from 0 to 4.
  • Page 15 OSD Setting - Color Color Temperature: Contains 3 preset color mode(9300, 6500, User) Hue: The adjusting range is from 0 to 100. Saturation: The adjusting range is from 0 to 100. Low Blue Light: The adjusting range is from 0 to 100. Color Gamut: Contains 4 options: Srgb, Adobe, DciP3, Native...
  • Page 16 OSD Setting - Audio Mute: Select ON or OFF to mute. Volume: The adjusting range is from 0 to 100.
  • Page 17 OSD Setting - Other Aspect: Adjust the Aspect to 4:3 or 16:9 Free Sync: Select ON or OFF to use it. Language: English, Dutch, French, Chinese( Simplified), Korean HDR: Select ON or OFF to open HDR mode. Reset: Select RESET to revert all settings to the factory default mode.
  • Page 18 OSD Setting - Input Source Input Source: Contains 2 signal sources Type- C and HDMI.

  • Page 19: Monitor Standing Positions

    Monitor Standing Positions You can stand up the monitor by several positions with the smart cover. Methorb 1 Methorb S...

  • Page 20: Specifications

    Specifications Product Name: FOOWIN Type-C Portable Monitor Net Weight: 660g Visual area: 349.632 (H) *196.668 (V) mm Screen Size: 15.6 inch Panel type: IPS Dimension: 368 * 225 * 9.3 mm Aspect ratio: 16:9 Resolution: 1920*1080 Display color: 16.7M Color temperature: 6500K Visual angle: H: 85°/85°...

  • Page 21: Supported Devices & Models

    Supported Devices & Models 1.Phone Brand Model Mate 10、Mate 10 pro、P20、P20 pro、Mate RS、Mate 20、Mate 20 Pro、Mate 20X、 HUAWEI HUAWEI Mate 20 X (5G)、Mate 20 RS、P30、P30 Pro、HUAWEI Mate 30、HUAWEI Mate 30 Pro、P20 RS Note 10、Magic 2、V20 HONOR ASUS ROG Phone、ROG Phone II Razer Razer Phone S8+、Note 8、S9、S9+、Note 9、S10、S10e、S10、S10+、Galaxy Note10、Galaxy...
  • Page 22 Laptop Brand Model HUAWEI MateBook D、MateBook X、MateBook Xp Pro、MateBook E、MateBook 1 MagicBook HONOR Air12.5/13.3''、Pro15.6'' HONOR Mi Gaming Notebook, Mi Gaming Notebook Pro Deluxe 3、Deluxe 3 pro、Deluxe x series、U4100UN、U5100UQ ASUS Y7000/Y7000P/Y9000K、YOGA6 Pro、ThinkPad x1、ThinkPad P1、Carbon/Yoga、 Lenovo Lenovo MIIX 720-12IKB Omen 4 Pro、EliteBook 1050 G1、EliteBook Folio G1 DELL G3/G5/G7、Inspiron5000/7000、XPS13、XPS15 Chromebook Acer...

  • Page 23: Care & Cleaning

    Care & Cleaning 1 . Cleaning. Turn your monitor off and unplug the cable. Clean the monitor surface with a lint- free, non- abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner. 2 . Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD.

  • Page 24: Notices

    Notices • Before setting up this Type- C Portable Display, carefully read all the documentation that comes with the package. • To prevent fire or shock hazard, never expose this Type- C Portable Display to rain or moisture. • Never try to open this Type- C Portable Display cabinet. •...

  • Page 25: Warranty Card

    Warranty card Model Order ID Purchase Date SHOP Feedback Maintenance record...
