MOBILE BREATHING-AIR
COMPRESSOR
PAS MAC8000
OPERATOR'S HANDBOOK
Draeger Safety UK Ltd
Ullswater Close, Kitty Brewster Industrial Estate,
Blyth, Northumberland, NE24 4RG, UK
o
o
Tel N
: +44 (0) 1670 352891 fax N
: +44 (0) 1670 356266
E-mail: marketing@draeger.ltd.uk
Website:www.draeger.ltd.uk
MAC8000
NOVEMBER 2010
Advertisement
Table of Contents
Summary of Contents for Draeger PAS MAC8000
- Page 1 MOBILE BREATHING-AIR COMPRESSOR PAS MAC8000 OPERATOR’S HANDBOOK Draeger Safety UK Ltd Ullswater Close, Kitty Brewster Industrial Estate, Blyth, Northumberland, NE24 4RG, UK Tel N : +44 (0) 1670 352891 fax N : +44 (0) 1670 356266 E-mail: marketing@draeger.ltd.uk Website:www.draeger.ltd.uk MAC8000...
- Page 2 INTRODUCTION DREAGER provides a range of breathing-air systems which are completely self-contained, fully mobile and specially designed to deliver breathing quality compressed air to operatives wearing air-fed respiratory equipment when working in hazardous atmospheres such as occur in the nuclear, petrochemical, pharmaceutical and other industries.

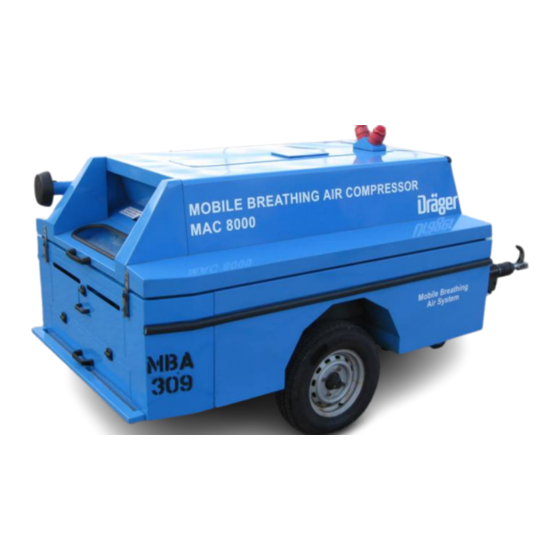

- Page 3 GENERAL ARRANGEMENT MAC8000 ON SITE Front and rear view showing the towing mechanism complete with jockey wheel and handbrake applied. The hinged high-level air intake is shown in the raised operational position. MAC8000 NOVEMBER 2010...
- Page 4 Shown open for service checks. Run engine only with canopy lowered. MAC8000 NOVEMBER 2010...
- Page 5 TRAVELLING MODE Picture shows the canopy, air intake and outlet cover in the lowered position for travelling. MAC8000 NOVEMBER 2010...
-
Page 6: Instrument Panels
INSTRUMENT PANELS AUXILLARY INLET MAC8000 NOVEMBER 2010... - Page 7 OUTLETS MAC8000 NOVEMBER 2010...
-
Page 8: Technical Data
TECHNICAL DATA MAC8000 PORTABLE COMPRESSOR Atlas Copco XAHS37Dd ENGINE Deutz F2M2011 · oil-cooled · 2-cylinder diesel (low oil pressure high oil temperature shutdown protected) COMPRESSOR Atlas Copco - oil injected · rotary screw AFTERCOOLER Outlet temperature within 5°C of ambient FILTRATION Purifies air to breathing quality conforming to BS EN 12021 CHASSIS... -
Page 9: Safety Precautions General
OPERATING INSTRUCTIONS SAFETY PRECAUTIONS GENERAL For specific safety instructions see sections 9 (compressor) and 10 (engine) Run the engine in a well-ventilated area. The machine should be as level as possible in both planes whilst in operation. Operate unit at least 1 metre away from buildings and flammable objects. - Page 10 SITING Never run the engine in an enclosed or confined area. The unit should be operated on reasonably level ground and sited to prevent the re- entrainment of exhaust gases and other toxic atmospheres. Taking account of the wind direction, the likelihood of pollution from the worksite and other local emissions, the compressor should be positioned to avoid ingesting these.
- Page 11 DIN Connector Pressure Gauge Bleed Screw TOWING THE COMPRESSOR Check the towbar, braking system and coupling. Check that wheels are secure, tyres are in good condition and inflated correctly. Connect lighting cable to towing vehicle if applicable. Check correct operation of all lights. Raise the jockey wheel fully and lock.
-
Page 12: Maintenance And Service
MAINTENANCE AND SERVICE (Refer to appropriate sections for specific details on how to carry out the tasks) MAINTENANCE SCHEDULE Maintenance Schedule Daily Initially Yearly Monthly 50 hours Or every Or every 500 Or every after initial 1,000 hours 2,000 start-up hours hours Service pack... -
Page 13: Service Spares
Maintenance Schedule Daily Initially 6-Monthly Yearly 50 hours Or every Or every Or every after initial 1,000 500 hours 2,000 start-up hours hours Breathing-air filtration Pre-filter element Replace Coalescing filter element Replace Activated carbon filter Replace Replace element – main Activated carbon filter Check Check... - Page 14 OILS Engine: 30°C to 40°C PAROIL 15W40 30°C to -5°C PAROIL 15W40 -5°C to -20°C PAROIL 5W30 Compressor: 30°C to 40°C PAROIL S 30°C to -5°C PAROIL M/S -5°C to -20°C PAROIL S For detailed maintenance procedures consult the manufacturers’ manuals 9 section 4.3 and 10 section 4.1.
-
Page 15: Start-Up Procedure
START UP PROCEDURE Carry out pre-start checks (see 4.3) Fit wind direction indicator and raise air intake Raise canopy and ensure the safety support strut is in position Push Circuit Breaker button (F1) once to allow starting ... -
Page 16: Shutdown Procedure
SHUTDOWN PROCEDURE Ensure the machine is not supporting life Disconnect all outlet hoses Raise canopy and ensure safety support strut is in position Turn off all HP cylinders Stop engine by turning the ignition switch anticlockwise to ‘O’ stop position (HP alarm will sound) ... - Page 17 WARNINGS IF A WARNING ALARM SOUNDS, IMMEDIATELY EVACUATE ALL BREATHING APPARATUS WEARERS TO A SAFE AREA AN AUDIBLE AND VISUAL ALARM SHOWS: Low compressor pressure Malfunction of compressor or engine Excessive demand Restricted air intake Low cylinder pressure Residual pressure remains after ignition is turned off FOR FURTHER INSTRUCTIONS AND DETAILED SERVICING METHODS CONSULT OPERATOR’S HANDBOOK.
- Page 18 If high engine temperature, low oil pressure or high compressor oil temperatures are detected, the primary supply is shut down because the engine is stopped and the reserve automatically brought online. 8 x 9 litre @ 200 bar pressure cylinders MAC8000 NOVEMBER 2010...
- Page 19 DIESEL ENGINE 10.1 ENGINE INTAKE FILTER Intake filter assembly Secondary filter element FIL0449 Main filter element FIL0059 MAC8000 NOVEMBER 2010...
- Page 20 12.0 FILTERS A76 XA High Efficiency Filter assembly A76 X1 Fine Filter assembly E711 XA Element E711 X1 Element kit Change at 2,000 hours/yearly Change at 2,000 hours/yearly A76 AC Activated Carbon A77 HC Hopcolite Filter Filter body - main E811HC Element E711 AC Element Change at 2,000 hours/yearly...
