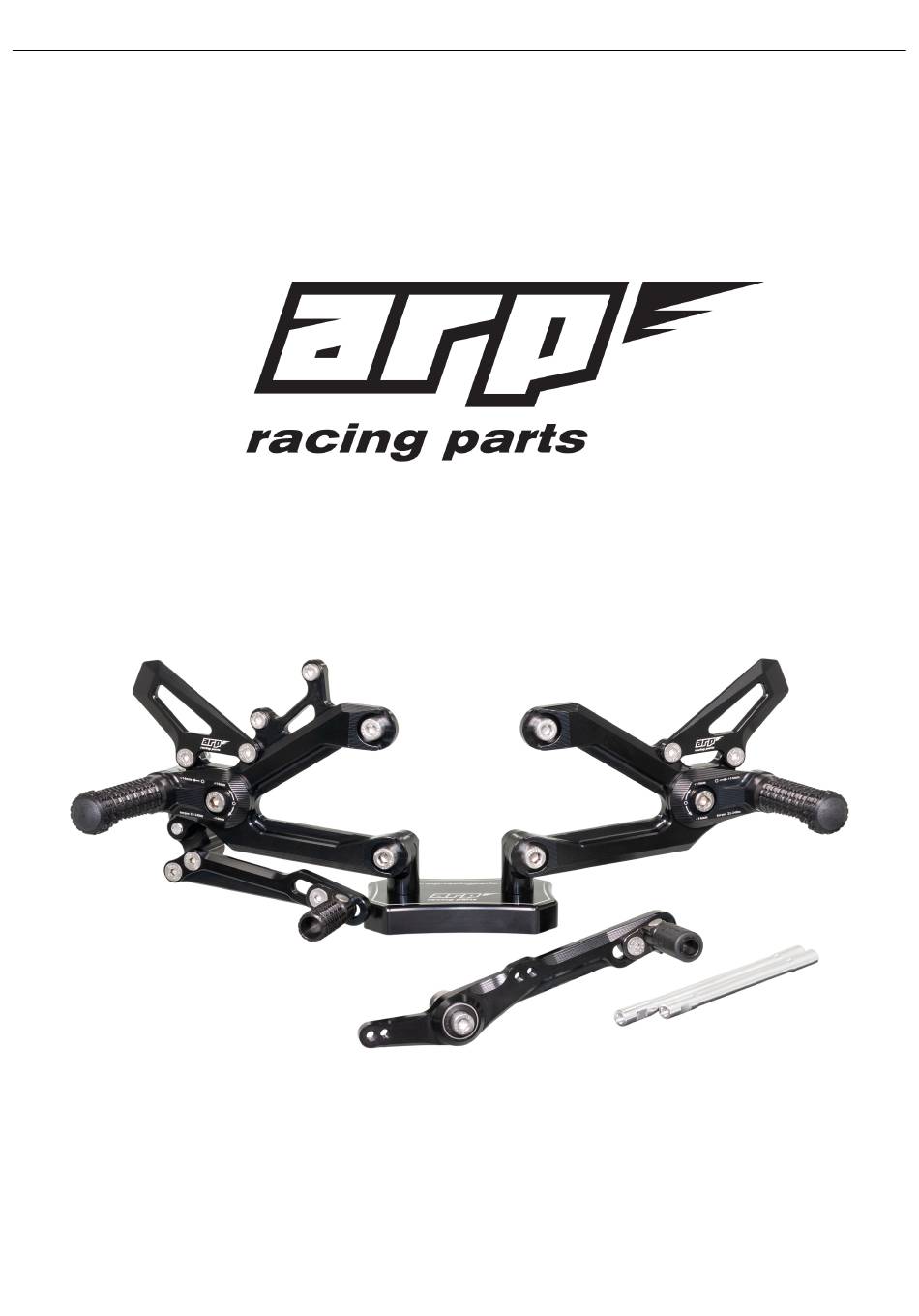

- Page 1 RXH09B User manual Rear set for Honda/CBR1000RR/20-21 Rev 02 December 13, 2021...
- Page 2 RXH09B This set is pre-assembled. Remove the factory set and mount the ARP racing parts rear set in place of the original set. We recommend torquing the M8 screws to 20-22 Nm and the M6 screws to Nm. Make sure you tighten all of the parts after adjusting.
- Page 3 Position Name SKU (ordering number) Qty. Rear set base - right side RXH0901 Rear set base - left side RXH0902 Brake lever hinge (bearings incl.) RXH0903 Brake lever RXD0603 Shift lever (bearings incl.) RXH0904 Shift lever extender RXH0906 Adjustable footpeg holder - right side RXU9101R Adjustable footpeg holder - left side RXU9101L...
- Page 4 Approved by: Thanks for choosing ARP racing parts. Since delivering parts in perfect condition is our utmost priority, we are forced to add paper and plastic into packaging. We would, therefore, like to ask you to sort these materials into appropriate recycling containers.
- Page 5 ˆ Remove the OEM shift lever and undo the nut shown bellow ˆ Replace the nut with ARP racing parts shift lever extender (6) and torque it to 84 Nm ˆ Install the ARP racing parts shift lever (5) and torque the hex head screw (26) to 25 Nm GP reverse...
