LEAB 1051009023 Quick Start Manual

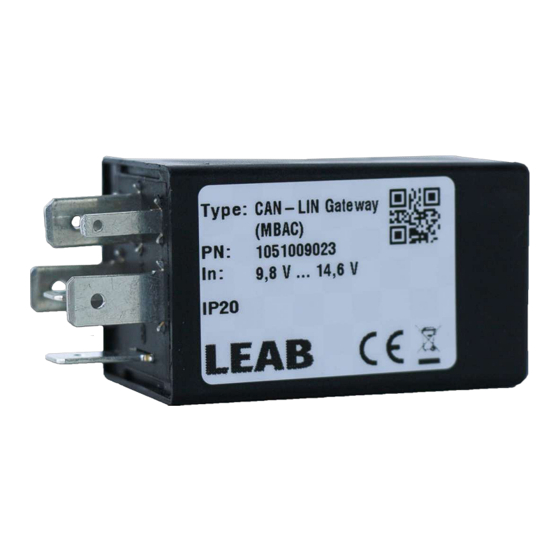

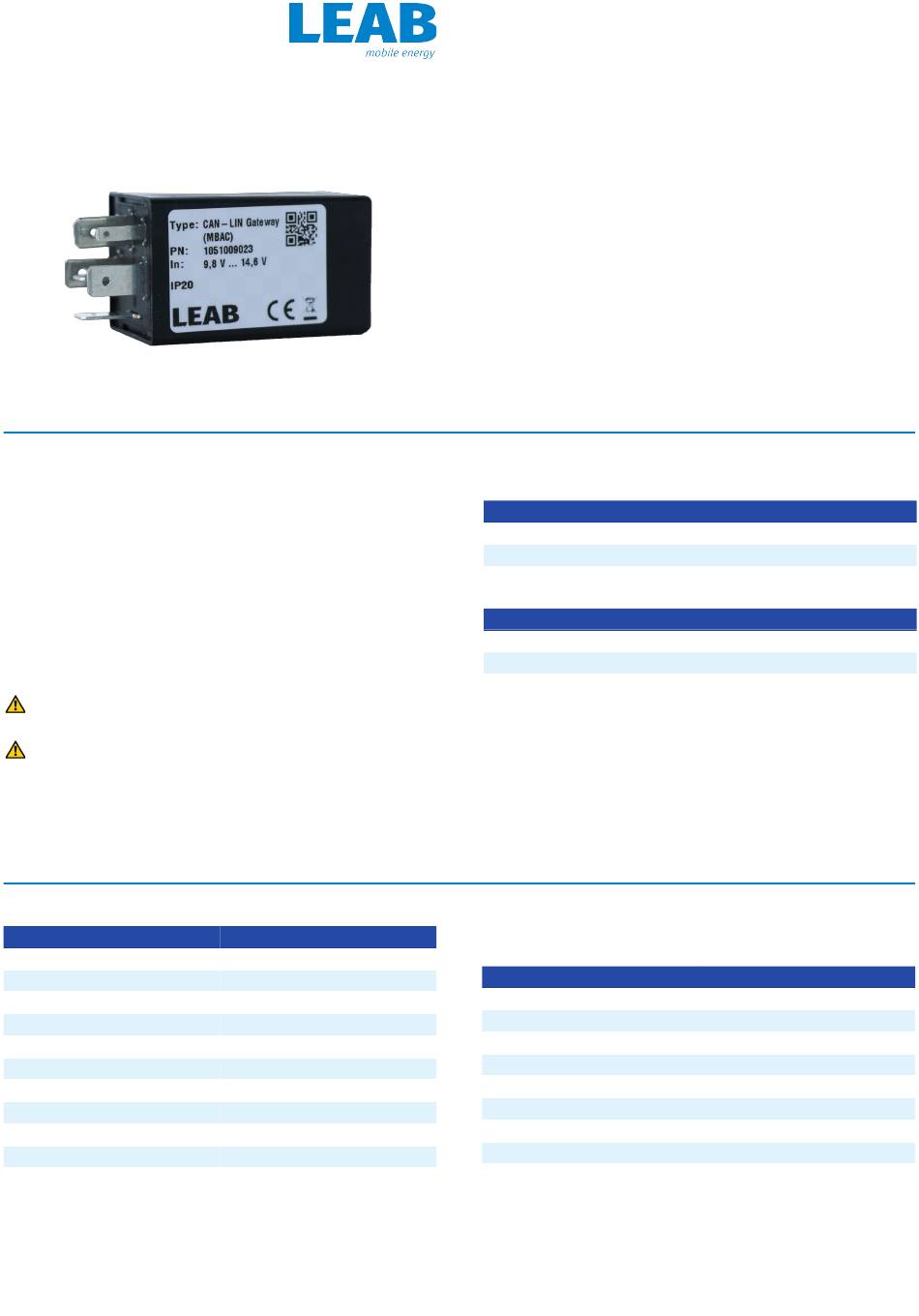

CAN-LIN Gateway
Quick start guide
V 2
Safety
This Quick Start Guide is intended to support safe handling of the
CAN-LIN Gateway.
The CAN-LIN Gateway allows the LPS II to be integrated into
the Mercedes-Benz Advanced Control (MBAC) and therefore
the most important data of the LPS II to be shown in the MBUX
multimedia display, on additional displays in the motorhome
body or the MBAC app.
In addition to the information on current and voltage for solar,
on-board network and external feed, the charging status of the
LPS II is also shown on the original vehicle display, along with
how to switch the 230 V inverter of the LPS II on and off.
Observe the safety instructions:
WARNING! Risk of injury from electric shock. Disconnect the
vehicle negative cable prior to Installation.
WARNING! Fire hazard due to short circuit: Secure your
vehicle with an additional fuse installed near the unit.
NOTE! Penetrating water can damage the unit: Prevent water from
entering the housing during cleaning.
NOTE! The unit is designed for interior use only. Do not mount the
unit outside the vehicle.
Technical specifications
Part number
Voltage range
Temperature range
Power consumption
Housing
BUS system connections
IP rating
Protection class
Weight
Dimensions (L x W x H)
CAN-LIN Gateway
3001002027
9.8 V ... 14.6 V DC:
-20 °C ... +75 °C
18 mA
7-pin relay socket housing
CAN bus/LIN bus
IP20
III
30 g
60 mm x 30 mm x 30 mm
It is prohibited to copy, duplicate, translate or otherwise
pass on the content of this document to third parties without
the express written permission of LEAB.
We make energy mobile.
LEAB Automotive GmbH
Thorshammer 6
24866 Busdorf
Tel: +49(0) 4621 9 78 60-0
Fax: +49 (0) 4621 9 78 60-260
info@leab.eu
NOTE! Installation must only be carried out by qualified electricians.
Package contents
No.
1x
1x
Accessories (optional)
CAN-LIN Gateway connection cable to LPS II
Part number
Cable length:
Connections:
LIN bus parameters
The following commands and information can be transmitted or
controlled via the LIN bus system:
Information
230 V AC input current
12 V DC input current
12 V DC output current
Solar power
Solar voltage
Battery temperature
Battery power
SoC (state of charge)
Output power in %
Name
CAN-LIN Gateway
Quick start guide
1601001136
5 m
open cable end on M12 connector
Command
Switch 230 V on/off
