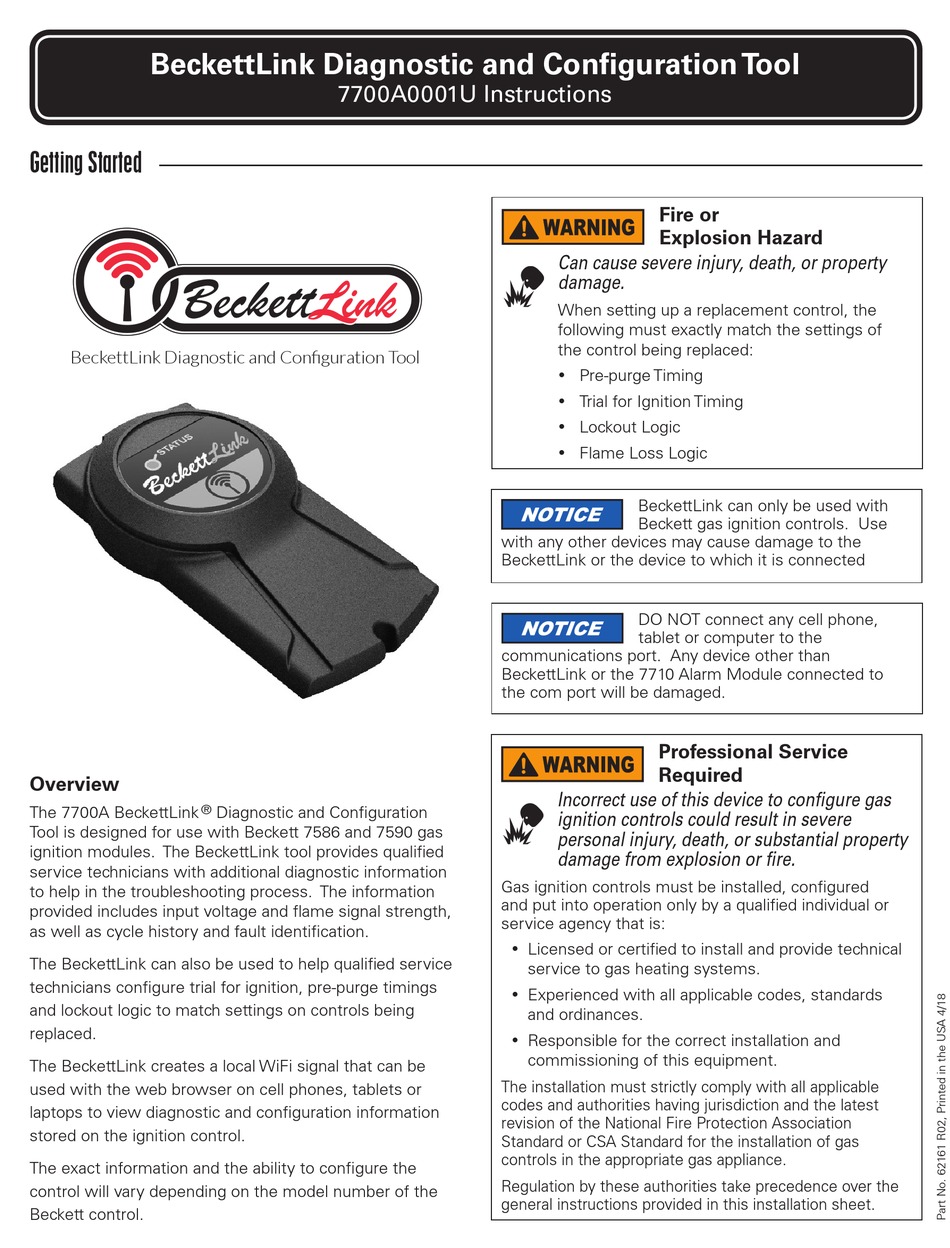

BeckettLink Diagnostic and Configuration Tool
Getting Started
BeckettLink Diagnostic and Configuration Tool
Overview
The 7700A BeckettLink
®
Tool is designed for use with Beckett 7586 and 7590 gas
ignition modules. The BeckettLink tool provides qualified
service technicians with additional diagnostic information
to help in the troubleshooting process. The information
provided includes input voltage and flame signal strength,
as well as cycle history and fault identification.
The BeckettLink can also be used to help qualified service
technicians configure trial for ignition, pre-purge timings
and lockout logic to match settings on controls being
replaced.
The BeckettLink creates a local WiFi signal that can be
used with the web browser on cell phones, tablets or
laptops to view diagnostic and configuration information
stored on the ignition control.
The exact information and the ability to configure the
control will vary depending on the model number of the
Beckett control.
7700A0001U Instructions
Diagnostic and Configuration
Fire or
Explosion Hazard
Can cause severe injury, death, or property
damage.
When setting up a replacement control, the
following must exactly match the settings of
the control being replaced:
y Pre-purge Timing
y Trial for Ignition Timing
y Lockout Logic
y Flame Loss Logic
BeckettLink can only be used with
Beckett gas ignition controls. Use
with any other devices may cause damage to the
BeckettLink or the device to which it is connected
DO NOT connect any cell phone,
tablet or computer to the
communications port. Any device other than
BeckettLink or the 7710 Alarm Module connected to
the com port will be damaged.
Professional Service
Required
Incorrect use of this device to configure gas
ignition controls could result in severe
personal injury, death, or substantial property
damage from explosion or fire.
Gas ignition controls must be installed, configured
and put into operation only by a qualified individual or
service agency that is:
y Licensed or certified to install and provide technical
service to gas heating systems.
y Experienced with all applicable codes, standards
and ordinances.
y Responsible for the correct installation and
commissioning of this equipment.
The installation must strictly comply with all applicable
codes and authorities having jurisdiction and the latest
revision of the National Fire Protection Association
Standard or CSA Standard for the installation of gas
controls in the appropriate gas appliance.
Regulation by these authorities take precedence over the
general instructions provided in this installation sheet.
Advertisement
Summary of Contents for Beckett BeckettLink 7700A
- Page 1 The 7700A BeckettLink ® Diagnostic and Configuration ignition controls could result in severe Tool is designed for use with Beckett 7586 and 7590 gas personal injury, death, or substantial property ignition modules. The BeckettLink tool provides qualified damage from explosion or fire.
- Page 2 Operating Instructions Setup STEP „ Plug the supplied cable into the BeckettLink. „ Plug the other end into the Beckett gas ignition control. 7586 7590 Powering Up STEP „ The ignition control must be powered for BeckettLink to work. Set thermostat or controller to call for heat.
- Page 3 Settings must match exactly the settings on the control replaced. Specific programming instructions are included with replacement Beckett ignition controls. Configuration is locked after 4 hours of operation. Factory Provides basic information on the control factory Navigate through pages by touching headings at configuration.
- Page 4 —BeckettLink can only link to one phone or tablet at a time. —Beckett gas ignition controls can only have the timings and sequences configured during the first 4 hours of burner operation. After 4 hours of operation, the control configuration is locked. Some controls will have the configuration locked at the factory to meet specific application requirements.
