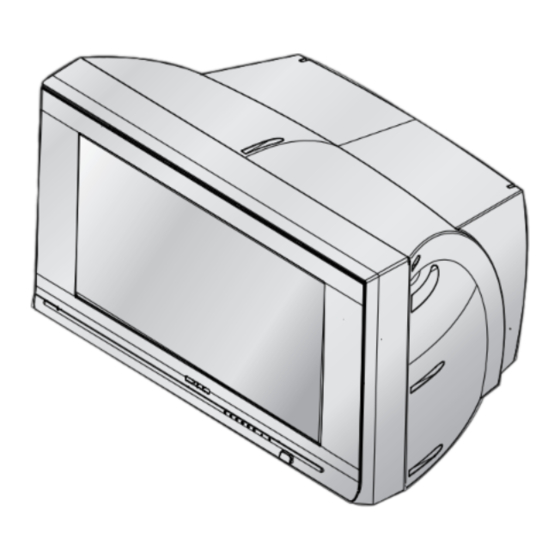

Samsung TXN2668WHFXXAA Service Manual

Color television receiver
Hide thumbs

Advertisement

Quick Links

Download this manual
COLOR TELEVISION RECEIVER
COLOR TELEVISION RECEIVER
Chassis :
K55A(N)_Rev.2
Model :
TXN2668WHFXXAA
1.
2.
3.
4.
5.
6.
7.
8.
9.
CONTENTS
Precautions
Reference Information
Specifications
Alignment and Adjustments
Exploded Views and Parts List
Electrical Parts List
Troubleshooting
Block Diagrams
Schematic Diagrams
