- Page 1 ASSET BIPOLAR ATTENUATOR & DC SOURCE User Manual...
- Page 2 INSTALLATION Asset needs a power supply capable of providing 50mA on each of the +12V and -12V rails, and 10HP of free space in your case. We strongly recommend you to check the current consumption of your system on the ModularGrid website and your power supply capabilities before plugging in the module.
- Page 3 Asset has been designed with compact systems in mind. Is small enough to not take much space on the rack but also powerful, providing six channels with individual controls over each circuit parameter.

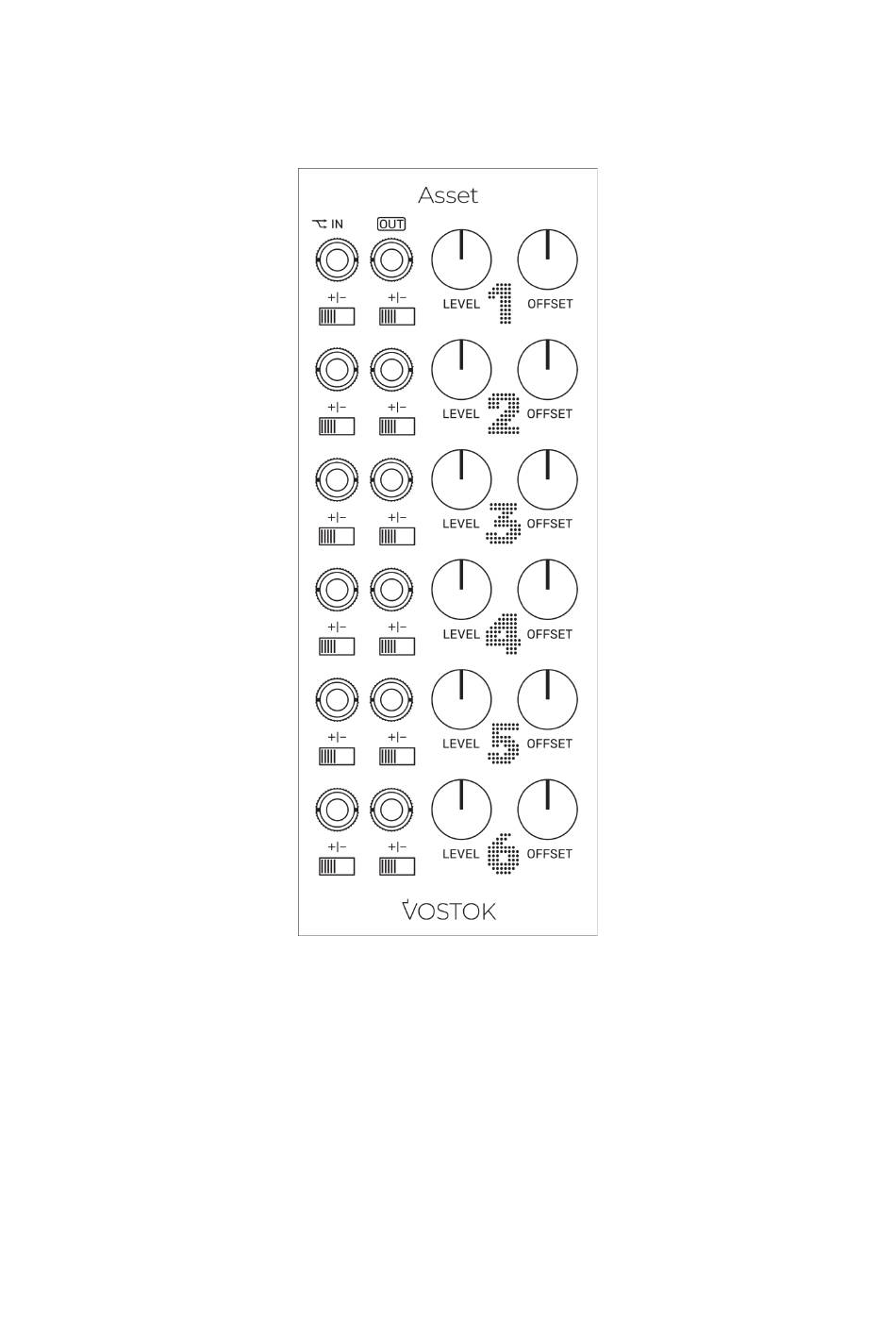

- Page 4 GETTING STARTED Asset is laid out in six identical channels of signal processing. Each channel can attenuate, invert and shift the amplitude of any signal. As the inputs are connected with an internal daisy chain circuit, different versions of the same signal can be created easily.
- Page 5 Each channel on Asset counts with a dedicated DC Offset generator that sums up to 10 and -10V to the output. Turning the Offset pot clockwise will gradually inject DC Offset into the output.
- Page 6 Daisy-Chain Operation By default, Asset sends the signal present at each input to the next one. To break the chain, patch a cable on the desired input. This implementation allows the creation of different versions of the same modulation signal.
