Summary of Contents for MerCruiser SCAN TOOL

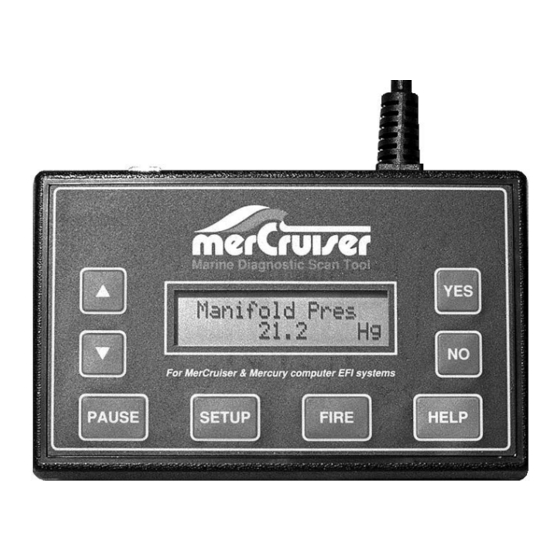

- Page 1 MerCruiser SCAN TOOL The fastest and easiest way to troubleshoot Marine Electronic Fuel Injection Systems USER’S GUIDE Version 5 Rinda Technologies, Inc.
- Page 3 MerCruiser SCAN TOOL USER’S GUIDE Rinda Technologies Inc. 4563 N. Elston Ave. Chicago, IL 60630 USA Tel: (773) 736-6633 Fax: (773) 736-2950 Web: www.rinda.com Serial Number: ________________________________...
- Page 4 Rinda Technologies, Inc. The software components in the scan tool are believed to be accurate. Rinda Technologies, Inc. does not warrant that the operation of the software will be uninterrupted or error free. Further, Rinda Technologies, Inc.
-
Page 5: Table Of Contents
Support Information..... 66 Scan Tool Adapters ..... 67... -
Page 6: Safety Precautions
This scan tool is a sensitive electronic instrument. Handle the tool with extreme care. · DO NOT subject the scan tool to excessive water spray or expose it to rain. The scan tool is water resistant but not water proof. ·... -
Page 7: Overview
This variation is due to the way that a particular ECM is programmed at the factory. Some ECMs may have certain features enabled or disabled which will cause the MerCruiser scan tool to automatically adjust its menu and data display choices. -
Page 8: Scan Tool Key Functions
Used to choose or activate menu options Exits the current menu or test mode Stops information that is scrolling across the display Displays scan tool setup options Used to activate outputs or pulse injectors depending upon test mode Provides information on menu selections or engine parameters... -
Page 9: Setup & Operation
Setup and Operation Setup The setup function is accessible while in any of the scan tool’s menus or while in the data scanning mode. Pressing the SETUP key causes the scanner to suspend its current mode of operation and enter a special setup menu. The setup menu contains items that allow you to tailor various functions of the scan tool. -
Page 10: Function Flowchart
Function Flowchart Page 6... - Page 11 Function Flowchart Page 7...
- Page 12 Function Flowchart continued from page 6 MerCruiser 2001 - Up PCM-555 and ECM-555 Page 8...
-
Page 13: Volvo Penta Egc Efi
Function Flowchart continued from page 6 Volvo Penta EGC Pleasurecraft / Crusader ECM-07 & Up Indmar (GCP ECM) Page 9... - Page 14 Function Flowchart MerCruiser Visteon ECM continued from page 6 (catalyst equipped engines) Generic OBD-M systems Page 10...
-
Page 15: Mercruiser 7.3L D-Tronic Diesel
Engines Supported by the Scan Tool Engine / EFI System Support The MerCruiser Scan Tool supports a variety of electronic engine control systems as summarized below. Please refer to the appropriate section of this manual based on the type of engine control system being diagnosed. - Page 16 There are, at the time of this writing, five base GM marine system types that are supported by the MerCruiser scan tool. Some of the system types shown below also have revisions that were released after their initial introductions which incorporated refinements.
- Page 17 Note: Some manufacturers place a protective cover over the GM diagnostic connector which must be removed in order to connect the scan tool to the engine. Be sure to replace the connector cover, if used, in order to protect the diagnostic connector’s electrical terminals from water and corrosion.
- Page 18 If the engine will not start, simply leave the ignition switch ON and proceed. 4) After the scan tool displays its initial opening messages, use the s and t keys to select the “Marine EFI” operating mode, then press the YES key to select it.
- Page 19 If the engine will not start, simply leave the ignition switch ON and proceed. 4) After the scan tool displays its initial opening messages, use the s and t keys to select the “Marine EFI” operating mode, then press the YES key to select it.
- Page 20 GM Marine EFI Obtaining Data After selecting the “Marine EFI” function the scan tool will attempt to communicate with the engine’s fuel injection computer and automatically identify it. After an identification is made, you will be presented with several menu choices. To obtain diagnostic data and system trouble codes, select the “ECM Data”...
