Use provided #10 screws in
3.
length 1" or 3/4" depending on
cabinet thickness to attach
pedal. (FIG.5)

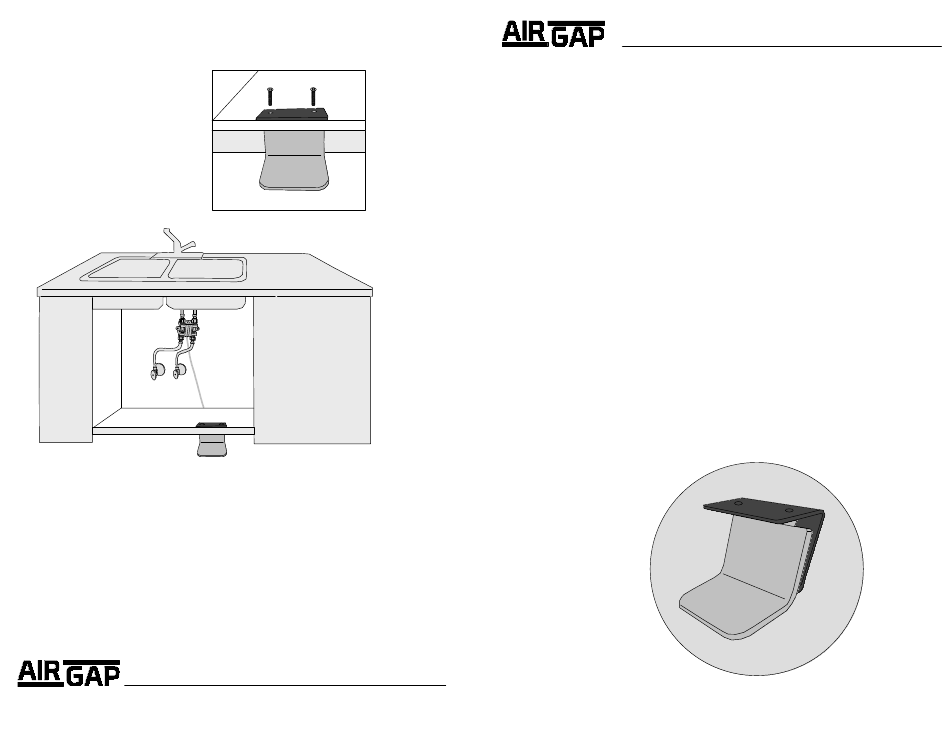

FIG. 5
Press the pedal on depressed position, open the faucet, and adjust
4.
it to the desired water temperature and flow rate.
As long as the pedal is depressed, water will flow from the faucet.
When the pedal is released, the water flow stops.
CAUTION:
During installation, avoid bending valve actuating. Any bending needs to be
smooth.
500 Jefferson Street, Placentia, California 92870 USA • 949-955-3928 • Email: orders@airgap.com
Copyright 2018 AIR GAP INTERNATIONAL
AG250-203
Model:
TAP-A-FLOW™
KITCHEN /BATHROOM
PEDAL
STAINLESS STEEL FINISH
Part No.
AG250-203
Doc. # 400-0789-001
Placentia, California
