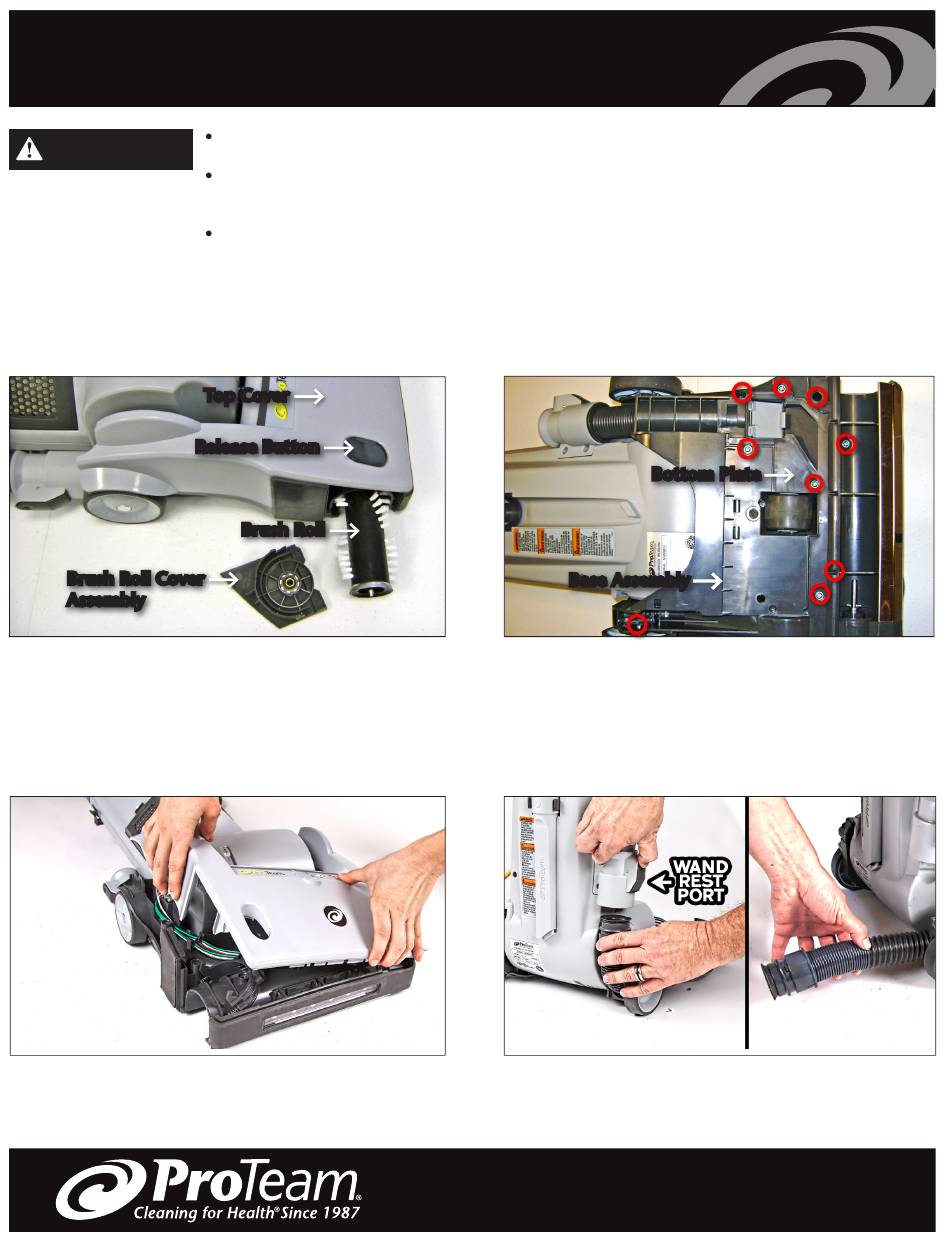

105162/105720 Motor Replacement
ProGen 12 Base Assembly Replacement Instructions
WARNING
Tools needed: Phillips Screwdriver
Time needed: Total time to disassemble & reassemble with the new base should be 45 minutes or less.
Use caution if using a powered screw driver, to avoid stripping screws and damaging parts.
Note: Take care to observe the 3 types of screws used in this repair, and to re-use them in the proper place.
Brush Roll Cover
Assembly
Press and hold the Release Button to remove the Brush Roll
Cover Assembly. Turn Brush Roll 1/4 turn clockwise and
Turn the machine right side up to remove the Top Cover by
lifting up on the side opposite the foot pedal.
Carefully follow each step of these instructions to replace the base assembly. If you miss a step, you will not
complete this repair properly.
ONLY an experienced electrical technician should implement this repair. Be aware that static discharge can
damage circuit boards. If you do not understand the special requirements for working with circuit boards,
such as defined in J-STD-001, do not attempt this repair.
Unplug vacuum before performing repair.
Step 1
Top Cover
Release Button
Brush Roll
remove it.
Step 3
Bottom Plate
Base Assembly
Remove the 9 screws as indicated that are securing the Base
Assembly. Remove the the Bottom Plate.
Depress the button at the bottom of the Wand Rest Port
and disconnect the Power Head Hose Assembly by pulling it
straight out from the Base Assembly, and set aside.
