Medva MAG-NET 800S Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

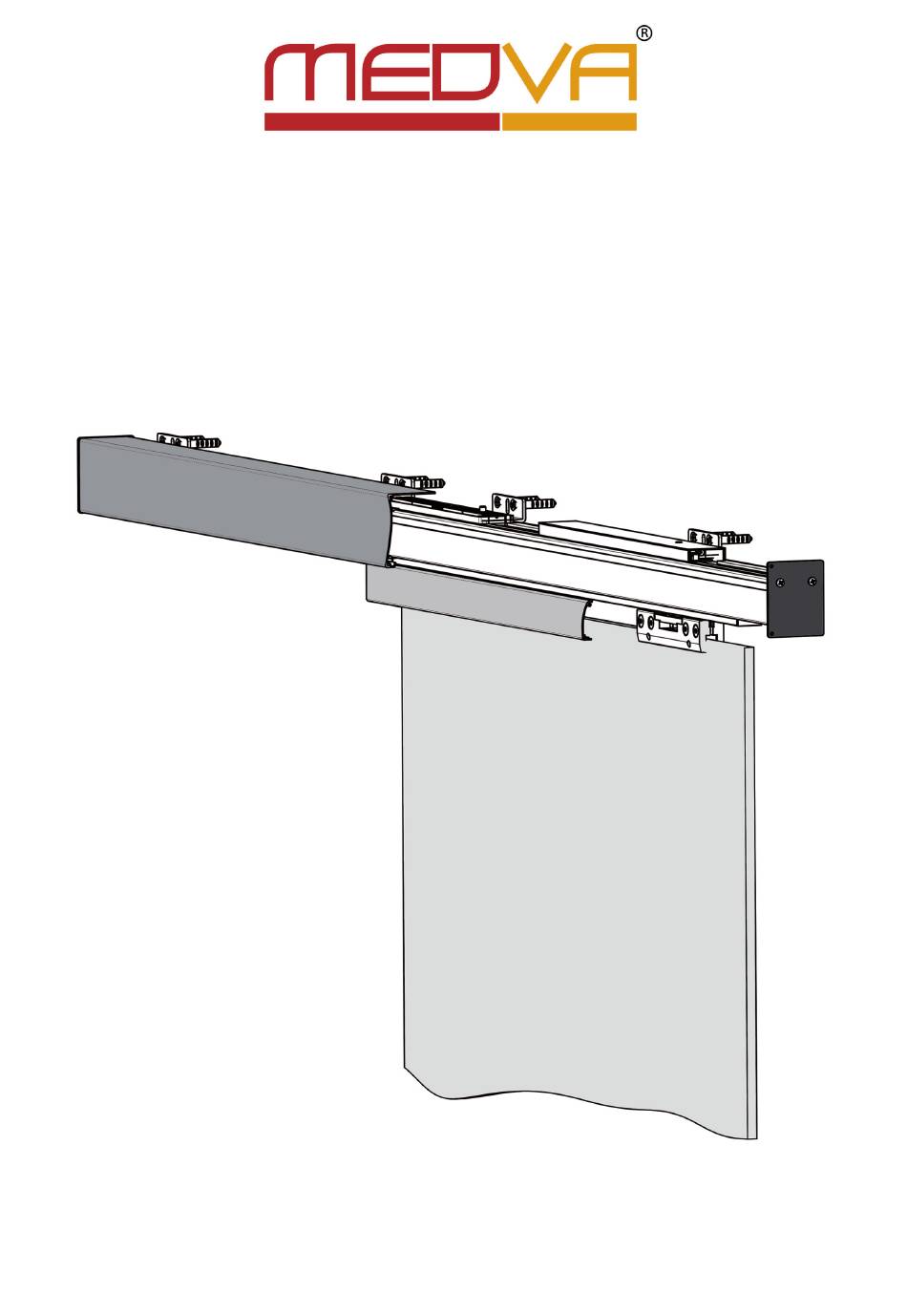

INSTRUCTION MANUAL
S
MAG·NET 800S-1000S-1300
1
V2-05/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAG-NET 800S and is the answer not in the manual?

Questions and answers

Summary of Contents for Medva MAG-NET 800S

  • Page 1 INSTRUCTION MANUAL MAG·NET 800S-1000S-1300 V2-05/19...
  • Page 2 COMPONENTS AND GENERAL MEASUREMENTS COMPONENTS AND GENERAL MEASUREMENTS V2 11/17 1- Front cover 2- Clamp cover 3- Mounting brackets 4- Glass door 5- Operator carriage 6- Clamp 7- Wall MAG·NET800 MAG·NET800 = 1711mm MAG·NET1000 MAG·NET1000 = 2111mm MAG·NET1300 MAG·NET1300 = 2711mm MAG·NET800 MAG·NET800 = 797mm MAG·NET1000...
  • Page 3 ROOF ATTACHMENT CALCULATION ROOF ATTACHMENT CALCULATION WOODEN DOOR GLASS DOOR CLAMPS Door- oor distance 8 to12 mm Glass door height. Door height(J)= R-(105+F) Ceiling-door constant. Carriage-clamp distance. Cover to drill hole distance. Ceiling-clamp cover total height. Ceiling- oor distance. Glass width. Glass to cover distance.

  • Page 4: Roof Installation

    ROOF INSTALLATION...
  • Page 5 BEAM PROFILE POSITION CALCULATION BEAM POSITION PROFILE CALCULATION WOODEN DOOR GLASS DOOR CLAMPS Door- oor distance 8 to 12 mm. Door height. Constant beam pro le-door. Clamp height. Cover height. Carriage-clamp distance. BEAM PROFILE POSITION (R) = F+J+35 Cover width. Cover-clamp cover total height.
  • Page 6 WALL ATTACHMENT CALCULATION WALL ATTACHMENT CALCULATION WOODEN DOOR GLASS DOOR CLAMPS Door- oor distance 8 to 12 mm. J J - Door height. Constant beam pro le-door. Clamp height. Cover height. DRILL HOLE POSITION (R) = F+J+100 Carriage-clamp distance. Cover width. DOOR ACCORDING TO DRILL HOLE (J) = R-(F+100) Cover-clamp cover total height.
  • Page 7 ATTACHMENT CALCULATION...

  • Page 8: Automatic Adjustment

    START OPERATION 1. Before connecting the power, verify manually that the door slides without obstacles or friction. The limit switches are always adjusted with the mechanical limit switches of the operator, never with the door. 2. Connect the 24-Vdc output of the power supply to the DC input of the electronic control box. 3.

  • Page 9: Operating Mode

    a. 1 LED flash → low-weight panel (< 30 kg). b. 2 LED flashes → low-to-medium-weight panel (> 30 kg and < 50 kg). c. 3 LED flashes → medium-to-high-weight panel (> 50 kg and < 70 kg). d. 4 LED flashes → high-weight panel (> 70 kg and < 90 kg). **If the weight detected is over 90 kg, the door will become blocked.

  • Page 10: Connection Examples

    CONNECTION EXAMPLES Combined detector connection PRIMETEC Touchless switch connection CLEANSWITCH Power - White Power + COM relay Green 11/21 NC relay Gray NO relay Blue 12/22...
  • Page 11 EN 60335-2-103 Aparatos electrodomésticos y análogos. Seguridad. Parte 2-103: Requisitos particulares para accionadores de portones, puertas y ventanas. Certificación de MEDVA Mecanismos del Vallés, S.L.; Parte de puertas automáticas: EN 16005 Puertas automáticas peatonales. Seguridad de uso. Requisitos y métodos de ensayo.
  • Page 12 ® MEDVA Mecanismos del Vallés, S.L. +34 93 588 50 37 C/Natación, 26-28, nave 5 +34 93 588 35 03 Polígono Industrial Can Roses info@medva.es www.medva.es 08191 RUBÍ (Barcelona) - Spain...

This manual is also suitable for:

Mag-net 1000sMag-net 1300s
