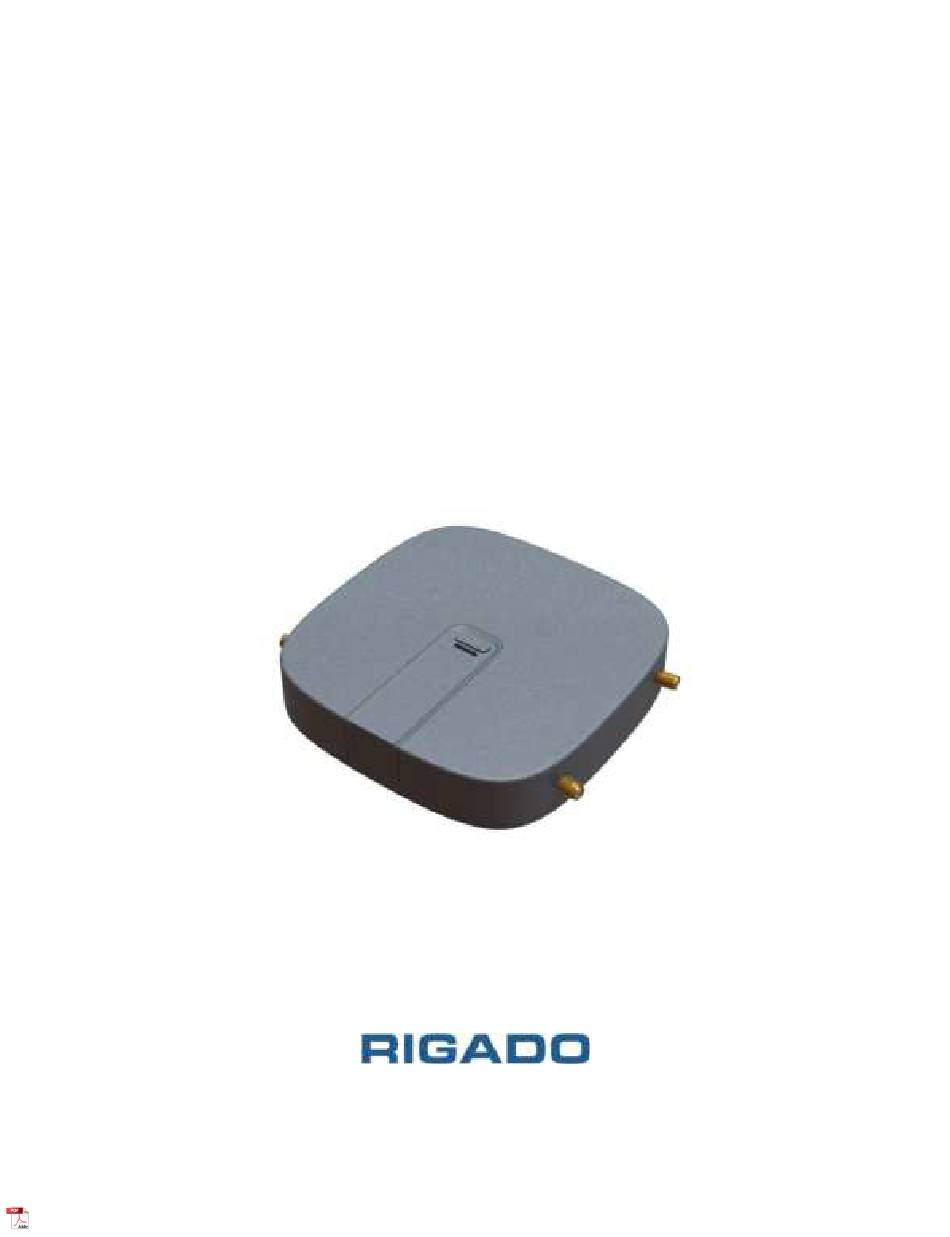

- Page 1 RadBeacon Gateway User Manual...
-
Page 2: Table Of Contents
RBG-1000C User Manual v0.1 - DRAFT Contents Introduction ............................... 2 Gateway Hardware ............................. 3 Specifications ..............................3 Electrical Specifications ............................. 4 Interfaces ................................5 Mechanical Informa tion ..........................7 RBG-1000C Dimensions ............................. 7 Installation ..............................8 Equipment ................................. 8 Mounting Tools ..............................9 Mounting Instructions ............................ -
Page 3: Introduction
RBG-1000C User Manual v0.1 - DRAFT Introduction RadBeacon Gateways are part of Rigado’s connectivity solutions that offer powerful and cost-effective edge network infrastructure for large-scale, low-power wireless deployments. RadBeacon gateways provide a multi-radio platform for Bluetooth based location technologies. Revision History... -
Page 4: Gateway Hardware
RBG-1000C User Manual v0.1 - DRAFT 1 Gateway Hardware 1.1 Specifications Processor i.MX6UL (G3) 528MHz, 32bit ARM® Cortex™-A7 Memory Memory (Volatile) 128 MB DDR3L SDRAM @ 400MHz, x16 Memory (Bulk Storage) 64MB QSPI NOR Flash (512Mbit) Bluetooth Silicon Labs EFR32BG22 Bluetooth Version 5 (Bluetooth Low Energy) LE Connections... -
Page 5: Electrical Specifications
RBG-1000C User Manual v0.1 - DRAFT 1.2 Electrical Specifications 1.2.1 Operating Conditions Symbol Parameter Min. Typ. Max. Unit Operating supply voltage at barrel jack Operating supply voltage at Ethernet connector (PoE) Operating ambient temperature °C Extended operating temperature range °C 1.2.2 USB Connector Power Symbol Parameter... -
Page 6: Interfaces
Interface features are described throughout this section, including power and data connectivity, and button and LED location and behavior. Figure 1 – RadBeacon Gateway – Back View 1.3.1 Ethernet with Power over Ethernet support The Gateway is equipped with a single 10/100 Base-T Ethernet connector. For configurations supporting PoE (802.3af), the Gateway will operate when powered by either a PoE switch (end-... - Page 7 RBG-1000C User Manual v0.1 - DRAFT Figure 2 – RadBeacon Gateway – Top and Bottom View 1.3.5 Front Button A front facing button is located on the face of the Gateway. This button is not enabled on the default Gateway configuration.
-
Page 8: Mechanical Informa Tion
RBG-1000C User Manual v0.1 - DRAFT 2 Mechanical Informa tion 2.1 RBG-1000C Dimensions... -
Page 9: Installation
RBG-1000C User Manual v0.1 - DRAFT 3 Installation 3.1 Equipment Each RadBeacon Gateway Box includes the following equipment. 1 x RadBeacon Gateway 1 x Ceiling Mount Kit (optional): o 1 x mounting bracket 1 x ceiling backer plate... -
Page 10: Mounting Tools
Drywall saw or keyhole saw for 1" cable pass-through hole 3.3 Mounting Instructions Rigado recommends mounting the Gateway on a wall or ceiling, at least 6ft (2m) off the ground. If mounting on a wall, position the unit so that the connectors (USB, Ethernet, etc.) are facing down. This will ensure the mounting bracket attachment mechanism is secure against incidental removal. - Page 11 RBG-1000C User Manual v0.1 - DRAFT Once the mounting bracket is installed, line up the four hooks of the mounting bracket with the corresponding holes on the back of the Gateway and press the two together. To lock in place, slide the Gateway over towards the cabling hole until it clicks into place.
-
Page 12: Hole Drilling Template
RBG-1000C User Manual v0.1 - DRAFT 3.4 Hole Drilling Template This template is at scale and can be printed for use. -
Page 13: Gateway Setup
RBG-1000C User Manual v0.1 - DRAFT 4 Gateway Setup Before the Gateway is permanently installed, refer to the mounted side of the enclosure to record the unit Serial Number (1) or scan the 2D barcode (2), as shown below. -
Page 14: Regulatory Information
RBG-1000C User Manual v0.1 - DRAFT 5 Regulatory Information 5.1 Authorized Countries and Territories Each of the specific RadBeacon Gateway models are authorized for use in the following countries: Region RBG-1000B RBG-1000C United States Planned Canada Planned CE Certification (EU Region) - Page 15 RBG-1000C User Manual v0.1 - DRAFT Slovenia Planned Spain Planned Sweden Planned Switzerland Planned Turks and Caicos Planned Australia Planned Brazil China Costa Rica India Israel Japan Malaysia New Zealand Planned Nigeria Philippines Qatar Singapore South Africa Taiwan Thailand Turkey United Arab Emirates United Kingdom Planned...
-
Page 16: Fcc Statement
RBG-1000C User Manual v0.1 - DRAFT 5.2 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 17: Ce Statement
5.6 Non-modification Warning Statement Changes or modifications to this equipment that are not expressly approved by Rigado could void the user's authority to operate the equipment. 5.7 Product Insert – Compliance Information The following images show the regulatory insert provided within the product packaging. - Page 18 RBG-1000C User Manual v0.1 - DRAFT Figure 4 Certification Insert (back)
